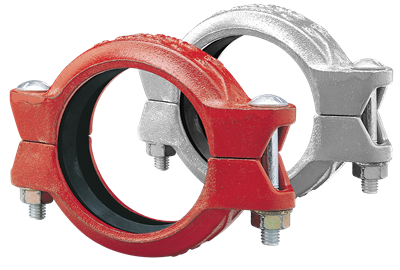

VSH Shurjoint rigid coupling (tongue & groove design) (2 x groove), EPDM pre-lube gasket

group: K9E-A

K9E-A is the designation for model K9 with a pre-lube Grade E-A EPDM gasket. The VSH Shurjoint Model K9 is a T&G (tongue & groove) design coupling for moderate pressure applications where rigidity is required including valve connections, mechanical rooms, fire mains and long straight runs. The built-in teeth and T&G mechanism firmly grasp the pipe ends to eliminate undesired flex. Support and hanging requirements correspond to ANSI B31.1, B31.9 and NFPA 13.
read more
read less

applications

sprinkler

sprinkler

dry fire main

dry fire main

segments

residential

residential

fire protection

fire protection

datacenters

datacenters

commercial building

commercial building

industry

industry

approvals

CNBOP

CNBOP

FM

FM

LPCB

LPCB

QB (CSTBat)

QB (CSTBat)

TSU

TSU

UL

UL

ULc

ULc

VdS

VdS

item

size

dimensions

weight

packaging

gtin

size

42.4 (DN32) red ISO

dimensions

44x110x65

weight

0.6 kg

packaging

-

gtin

-

size

42.4 (DN32) galvanized ISO

dimensions

44x110x65

weight

0.6 kg

packaging

-

gtin

-

size

48.3 (DN40) red ISO

dimensions

44x113x71

weight

0.6 kg

packaging

-

gtin

-

size

48.3 (DN40) galvanized ISO

dimensions

44x113x71

weight

0.6 kg

packaging

-

gtin

-

size

60.3 (DN50) red ISO

dimensions

44x124x83

weight

0.7 kg

packaging

-

gtin

-

size

60.3 (DN50) galvanized ISO

dimensions

44x124x83

weight

0.7 kg

packaging

-

gtin

-

size

73 (DN65) red ISO

dimensions

44x137x98

weight

0.8 kg

packaging

-

gtin

-

size

73 (DN65) galvanized ISO

dimensions

44x137x98

weight

0.8 kg

packaging

-

gtin

-

size

76.1 (DN65) red ISO

dimensions

44x140x102

weight

0.8 kg

packaging

-

gtin

-

size

76.1 (DN65) galvanized ISO

dimensions

44x140x102

weight

0.8 kg

packaging

-

gtin

-

size

88.9 (DN80) red ISO

dimensions

44x151x114

weight

1.2 kg

packaging

-

gtin

-

size

88.9 (DN80) galvanized ISO

dimensions

44x151x114

weight

1.2 kg

packaging

-

gtin

-

size

114.3 (DN100) red ISO

dimensions

50x190x143

weight

1.7 kg

packaging

-

gtin

-

size

114.3 (DN100) galvanized ISO

dimensions

50x190x143

weight

1.7 kg

packaging

-

gtin

-

size

168.3 (DN150) red ISO

dimensions

53x255x200

weight

2.7 kg

packaging

-

gtin

-

size

168.3 (DN150) galvanized ISO

dimensions

53x255x200

weight

2.7 kg

packaging

-

gtin

-

size

219.1 (DN200) red ISO

dimensions

62x334x258

weight

4.4 kg

packaging

-

gtin

-

size

219.1 (DN200) galvanized ISO

dimensions

62x334x258

weight

4.4 kg

packaging

-

gtin

-

item

size

d1

DN1

l1

d2

DN2

l2

size

42.4 (DN32) red ISO

d1

42.4

DN1

DN32

l1

22

d2

42.4

DN2

DN32

l2

22

size

42.4 (DN32) galvanized ISO

d1

42.4

DN1

DN32

l1

22

d2

42.4

DN2

DN32

l2

22

size

48.3 (DN40) red ISO

d1

48.3

DN1

DN40

l1

22

d2

48.3

DN2

DN40

l2

22

size

48.3 (DN40) galvanized ISO

d1

48.3

DN1

DN40

l1

22

d2

48.3

DN2

DN40

l2

22

size

60.3 (DN50) red ISO

d1

60.3

DN1

DN50

l1

22

d2

60.3

DN2

DN50

l2

22

size

60.3 (DN50) galvanized ISO

d1

60.3

DN1

DN50

l1

22

d2

60.3

DN2

DN50

l2

22

size

73 (DN65) red ISO

d1

73.0

DN1

DN65

l1

22

d2

73.0

DN2

DN65

l2

22

size

73 (DN65) galvanized ISO

d1

73.0

DN1

DN65

l1

22

d2

73.0

DN2

DN65

l2

22

size

76.1 (DN65) red ISO

d1

76.1

DN1

DN65

l1

22

d2

76.1

DN2

DN65

l2

22

size

76.1 (DN65) galvanized ISO

d1

76.1

DN1

DN65

l1

22

d2

76.1

DN2

DN65

l2

22

size

88.9 (DN80) red ISO

d1

88.9

DN1

DN80

l1

22

d2

88.9

DN2

DN80

l2

22

size

88.9 (DN80) galvanized ISO

d1

88.9

DN1

DN80

l1

22

d2

88.9

DN2

DN80

l2

22

size

114.3 (DN100) red ISO

d1

114.3

DN1

DN100

l1

25

d2

114.3

DN2

DN100

l2

25

size

114.3 (DN100) galvanized ISO

d1

114.3

DN1

DN100

l1

25

d2

114.3

DN2

DN100

l2

25

size

168.3 (DN150) red ISO

d1

168.3

DN1

DN150

l1

27

d2

168.3

DN2

DN150

l2

27

size

168.3 (DN150) galvanized ISO

d1

168.3

DN1

DN150

l1

27

d2

168.3

DN2

DN150

l2

27

size

219.1 (DN200) red ISO

d1

219.1

DN1

DN200

l1

31

d2

219.1

DN2

DN200

l2

31

size

219.1 (DN200) galvanized ISO

d1

219.1

DN1

DN200

l1

31

d2

219.1

DN2

DN200

l2

31

technical drawing for product

characteristics

color

silver, red

materials

cast iron (ASTM A536 65-45-12)

finishing

hot dip galvanized, varnished

shape

straight

connection type

groove (coupling)

sealing

EPDM

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

country of origin

Taiwan

brand

VSH

series

Shurjoint

type

K9E-A

technical

max operating pressure liquid

value depends on the item view items

max medium temperature

38 °C

image for K9-Combi

image | png

K9-Combi

certifications | pdf

VSH Shurjoint CSTBat

image for Diagram

diagram | png

Diagram

submittal sheet | pdf

Datasheet

installation- & maintenance document | pdf

VSH Shurjoint Installation Handbook

label

value

label

Material connection 1

value

Cast iron

label

Material quality connection 1

value

ASTM A536 Grade 65-45-12

label

Material connection 2

value

Cast iron

label

Material quality connection 2

value

ASTM A536 Grade 65-45-12

label

Shape

value

Straight

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Ribbing groove (groove coupling)

label

Connection 2

value

Ribbing groove (groove coupling)

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

With buffer stud

value

No

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

Yes

label

LPCB quality mark

value

Yes

label

ULC quality mark

value

Yes

label

UL quality mark

value

Yes

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
