VSH Shurjoint rigid coupling (2 x groove), EPDM, GapSeal gasket

group: Z05E_GS

Z05E_GS is the designation for model Z05 with a GapSeal Grade E EPDM gasket. The VSH Shurjoint Model Z05 is an angle-pad design rigid coupling for moderate pressure piping services including fire mains, long straight runs and valve connections. The angle-pad design allows the coupling housings to slide along the bolt pads when tightened. The result is an offset clamping action which provides a rigid joint which resists so called ‘snaking’ of a long straight run. Support and hanging requirements correspond to ANSI B31.1, B31.9 and NFPA 13. With the removal of only one bolt you can make a fast and easy "swing-over” installation.
read more
read less

applications

heating

heating

cooling

cooling

compressed air

compressed air

sprinkler

sprinkler

dry fire main

dry fire main

vacuum

vacuum

segments

residential

residential

fire protection

fire protection

datacenters

datacenters

commercial building

commercial building

industry

industry

approvals

CRN

CRN

FM

FM

LPCB

LPCB

QB (CSTBat)

QB (CSTBat)

VdS

VdS

item

size

d1

DN1

l1

z1

d2

DN2

l2

z2

size

42.4 (DN32) orange UNC

d1

42.2

DN1

DN32

l1

23

z1

1

d2

42.2

DN2

DN32

l2

23

z2

1

size

48.3 (DN40) orange UNC

d1

48.3

DN1

DN40

l1

23

z1

1

d2

48.3

DN2

DN40

l2

23

z2

1

size

60.3 (DN50) orange UNC

d1

60.3

DN1

DN50

l1

24

z1

1

d2

60.3

DN2

DN50

l2

24

z2

1

size

73 (DN65) orange UNC

d1

73.0

DN1

DN65

l1

24

z1

1

d2

73.0

DN2

DN65

l2

24

z2

1

size

88.9 (DN80) orange UNC

d1

88.9

DN1

DN80

l1

24

z1

1

d2

88.9

DN2

DN80

l2

24

z2

1

size

114.3 (DN100) orange UNC

d1

114.3

DN1

DN100

l1

27

z1

2

d2

114.3

DN2

DN100

l2

27

z2

2

size

141.3 (DN125) orange UNC

d1

141.3

DN1

DN125

l1

27

z1

2

d2

141.3

DN2

DN125

l2

27

z2

2

size

168.3 (DN150) orange UNC

d1

168.3

DN1

DN150

l1

27

z1

2

d2

168.3

DN2

DN150

l2

27

z2

2

size

219.1 (DN200) orange UNC

d1

219.1

DN1

DN200

l1

32

z1

2

d2

219.1

DN2

DN200

l2

32

z2

2

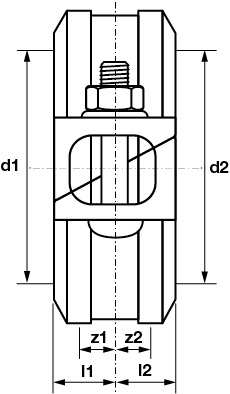

technical drawing for product

characteristics

color

orange

materials

cast iron (ASTM A536 65-45-12)

finishing

varnished

shape

straight (0º)

connection type

groove (coupling)

sealing

EPDM

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

country of origin

Taiwan

brand

VSH

series

Shurjoint

type

Z05E_GS

technical

max operating pressure liquid

value depends on the item view items

min. medium temperature

-34 °C

max medium temperature

110 °C

certifications | pdf

CRN - Pipe Fittings

certifications | pdf

FM

certifications | pdf

LPCB

link to sheet | pdf

MSDS_Shurjoint_Orange_paint

certifications | pdf

VSH Shurjoint CSTBat

certifications | pdf

VdS

image for Z05

image | png

Z05

image for Z05-Combi

image | png

Z05-Combi

image for Diagram

diagram | png

Diagram

submittal sheet | pdf

Datasheet

installation- & maintenance document | pdf

VSH Shurjoint Installation Handbook

label

value

label

Material connection 1

value

Cast iron

label

Surface protection connection 1

value

Lacquered

label

Material connection 2

value

Cast iron

label

Surface protection connection 2

value

Lacquered

label

Shape

value

Straight

label

Model

value

2-part

label

Bend angle

value

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Ribbing groove (groove coupling)

label

Connection 2

value

Ribbing groove (groove coupling)

label

Main colour fitting

value

Orange

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

With buffer stud

value

No

label

Medium temperature (continuous)

value

-34°C - 110°C

label

Medium temperature (continuous) (imperial)

value

-29.2°F - 230°F

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

Yes

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
