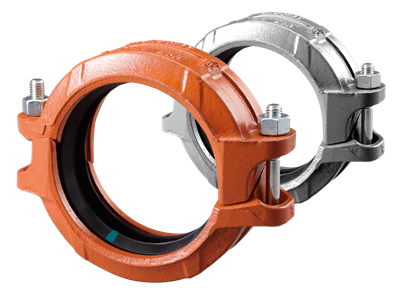

VSH Shurjoint rigid coupling FF 88.9 orange UNC

VSH Shurjoint rigid coupling FF 88.9 orange UNC

10Z050030006

type Z05E_GS

Z05E_GS is the designation for model Z05 with a GapSeal Grade E EPDM gasket. The VSH Shurjoint Model Z05 is an angle-pad design rigid coupling for moderate pressure piping services including fire mains, long straight runs and valve connections. The angle-pad design allows the coupling housings to slide along the bolt pads when tightened. The result is an offset clamping action which provides a rigid joint which resists so called ‘snaking’ of a long straight run. Support and hanging requirements correspond to ANSI B31.1, B31.9 and NFPA 13. With the removal of only one bolt you can make a fast and easy "swing-over” installation.

applications

heating cooling compressed air sprinkler dry fire main vacuum

solutions

building installations fire protection industry

approvals

CRN FM LPCB QB (CSTBat) VdS

characteristics

color orange
materials cast iron (ASTM A536 65-45-12)
finishing varnished
manufacturer Shurjoint
shape straight (0º)
connection type groove (coupling)
sealing EPDM

product info

item VSH Shurjoint rigid coupling FF 88.9 orange UNC
item number 10Z050030006
product number 10Z050030006
item group Z05E_GS - VSH Shurjoint rigid coupling (2 x groove), EPDM, GapSeal gasket
weight 1.2 kg
dimensions 48x150x113

general

product group fittings (demountable)
ETIM class EC003024 Fitting with 2 connections
country of origin Taiwan
brand VSH
series Shurjoint
type Z05E_GS

technical

max operating pressure liquid 35 bar
min. medium temperature -34 °C
max medium temperature 110 °C

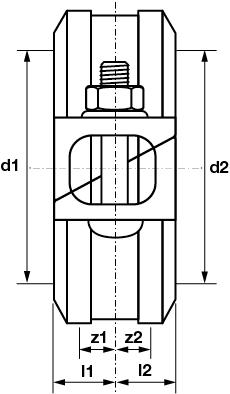

label value
d1 88.9
DN1 DN80
l1 24
z1 1
d2 88.9
DN2 DN80
l2 24
z2 1
see above for the diagram with these dimensions.
label value
ETIM class EC003024 Fitting with 2 connections
Material connection 1 Cast iron
Surface protection connection 1 Lacquered
Material connection 2 Cast iron
Surface protection connection 2 Lacquered
Shape Straight
Model 2-part
Bend angle
Reducing No
Eccentric No
System-specific No
Nominal diameter connection 1 DN 80
Outer pipe diameter connection 1 88.9mm
Outer pipe diameter connection 1 (imperial) 3.5"
Connection 1 Ribbing groove (groove coupling)
Nominal diameter connection 2 DN 80
Outer pipe diameter connection 2 88.9mm
Outer pipe diameter connection 2 (imperial) 3.5"
Connection 2 Ribbing groove (groove coupling)
Main colour fitting Orange
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With buffer stud No
Length 48mm
Length of connection 1 24mm
Length of connection 1 (imperial) 0.94"
Working length connection 1 0.85mm
Working length connection 1 (imperial) 0.03"
Length of connection 2 24mm
Length of connection 2 (imperial) 0.94"
Working length connection 2 0.85mm
Working length connection 2 (imperial) 0.03"
Medium temperature (continuous) -34°C - 110°C
Medium temperature (continuous) (imperial) -29.2°F - 230°F
Max. operating pressure at 20 °C 35bar
Max. operating pressure at 20 °C (imperial) 507.63psi
With sealing rings/gaskets No
Capped No
With connection indicator No
With drain valve No
With de-aerator No
FM quality mark Yes
LPCB quality mark Yes
ULC quality mark No
UL quality mark No
VdS quality mark Yes
DVGW quality mark for gas No
DVGW quality mark for water No
KIWA certified No
Gastec QA mark No
KOMO certified No
