VSH Shurjoint hex bushing

VSH Shurjoint hex bushing

827

VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality.

  • VSH Shurjoint can be perfectly combined with other VSH systems such as VSH XPress, VSH SudoPress and VSH PowerPress
  • the 'Aalberts integrated piping systems' range covers a fully integrated system from 6 mm to 104 ”

approvals

CRN FM UL ULc
assortment
code size weight dimensions packaging gtin
108271005001 1 x1/2 NPT black 0.09 kg 27x33x33 mm
108271005002 1 x1/2 BSPT black 0.09 kg 27x33x33 mm
108271005004 1 x1/2 BSPT galvanized 0.09 kg 27x33x33 mm
108271007001 1 x 3/4 NPT black 0.08 kg 27x33x33 mm
108271007002 1 x 3/4 BSPT black 0.08 kg 27x33x33 mm
108271210001 1 1/4 x 1 NPT black 0.13 kg 30x42x42 mm
108271210002 1 1/4 x 1 BSPT black 0.13 kg 30x42x42 mm
108271510001 1 1/2 x 1 NPT black 0.24 kg 32x48x48 mm
108271510002 1 1/2 x 1 BSPT black 0.24 kg 32x48x48 mm
108271512001 1 1/2 x 1 1/4 NPT black 0.17 kg 32x48x48 mm
108271512002 1 1/2 x 1 1/4 BSPT black 0.17 kg 32x48x48 mm
108272010001 2 x 1 NPT black 0.29 kg 34x60x60 mm
108272010002 2 x 1 BSPT black 0.29 kg 34x60x60 mm
108272010004 2 x 1 BSPT galvanized 0.29 kg 34x60x60 mm
108272012001 2 x 1 1/4 NPT black 0.34 kg 34x60x60 mm
108272012002 2 x 1 1/4 BSPT black 0.34 kg 34x60x60 mm
108272012004 2 x 1 1/4 BSPT galvanized 0.34 kg 34x60x60 mm
108272015001 2 x 1 1/2 NPT black 0.29 kg 34x60x60 mm
108272015002 2 x 1 1/2 BSPT black 0.29 kg 34x60x60 mm
108272015004 2 x 1 1/2 BSPT galvanized 0.29 kg 34x60x60 mm
dimensions
art. No size d1 DN1 l1 d2 DN2
108271005001 1 x1/2 NPT black 33.4 DN25 27 21.3 DN15
108271005002 1 x1/2 BSPT black 33.4 DN25 27 21.3 DN15
108271005004 1 x1/2 BSPT galvanized 33.4 DN25 27 21.3 DN15
108271007001 1 x 3/4 NPT black 33.4 DN25 27 26.7 DN20
108271007002 1 x 3/4 BSPT black 33.4 DN25 27 26.7 DN20
108271210001 1 1/4 x 1 NPT black 42.2 DN32 30 33.4 DN25
108271210002 1 1/4 x 1 BSPT black 42.2 DN32 30 33.4 DN25
108271510001 1 1/2 x 1 NPT black 48.3 DN40 32 33.4 DN25
108271510002 1 1/2 x 1 BSPT black 48.3 DN40 32 33.4 DN25
108271512001 1 1/2 x 1 1/4 NPT black 48.3 DN40 32 42.2 DN32
108271512002 1 1/2 x 1 1/4 BSPT black 48.3 DN40 32 42.2 DN32
108272010001 2 x 1 NPT black 60.3 DN50 34 33.4 DN25
108272010002 2 x 1 BSPT black 60.3 DN50 34 33.4 DN25
108272010004 2 x 1 BSPT galvanized 60.3 DN50 34 33.4 DN25
108272012001 2 x 1 1/4 NPT black 60.3 DN50 34 42.2 DN32
108272012002 2 x 1 1/4 BSPT black 60.3 DN50 34 42.2 DN32
108272012004 2 x 1 1/4 BSPT galvanized 60.3 DN50 34 42.2 DN32
108272015001 2 x 1 1/2 NPT black 60.3 DN50 34 48.3 DN40
108272015002 2 x 1 1/2 BSPT black 60.3 DN50 34 48.3 DN40
108272015004 2 x 1 1/2 BSPT galvanized 60.3 DN50 34 48.3 DN40

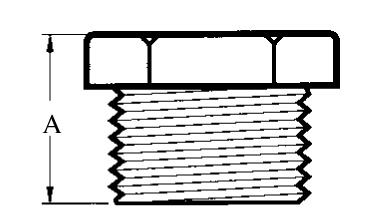

see above for the diagram with these dimensions.
characteristics

characteristics

color silver, black
materials cast iron (ASTM A536 65-45-12)
finishing galvanised, varnished
manufacturer Shurjoint
general

general

product group fittings
country of origin Taiwan
brand VSH
series Shurjoint Threaded
type 827
