VSH Shurjoint Hex Bushing 1" x 1/2" BSPT black

VSH Shurjoint Hex Bushing 1" x 1/2" BSPT black


type 827

VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality.

  • VSH Shurjoint can be perfectly combined with other VSH systems such as VSH XPress, VSH SudoPress and VSH PowerPress
  • the 'Aalberts integrated piping systems' range covers a fully integrated system from 6 mm to 104 ”




color black
materials cast iron (ASTM A536 65-45-12)
finishing varnished
manufacturer Shurjoint
connection type R - male thread gas conical (BSPT), Rc - female thread gas conical (BSPT)

product info

item VSH Shurjoint hex bushing 1" x1/2" BSPT black
item number 108271005002
product number 108271005002
item group 827 - VSH Shurjoint hex bushing
size 1 x1/2 BSPT black
weight 0.09 kg
dimensions 27x33x33 mm


product group fittings
country of origin Taiwan
brand VSH
series Shurjoint Threaded
type 827
label value
d1 33.4
DN1 DN25
l1 27
d2 21.3
DN2 DN15

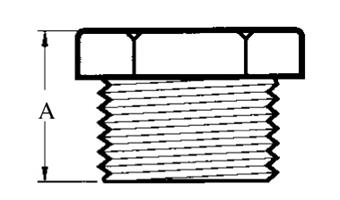

see above for the diagram with these dimensions.
label value
