group: 71

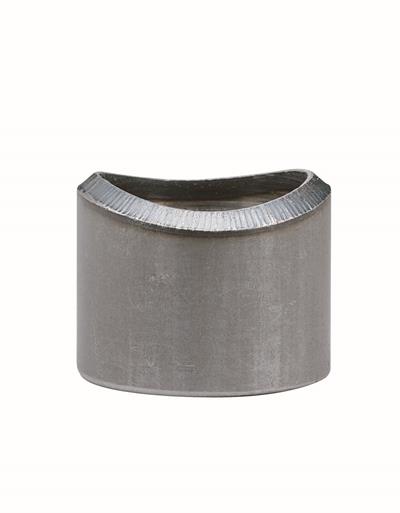

VSH Shurjoint Model 71 Female Threaded Outlet Fittings are designed to provide a threaded outlet at any desired location along the header. Made of highly weldable SAE J403 forged steel the Model 71 is designed for single pass welding. The Model 71 features a counter bore and a 1.6 mm land around the full circumference of the mouth, which helps ensure full penetration welds and minimize the likelihood of any burn through or distortion that might be caused by excessive heat. The Model 71 is UL / cUL listed and FM approved for services up to 300 psi (20 bar).

read more

read less

if the download did not start automatically, click here

PDF generation failed, please try again later

no applications available

no segments available

FM

show all

show less

code

size

dimensions

weight

packaging

gtin

code

size

-

dimensions

29x29x25 mm

weight

0.05 kg

packaging

-

gtin

-

code

size

-

dimensions

29x29x25 mm

weight

0.05 kg

packaging

-

gtin

-

code

size

-

dimensions

35x35x25 mm

weight

0.09 kg

packaging

-

gtin

-

code

size

-

dimensions

40x40x29 mm

weight

0.11 kg

packaging

-

gtin

-

code

size

-

dimensions

40x40x29 mm

weight

0.11 kg

packaging

-

gtin

-

code

size

-

dimensions

40x40x29 mm

weight

0.11 kg

packaging

-

gtin

-

code

size

-

dimensions

40x40x29 mm

weight

0.11 kg

packaging

-

gtin

-

code

size

-

dimensions

40x40x29 mm

weight

0.11 kg

packaging

-

gtin

-

code

size

-

dimensions

49x49x32 mm

weight

0.19 kg

packaging

-

gtin

-

code

size

-

dimensions

49x49x32 mm

weight

0.18 kg

packaging

-

gtin

-

code

size

-

dimensions

55x55x32 mm

weight

0.22 kg

packaging

-

gtin

-

code

size

-

dimensions

55x55x32 mm

weight

0.22 kg

packaging

-

gtin

-

code

size

-

dimensions

55x55x32 mm

weight

0.39 kg

packaging

-

gtin

-

code

size

-

dimensions

67x67x38 mm

weight

0.38 kg

packaging

-

gtin

-

code

size

-

dimensions

79x79x45 mm

weight

0.45 kg

packaging

-

gtin

-

code

size

code

size

-

code

size

-

code

size

-

code

size

-

code

size

-

code

size

-

code

size

-

code

size

-

code

size

-

code

size

-

code

size

-

code

size

-

code

size

-

code

size

-

code

size

-

product info

item

VSH Shurjoint female threaded outlet fitting

item number with GTIN

71

manufacturer

Shurjoint

weight

0.45 kg

dimensions

79x79x45 mm

characteristics

color

silver

materials

steel (ASTM A53 Grade B)

finishing

none, hot dip galvanized

connection type

weld, Rp - female thread cylindrical (BSPT)

general

product group

fittingen (demountable)

ETIM class

EC003024 Fitting with 2 connections

country of origin

Taiwan

brand

VSH

series

Shurjoint

type

71

image for 71

image | jpg

71

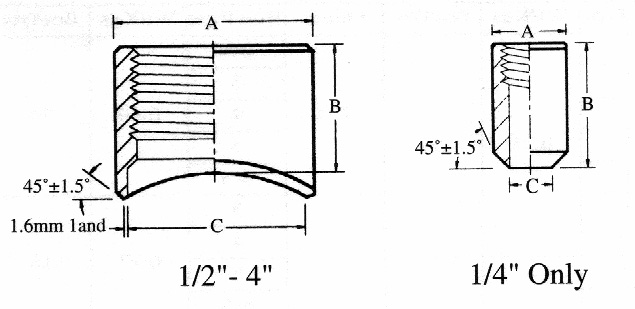

image for Diagram
