group: 71
item: 1071N1220001

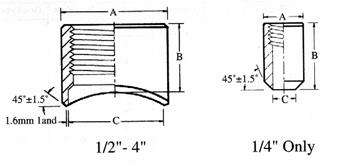

VSH Shurjoint Model 71 Female Threaded Outlet Fittings are designed to provide a threaded outlet at any desired location along the header. Made of highly weldable SAE J403 forged steel the Model 71 is designed for single pass welding. The Model 71 features a counter bore and a 1.6 mm land around the full circumference of the mouth, which helps ensure full penetration welds and minimize the likelihood of any burn through or distortion that might be caused by excessive heat. The Model 71 is UL / cUL listed and FM approved for services up to 300 psi (20 bar).
no applications available
no segments available
FM
color
silver
materials
steel (ASTM A53 Grade B)
finishing
none
manufacturer
Shurjoint
connection type
weld, Rp - female thread cylindrical (BSPT)
product group
fittings
ETIM class
EC003024 Fitting with 2 connections
country of origin
Taiwan
brand
VSH
series
Shurjoint
type
71
item
1 1/4" x 2" - 2 1/2" #71 Forged Steel Outlet Fitting NPT
item number
1071N1220001
product number
1071N1220001
item group
71 - VSH Shurjoint female threaded outlet fitting
weight
0.19 kg
dimensions
49x49x32 mm
label
value
label
ETIM class
label
Material connection 1
value
Steel
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Steel
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
Yes
label
Connection 1
value
Welding connection
label
Connection 2
value
Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)
label
Main colour fitting
value
Grey
label
Length
value
48.5mm
label
Capped
value
No
label
With connection indicator
value
No
label
FM quality mark
value
Yes
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
