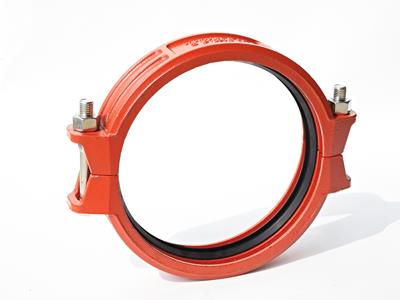

VSH Shurjoint ring joint coupling (2 x ring joint), EPDM gasket

Product Image for VSH Shurjoint ring joint coupling (2 x ring joint), EPDM gasket
Product Image for VSH Shurjoint ring joint coupling (2 x ring joint), EPDM gasket

group: R-88E

The Shurjoint Model R-88 Ring Joint Coupling is an ideal pipe joining method when pipe is difficult to groove or when grooving is not the preferred joining method. Available in sizes 8” to 96” the R-88 offers ease of use and excellent performance.The Shurjoint Model R-88 Ring Joint Coupling is supplied with a pair of factory supplied weld rings. For installation weld a ring on each pipe end to be connected, next mount the rubber gasket over the pipe ends, place coupling segments over the gasket and fasten the bolts and nuts.The Shurjoint R-88 Ring Joint Coupling is considered a shouldered coupling with the factory supplied weld rings serving as the joint shoulders. The R-88’s performance standards meet and or exceed the requirements of ASTM F1476 and AWWA C606. The factory supplied weld rings offer a much more economical and installation friendly alternative to that of traditional shoulder rings, including Type A, B, C, D, E, and G rings.The R-88 coupling can also be used on stainless steel pipe with optional weld rings available in compatible stainless steel grades. Check with Shurjoint for details and availability.
read more
read less

applications

no applications available

segments

no segments available

approvals

no approvals available

item

size

dimensions

weight

packaging

gtin

item

10r880080002

size

216.3 (DN200) orange ISO

dimensions

79x327x253

weight

7.6 kg

packaging

-

gtin

-

item

10r880085002

size

219.1 (DN200) orange UNC

dimensions

79x330x256 mm

weight

7.6 kg

packaging

-

gtin

-

item

10r8800a0002

size

267.4 (DN250) orange ISO

dimensions

83x380x306

weight

10 kg

packaging

-

gtin

-

item

10r8800a1002

size

273 (DN250) orange UNC

dimensions

83x386x312

weight

10.1 kg

packaging

-

gtin

-

item

10r8800a2002

size

318.5 (DN300) orange ISO

dimensions

86x450x369

weight

14.8 kg

packaging

-

gtin

-

item

10r8800a3002

size

323.9 (DN300) orange

dimensions

86x455x374

weight

14 kg

packaging

-

gtin

-

item

10r8800b8002

size

711.2 (DN700) orange

dimensions

170x901x806

weight

101 kg

packaging

-

gtin

-

item

10r8800c0002

size

762 (DN750) orange

dimensions

170x955x857 mm

weight

99.52 kg

packaging

-

gtin

-

item

10r8800c2002

size

812.8 (DN800) orange

dimensions

170x1002x908

weight

102.2 kg

packaging

-

gtin

-

item

10r8800c4002

size

863.4 (DN850) orange

dimensions

200x1054x959

weight

115 kg

packaging

-

gtin

-

item

10r8800c6002

size

914.4 (DN900) orange

dimensions

200x1103x1010 mm

weight

111.58 kg

packaging

-

gtin

-

item

10r8800c8002

size

965.2 (DN950) orange

dimensions

200x1156x1060

weight

125 kg

packaging

-

gtin

-

item

10r8800d0002

size

1016 (DN1000) orange

dimensions

200x1229x1135

weight

141 kg

packaging

-

gtin

-

item

10r8800d2002

size

1066.8 (DN1050) orange

dimensions

200x1288x1186

weight

148.6 kg

packaging

-

gtin

-

item

10r8800d4002

size

1117.6 (DN1100) orange

dimensions

200x1337x1236

weight

156 kg

packaging

-

gtin

-

item

10r8800d8002

size

1219.2 (DN1200) orange

dimensions

200x1420x1338 mm

weight

205.3 kg

packaging

-

gtin

-

item

10r8800e2002

size

1320.8 (DN1300) orange

dimensions

200x1541x1555

weight

206 kg

packaging

-

gtin

-

item

10r8800e4002

size

1371.6 (DN1350) orange

dimensions

200x1588x1607

weight

214.6 kg

packaging

-

gtin

-

item

10r8800e6002

size

1422.4 (DN1400) orange

dimensions

200x1643x1660

weight

222 kg

packaging

-

gtin

-

item

10r8800f0002

size

1524 (DN1500) orange

dimensions

200x1748x1762

weight

244.2 kg

packaging

-

gtin

-

item

10r8800f6002

size

1676.4 (DN1650) orange

dimensions

216x1924x1932

weight

278.4 kg

packaging

-

gtin

-

item

10r8800f8002

size

1727.2 (DN1700) orange

dimensions

216x1982x1994

weight

357 kg

packaging

-

gtin

-

item

10r8800g2002

size

1828.8 (DN1800) orange

dimensions

216x2090x2095 mm

weight

335.3 kg

packaging

-

gtin

-

item

10r8800h4002

size

2133.6 (DN2100) orange

dimensions

216x2383x2406

weight

354.7 kg

packaging

-

gtin

-

item

10r8800i6002

size

2438.4 (DN2400) orange

dimensions

216x2706x2711

weight

374.2 kg

packaging

-

gtin

-

item

size

d1

DN1

l1

d2

DN2

l2

item

10r880080002

size

216.3 (DN200) orange ISO

d1

216.3

DN1

DN200

l1

40

d2

216.3

DN2

DN200

l2

40

item

10r880085002

size

219.1 (DN200) orange UNC

d1

219.1

DN1

DN200

l1

40

d2

219.1

DN2

DN200

l2

40

item

10r8800a0002

size

267.4 (DN250) orange ISO

d1

267.4

DN1

DN250

l1

42

d2

267.4

DN2

DN250

l2

42

item

10r8800a1002

size

273 (DN250) orange UNC

d1

273.0

DN1

DN250

l1

42

d2

273.0

DN2

DN250

l2

42

item

10r8800a2002

size

318.5 (DN300) orange ISO

d1

318.5

DN1

DN300

l1

43

d2

318.5

DN2

DN300

l2

43

item

10r8800a3002

size

323.9 (DN300) orange

d1

323.9

DN1

DN300

l1

43

d2

323.9

DN2

DN300

l2

43

item

10r8800b8002

size

711.2 (DN700) orange

d1

711.2

DN1

DN700

l1

85

d2

711.2

DN2

DN700

l2

85

item

10r8800c0002

size

762 (DN750) orange

d1

762.0

DN1

DN750

l1

85

d2

762.0

DN2

DN750

l2

85

item

10r8800c2002

size

812.8 (DN800) orange

d1

812.8

DN1

DN800

l1

85

d2

812.8

DN2

DN800

l2

85

item

10r8800c4002

size

863.4 (DN850) orange

d1

863.4

DN1

DN850

l1

100

d2

863.4

DN2

DN850

l2

100

item

10r8800c6002

size

914.4 (DN900) orange

d1

914.4

DN1

DN900

l1

100

d2

914.4

DN2

DN900

l2

100

item

10r8800c8002

size

965.2 (DN950) orange

d1

965.2

DN1

DN950

l1

100

d2

965.2

DN2

DN950

l2

100

item

10r8800d0002

size

1016 (DN1000) orange

d1

1016.0

DN1

DN1000

l1

100

d2

1016.0

DN2

DN1000

l2

100

item

10r8800d2002

size

1066.8 (DN1050) orange

d1

1066.8

DN1

DN1050

l1

100

d2

1066.8

DN2

DN1050

l2

100

item

10r8800d4002

size

1117.6 (DN1100) orange

d1

1117.6

DN1

DN1050

l1

100

d2

1117.6

DN2

DN1050

l2

100

item

10r8800d8002

size

1219.2 (DN1200) orange

d1

1219.2

DN1

DN1200

l1

100

d2

1219.2

DN2

DN1200

l2

100

item

10r8800e2002

size

1320.8 (DN1300) orange

d1

1320.8

DN1

l1

100

d2

1320.8

DN2

l2

100

item

10r8800e4002

size

1371.6 (DN1350) orange

d1

1371.6

DN1

l1

100

d2

1371.6

DN2

l2

100

item

10r8800e6002

size

1422.4 (DN1400) orange

d1

1422.4

DN1

DN1400

l1

100

d2

1422.4

DN2

DN1400

l2

100

item

10r8800f0002

size

1524 (DN1500) orange

d1

1524.0

DN1

l1

100

d2

1524.0

DN2

l2

100

item

10r8800f6002

size

1676.4 (DN1650) orange

d1

1676.4

DN1

l1

108

d2

1676.4

DN2

l2

108

item

10r8800f8002

size

1727.2 (DN1700) orange

d1

1727.2

DN1

l1

108

d2

1727.2

DN2

l2

108

item

10r8800g2002

size

1828.8 (DN1800) orange

d1

1828.8

DN1

DN1800

l1

108

d2

1828.8

DN2

DN1800

l2

108

item

10r8800h4002

size

2133.6 (DN2100) orange

d1

2133.6

DN1

l1

108

d2

2133.6

DN2

l2

108

item

10r8800i6002

size

2438.4 (DN2400) orange

d1

2438.4

DN1

l1

108

d2

2438.4

DN2

l2

108

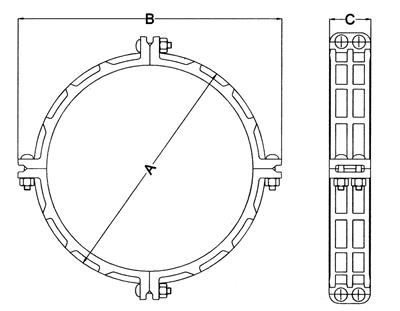

technical drawing for product

characteristics

color

orange

materials

cast iron (ASTM A536 65-45-12)

finishing

varnished

connection type

groove (coupling)

sealing

EPDM

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

country of origin

Taiwan

brand

VSH

series

Shurjoint Ring Joint

type

R-88E

technical

min. medium temperature

-34 °C

max medium temperature

110 °C

link to sheet | pdf

MSDS_Shurjoint_Orange_paint

image for R-88

image | jpg

R-88

image for Diagram

diagram | jpg

Diagram

submittal sheet | pdf

Datasheet

label

value

label

ETIM class

value

EC003024 Fitting with 2 connections

label

Material connection 1

value

Cast iron

label

Surface protection connection 1

value

Lacquered

label

Material connection 2

value

Cast iron

label

Surface protection connection 2

value

Lacquered

label

Shape

value

Straight

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Ribbing groove (groove coupling)

label

Connection 2

value

Ribbing groove (groove coupling)

label

Main colour fitting

value

Orange

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

With buffer stud

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
