item: 10R8800D4002
no applications available
no segments available
no approvals available
label
value
label
d1
value
1117.6
label
DN1
value
DN1050
label
l1
value
100
label
d2
value
1117.6
label
DN2
value
DN1050
label
l2
value
100
color
orange
materials
cast iron (ASTM A536 65-45-12)
finishing
varnished
connection type
groove (coupling)
sealing
EPDM
product group
fittings (demountable)
ETIM class
EC003024 Fitting with 2 connections
country of origin
Taiwan
brand
VSH
series
Shurjoint Ring Joint
type
R-88E
item
VSH Shurjoint Ring Joint coupling 1117.6 (44) orange
item number
10R8800D4002
product number
10R8800D4002
manufacturer
Shurjoint
item group
R-88E - VSH Shurjoint ring joint coupling (2 x ring joint), EPDM gasket
size
1117.6 (DN1100) orange
weight
156 kg

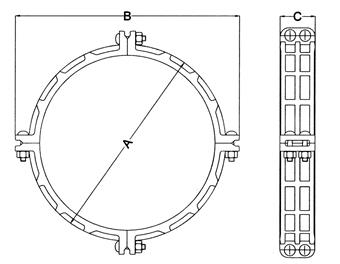

dimensions
200x1337x1236
min. medium temperature
-34 °C
max medium temperature
110 °C
label
value
label
ETIM class
label
Material connection 1
value
Cast iron
label
Surface protection connection 1
value
Lacquered
label
Material connection 2
value
Cast iron
label
Surface protection connection 2
value
Lacquered
label
Shape
value
Straight
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
Yes
label
Outer pipe diameter connection 1
value
1117.6mm
label
Outer pipe diameter connection 1 (imperial)
value
44"
label
Connection 1
value
Ribbing groove (groove coupling)
label
Outer pipe diameter connection 2
value
1117.6mm
label
Outer pipe diameter connection 2 (imperial)
value
44"
label
Connection 2
value
Ribbing groove (groove coupling)
label
Main colour fitting
value
Orange
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
With buffer stud
value
No
label
Length
value
200mm
label
Length of connection 1
value
100mm
label
Length of connection 1 (imperial)
value
3.94"
label
Length of connection 2
value
100mm
label
Length of connection 2 (imperial)
value
3.94"
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
