G28T

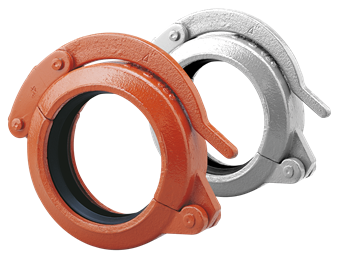

G28T is the designation for model G28 with a Grade T NBR gasket. The VSH Shurjoint Model G28 Hinged Grooved Coupling is designed for quick connect and disconnect services. The housing segments are hinged with a lever handle for easy assembly. The use of the split pin can secure and prevent the accidental opening of the coupling. The Model G28 can be used in a wide variety of applications with standard rolled or cut grooved pipe. Housings 1½”- 4” (DN40-DN100) feature a smooth outer surface, housings 5” - 10” (DN125–DN250) feature a cross-ribbed design for added strength.
Standard gasket: Grade “E” EPDM or Grade “T” Nitrile. Standard surface finish: Black electro-deposition coated.
applications
solutions
| code | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 10G280020006 | 60.3 (DN50) galvanized | 1.13 kg | 47x129x87 mm | carton (14 pce) | |
| 10G280020008 | 60.3 (DN50) black | 1.13 kg | 47x129x87 mm | carton (14 pce) | |
| 10G280025006 | 73 (DN65) galvanized | 1.36 kg | 47x143x100 | ||
| 10G280025008 | 73 (DN65) black | 1.36 kg | 47x143x100 mm | carton (10 pce) | |
| 10G280030008 | 88.9 (DN80) black | 1.69 kg | 47x164x119 mm | carton (3 pce) | |
| 10G280045006 | 114.3 (DN100) galvanized | 2.66 kg | 52x202x152 | ||
| 10G280045008 | 114.3 (DN100) black | 2.66 kg | 52x202x152 mm | bag (1 pce) | |
| 10G280055006 | 141.3 (DN125) galvanized | 4.84 kg | 52x254x179 | ||
| 10G280055008 | 141.3 (DN125) black | 4.87 kg | 52x254x179 mm | bag (1 pce) | |
| 10G280065006 | 168.3 (DN150) galvanized | 5.98 kg | 52x280x206 mm | carton (3 pce) | |
| 10G280065008 | 168.3 (DN150) black | 5.98 kg | 52x280x206 mm | carton (3 pce) | |
| 10G280085008 | 219.1 (DN200) black | 6.85 kg | 62x345x256 mm | bag (1 pce) | |
| 10G2800A1006 | 273 (DN250) galvanized | 16.37 kg | 66x444x322 | ||
| 10G2800A1008 | 273 (DN250) black | 16.37 kg | 66x444x322 |
| art. No | size | d1 | DN1 | l1 | z1 | d2 | DN2 | l2 | z2 |
|---|---|---|---|---|---|---|---|---|---|
| 10G280020006 | 60.3 (DN50) galvanized | 60.3 | DN50 | 24 | 1 | 60.3 | DN50 | 24 | 1 |
| 10G280020008 | 60.3 (DN50) black | 60.3 | DN50 | 24 | 1 | 60.3 | DN50 | 24 | 1 |
| 10G280025006 | 73 (DN65) galvanized | 73.0 | DN65 | 24 | 1 | 73.0 | DN65 | 24 | 1 |
| 10G280025008 | 73 (DN65) black | 73.0 | DN65 | 24 | 1 | 73.0 | DN65 | 24 | 1 |
| 10G280030008 | 88.9 (DN80) black | 88.9 | DN80 | 24 | 1 | 88.9 | DN80 | 24 | 1 |
| 10G280045006 | 114.3 (DN100) galvanized | 114.3 | DN100 | 26 | 2 | 114.3 | DN100 | 26 | 2 |
| 10G280045008 | 114.3 (DN100) black | 114.3 | DN100 | 26 | 2 | 114.3 | DN100 | 26 | 2 |
| 10G280055006 | 141.3 (DN125) galvanized | 141.3 | DN125 | 26 | 2 | 141.3 | DN125 | 26 | 2 |
| 10G280055008 | 141.3 (DN125) black | 141.3 | DN125 | 26 | 2 | 141.3 | DN125 | 26 | 2 |
| 10G280065006 | 168.3 (DN150) galvanized | 168.3 | DN150 | 26 | 2 | 168.3 | DN150 | 26 | 2 |
| 10G280065008 | 168.3 (DN150) black | 168.3 | DN150 | 26 | 2 | 168.3 | DN150 | 26 | 2 |
| 10G280085008 | 219.1 (DN200) black | 219.1 | DN200 | 31 | 2 | 219.1 | DN200 | 31 | 2 |
| 10G2800A1006 | 273 (DN250) galvanized | 273.0 | DN250 | 33 | 2 | 273.0 | DN250 | 33 | 2 |
| 10G2800A1008 | 273 (DN250) black | 273.0 | DN250 | 33 | 2 | 273.0 | DN250 | 33 | 2 |
| color | silver, black, red |
|---|---|
| materials | cast iron (ASTM A536 65-45-12) |
| finishing | galvanised, varnished |
| manufacturer | Shurjoint |
| shape | straight |
| connection type | groove (coupling) |
| sealing | NBR (Nitrile) |
| product group | fittings |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| type | G28T |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Cast iron |
| Material connection 2 | Cast iron |
| Shape | Straight |
| Model | 1-part |
| Reducing | No |
| Eccentric | No |
| System specific | No |
| Connection 1 | Ribbing groove (groove coupling) |
| Connection 2 | Ribbing groove (groove coupling) |
| Material sealing | NBR (nitrile rubber) |
| With buffer stud | No |
| Medium temperature (continuous) | -29°C - 82°C |
| Medium temperature (continuous) (imperial) | -20.2°F - 179.6°F |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
