type G28T

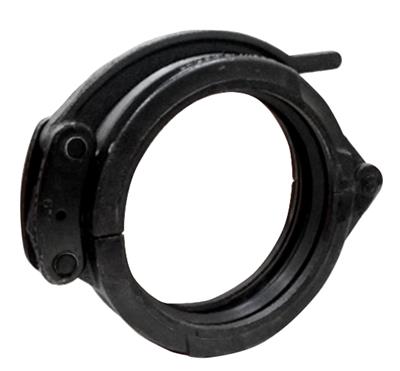

G28T is the designation for model G28 with a Grade T NBR gasket. The VSH Shurjoint Model G28 Hinged Grooved Coupling is designed for quick connect and disconnect services. The housing segments are hinged with a lever handle for easy assembly. The use of the split pin can secure and prevent the accidental opening of the coupling. The Model G28 can be used in a wide variety of applications with standard rolled or cut grooved pipe. Housings 1½”- 4” (DN40-DN100) feature a smooth outer surface, housings 5” - 10” (DN125–DN250) feature a cross-ribbed design for added strength.
Standard gasket: Grade “E” EPDM or Grade “T” Nitrile. Standard surface finish: Black electro-deposition coated.
applications
solutions
| color | black |
|---|---|
| materials | cast iron (ASTM A536 65-45-12) |
| finishing | varnished |
| manufacturer | Shurjoint |
| shape | straight |
| connection type | groove (coupling) |
| sealing | NBR (Nitrile) |
| item | VSH Shurjoint hinged lever coupling FF 114.3 electro-deposit black |
|---|---|
| item number | 10G280045008 |
| product number with GTIN | 10G280045008 (00670750319983) |
| item group | G28T - VSH Shurjoint hinged lever coupling (2 x groove), NBR gasket |
| size | 114.3 (DN100) black |
| weight | 2.66 kg |
| dimensions | 52x202x152 mm |
| packaging | bag (1 pce) |
| product group | fittings |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| intrastat code | 73071910 |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| type | G28T |
| min. medium temperature | -29 °C |
|---|---|
| max medium temperature | 82 °C |
| label | value |
|---|---|
| d1 | 114.3 |
| DN1 | DN100 |
| l1 | 26 |
| z1 | 2 |
| d2 | 114.3 |
| DN2 | DN100 |
| l2 | 26 |
| z2 | 2 |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Cast iron |
| Surface protection connection 1 | Lacquered |
| Material connection 2 | Cast iron |
| Surface protection connection 2 | Lacquered |
| Shape | Straight |
| Model | 1-part |
| Reducing | No |
| Eccentric | No |
| System specific | No |
| Nominal diameter connection 1 | DN 100 |
| Outer pipe diameter connection 1 | 114.3mm |
| Outer pipe diameter connection 1 (imperial) | 4.5" |
| Connection 1 | Ribbing groove (groove coupling) |
| Nominal diameter connection 2 | DN 100 |
| Outer pipe diameter connection 2 | 114.3mm |
| Outer pipe diameter connection 2 (imperial) | 4.5" |
| Connection 2 | Ribbing groove (groove coupling) |
| Main colour fitting | Black |
| Material sealing | NBR (nitrile rubber) |
| With buffer stud | No |
| High tensile strength | Yes |
| Length | 52mm |
| Length of connection 1 | 26mm |
| Length of connection 1 (imperial) | 1.02" |
| Working length connection 1 | 1.6mm |
| Working length connection 1 (imperial) | 0.06" |
| Length of connection 2 | 26mm |
| Length of connection 2 (imperial) | 1.02" |
| Working length connection 2 | 1.6mm |
| Working length connection 2 (imperial) | 0.06" |
| Medium temperature (continuous) | -29°C - 82°C |
| Medium temperature (continuous) (imperial) | -20.2°F - 179.6°F |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
