VSH Shurjoint hinged lever coupling FF 141.3 galvanized

item: 10G280055006

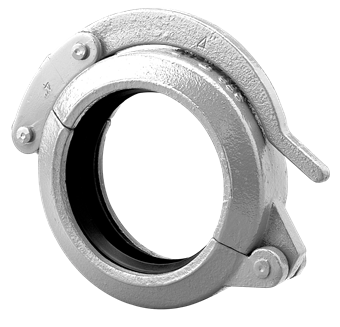

G28T is the designation for model G28 with a Grade T NBR gasket. The VSH Shurjoint Model G28 Hinged Grooved Coupling is designed for quick connect and disconnect services. The housing segments are hinged with a lever handle for easy assembly. The use of the split pin can secure and prevent the accidental opening of the coupling. The Model G28 can be used in a wide variety of applications with standard rolled or cut grooved pipe. Housings 1½”- 4” (DN40-DN100) feature a smooth outer surface, housings 5” - 10” (DN125–DN250) feature a cross-ribbed design for added strength.Standard gasket: Grade “E” EPDM or Grade “T” Nitrile. Standard surface finish: Black electro-deposition coated.
read more
read less

applications

heating

heating

cooling

cooling

compressed air

compressed air

vacuum

vacuum

segments

datacenters

datacenters

commercial building

commercial building

industry

industry

approvals

no approvals available

label

value

label

d1

value

141.3

label

DN1

value

DN125

label

l1

value

26

label

z1

value

2

label

d2

value

141.3

label

DN2

value

DN125

label

l2

value

26

label

z2

value

2

drawing for product

characteristics

color

silver

materials

cast iron (ASTM A536 65-45-12)

finishing

galvanised

shape

straight

connection type

groove (coupling)

sealing

NBR (Nitrile)

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

country of origin

Taiwan

brand

VSH

series

Shurjoint

type

G28T

product info

item

VSH Shurjoint hinged lever coupling FF 141.3 galvanized

item number

10G280055006

product number

10G280055006

manufacturer

Shurjoint

item group

G28T - VSH Shurjoint hinged lever coupling (2 x groove), NBR gasket

size

141.3 (DN125) galvanized

weight

4.84 kg

dimensions

52x254x179

technical

min. medium temperature

-29 °C

max medium temperature

82 °C

image for G28-Combi

image | jpg

G28-Combi

image for Diagram

diagram | jpg

Diagram

submittal sheet | pdf

Datasheet

installation- & maintenance document | pdf

VSH Shurjoint Installation Handbook

label

value

label

Material connection 1

value

Cast iron

label

Surface protection connection 1

value

Galvanic/electrolytic zinc plated

label

Material connection 2

value

Cast iron

label

Surface protection connection 2

value

Galvanic/electrolytic zinc plated

label

Shape

value

Straight

label

Model

value

1-part

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Nominal diameter connection 1

value

DN 125

label

Outer pipe diameter connection 1

value

141.3mm

label

Outer pipe diameter connection 1 (imperial)

value

5.56"

label

Connection 1

value

Ribbing groove (groove coupling)

label

Nominal diameter connection 2

value

DN 125

label

Outer pipe diameter connection 2

value

141.3mm

label

Outer pipe diameter connection 2 (imperial)

value

5.56"

label

Connection 2

value

Ribbing groove (groove coupling)

label

Main colour fitting

value

Grey

label

Material sealing

value

NBR (nitrile rubber)

label

With buffer stud

value

No

label

Length

value

52mm

label

Length of connection 1

value

26mm

label

Length of connection 1 (imperial)

value

1.02"

label

Working length connection 1

value

1.6mm

label

Working length connection 1 (imperial)

value

0.06"

label

Length of connection 2

value

26mm

label

Length of connection 2 (imperial)

value

1.02"

label

Working length connection 2

value

1.6mm

label

Working length connection 2 (imperial)

value

0.06"

label

Medium temperature (continuous)

value

-29°C - 82°C

label

Medium temperature (continuous) (imperial)

value

-20.2°F - 179.6°F

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
