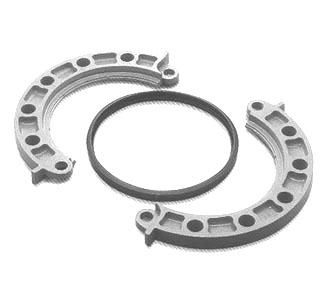

Aalberts IPS Shurjoint

assortment

code	size	weight	dimensions
1SS410020001	60.3 (DN50) 304	2.12 kg	152x152x19 mm
1SS410020002	60.3 (DN50) 316	2.12 kg	152x152x19 mm
1SS410025001	73 (DN65) 304	2.74 kg	178x178x22 mm
1SS410025002	73 (DN65) 316	2.74 kg	178x178x22 mm
1SS410030001	88.9 (DN80) 304	3.07 kg	191x191x24 mm
1SS410030002	88.9 (DN80) 316	3.07 kg	191x191x24 mm
1SS410045001	114.3 (DN100) 304	4.54 kg	229x229x24 mm
1SS410045002	114.3 (DN100) 316	4.54 kg	229x229x24 mm
1SS410065001	168.3 (DN150) 304	5.84 kg	279x279x25 mm
1SS410065002	168.3 (DN150) 316	5.84 kg	279x279x25 mm
1SS410085001	219.1 (DN200) 304	9.2 kg	343x343x29 mm
1SS410085002	219.1 (DN200)316	9.2 kg	343x343x29 mm

dimensions

art. No	size	d1	DN1	l1	d2	DN2	n2	k2	d2-2	D2
1SS410020001	60.3 (DN50) 304	60.3	DN50	19	152.0	DN50	4	120.5	19	152
1SS410020002	60.3 (DN50) 316	60.3	DN50	19	152.0	DN50	4	120.5	19	152
1SS410025001	73 (DN65) 304	73.0	DN65	22	178.0	DN65	4	139.5	19	178
1SS410025002	73 (DN65) 316	73.0	DN65	22	178.0	DN65	4	139.5	19	178
1SS410030001	88.9 (DN80) 304	88.9	DN80	24	191.0	DN80	4	152.5	19	190
1SS410030002	88.9 (DN80) 316	88.9	DN80	24	191.0	DN80	4	152.5	19	190
1SS410045001	114.3 (DN100) 304	114.3	DN100	24	229.0	DN100	8	190.5	19	229
1SS410045002	114.3 (DN100) 316	114.3	DN100	24	229.0	DN100	8	190.5	19	229
1SS410065001	168.3 (DN150) 304	165.3	DN150	25	279.0	DN150	8	241.5	22	279
1SS410065002	168.3 (DN150) 316	165.3	DN150	25	279.0	DN150	8	241.5	22	279
1SS410085001	219.1 (DN200) 304	219.1	DN200	29	343.0	DN200	8	298.5	22	343
1SS410085002	219.1 (DN200)316	219.1	DN200	29	343.0	DN200	8	298.5	22	343

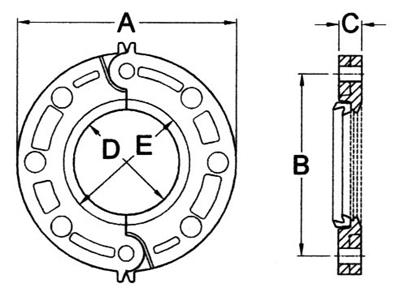

see above for the diagram with these dimensions.

characteristics

color	silver
materials	stainless steel (Stainless steel 304 (1.4301), Stainless steel 316 (1.4401))
finishing	none
manufacturer	Shurjoint
connection type	groove (coupling), flange
sealing	EPDM

general

downloads

ETIM

label	value
ETIM class	EC003024 Fitting with 2 connections
Material connection 1	Stainless steel
Surface protection connection 1	Untreated
Surface treatment connection 1	Untreated
Material connection 2	Stainless steel
Surface protection connection 2	Untreated
Surface treatment connection 2	Untreated
Shape	Straight
Reducing	No
Eccentric	No
System-specific	Yes
Connection 1	Ribbing groove (groove coupling)
Connection 2	Flange
Main colour fitting	Grey
Flange standard	ANSI
Material sealing	Ethylene-propylene diene monomer rubber (EPDM)
With buffer stud	No
With sealing rings/gaskets	No
Capped	No
With connection indicator	No
With drain valve	No
With de-aerator	No
LPCB quality mark	No
VdS quality mark	No
DVGW quality mark for gas	No
DVGW quality mark for water	No
Certified according to NF 545	No
KIWA certified	No
Gastec QA mark	No
KOMO certified	No
