VSH Shurjoint ring joint coupling (2 x ring joint), NBR gasket

Product Image for VSH Shurjoint ring joint coupling (2 x ring joint), NBR gasket
Product Image for VSH Shurjoint ring joint coupling (2 x ring joint), NBR gasket

group: R-88T

The Shurjoint Model R-88 Ring Joint Coupling is an ideal pipe joining method when pipe is difficult to groove or when grooving is not the preferred joining method. Available in sizes 8” to 96” the R-88 offers ease of use and excellent performance.The Shurjoint Model R-88 Ring Joint Coupling is supplied with a pair of factory supplied weld rings. For installation weld a ring on each pipe end to be connected, next mount the rubber gasket over the pipe ends, place coupling segments over the gasket and fasten the bolts and nuts.The Shurjoint R-88 Ring Joint Coupling is considered a shouldered coupling with the factory supplied weld rings serving as the joint shoulders. The R-88’s performance standards meet and or exceed the requirements of ASTM F1476 and AWWA C606. The factory supplied weld rings offer a much more economical and installation friendly alternative to that of traditional shoulder rings, including Type A, B, C, D, E, and G rings.The R-88 coupling can also be used on stainless steel pipe with optional weld rings available in compatible stainless steel grades. Check with Shurjoint for details and availability.
read more
read less

applications

no applications available

segments

no segments available

approvals

no approvals available

  • assortment
  • dimensions
  • specifications
  • downloads
  • ETIM

code

size

dimensions

weight

packaging

gtin

code

10R880080013

size

-

dimensions

79x327x253

weight

7.6 kg

packaging

-

gtin

-

code

10R880085013

size

-

dimensions

79x330x256

weight

7.6 kg

packaging

-

gtin

-

code

10R8800A0013

size

-

dimensions

83x380x306

weight

10 kg

packaging

-

gtin

-

code

10R8800A1013

size

-

dimensions

83x386x312

weight

10.1 kg

packaging

-

gtin

-

code

10R8800A2013

size

-

dimensions

86x450x369

weight

14.8 kg

packaging

-

gtin

-

code

10R8800A3013

size

-

dimensions

86x455x374

weight

14 kg

packaging

-

gtin

-

code

10R8800B8013

size

-

dimensions

170x901x806

weight

101 kg

packaging

-

gtin

-

code

10R8800C0013

size

-

dimensions

170x955x857

weight

99.52 kg

packaging

-

gtin

-

code

10R8800C2013

size

-

dimensions

170x1002x908

weight

102.2 kg

packaging

-

gtin

-

code

10R8800C6013

size

-

dimensions

200x1103x1010

weight

111.58 kg

packaging

-

gtin

-

code

10R8800D0013

size

-

dimensions

200x1229x1135

weight

141 kg

packaging

-

gtin

-

code

10R8800D2013

size

-

dimensions

200x1288x1186

weight

148.6 kg

packaging

-

gtin

-

code

size

d1

DN1

l1

d2

DN2

l2

code

10R880080013

size

-

d1

216.3

DN1

8"

l1

40

d2

216.3

DN2

8"

l2

40

code

10R880085013

size

-

d1

219.1

DN1

8"

l1

40

d2

219.1

DN2

8"

l2

40

code

10R8800A0013

size

-

d1

267.4

DN1

10"

l1

42

d2

267.4

DN2

10"

l2

42

code

10R8800A1013

size

-

d1

273.0

DN1

10"

l1

42

d2

273.0

DN2

10"

l2

42

code

10R8800A2013

size

-

d1

318.5

DN1

12"

l1

43

d2

318.5

DN2

12"

l2

43

code

10R8800A3013

size

-

d1

323.9

DN1

12"

l1

43

d2

323.9

DN2

12"

l2

43

code

10R8800B8013

size

-

d1

711.2

DN1

28"

l1

85

d2

711.2

DN2

28"

l2

85

code

10R8800C0013

size

-

d1

762.0

DN1

DN750

l1

85

d2

762.0

DN2

DN750

l2

85

code

10R8800C2013

size

-

d1

812.8

DN1

32"

l1

85

d2

812.8

DN2

32"

l2

85

code

10R8800C6013

size

-

d1

914.4

DN1

36"

l1

100

d2

914.4

DN2

36"

l2

100

code

10R8800D0013

size

-

d1

1016.0

DN1

40"

l1

100

d2

1016.0

DN2

40"

l2

100

code

10R8800D2013

size

-

d1

1066.8

DN1

42"

l1

100

d2

1066.8

DN2

42"

l2

100

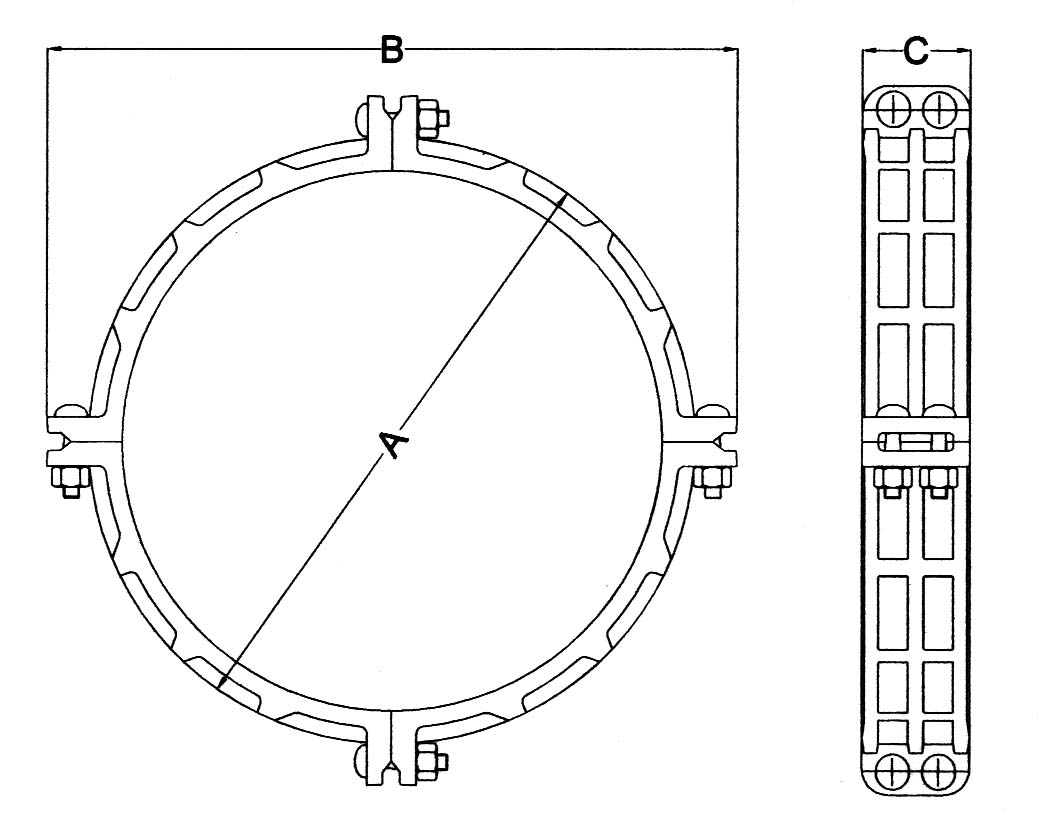

technical drawing for product

product info

item

VSH Shurjoint ring joint coupling (2 x ring joint), NBR gasket

item number with GTIN

R-88T

manufacturer

Shurjoint

weight

148.6 kg

dimensions

200x1288x1186

characteristics

color

orange

materials

cast iron (ASTM A536 65-45-12)

finishing

varnished

connection type

groove (coupling)

sealing

NBR (Nitrile)

technical

min. medium temperature

-29 cel

max medium temperature

82 cel

general

product group

fittingen (demountable)

ETIM class

EC003024 Fitting with 2 connections

country of origin

Taiwan

brand

VSH

series

Shurjoint Ring Joint

type

R-88T

link to sheet | pdf

MSDS_Shurjoint_Orange_paint

save to my IPS
image for R-88

image | jpg

R-88

save to my IPS
image for Diagram

diagram | jpg

Diagram

save to my IPS

datasheet | pdf

Datasheet

save to my IPS

manual | pdf

VSH Shurjoint technical manual ring joints

save to my IPS

label

value

label

etim-class

value

EC003024 Fitting with 2 connections

label

Material connection 1

value

Cast iron

label

Material quality connection 1

value

ASTM A536 Grade 65-45-12

label

Surface protection connection 1

value

Lacquered

label

Surface treatment connection 1

value

Other

label

Material connection 2

value

Cast iron

label

Material quality connection 2

value

ASTM A536 Grade 65-45-12

label

Surface protection connection 2

value

Lacquered

label

Surface treatment connection 2

value

Other

label

Shape

value

Straight

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Ribbing groove (groove coupling)

label

Connection 2

value

Ribbing groove (groove coupling)

label

Main colour fitting

value

Orange

label

Material sealing

value

NBR (nitrile rubber)

label

With buffer stud

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
