841

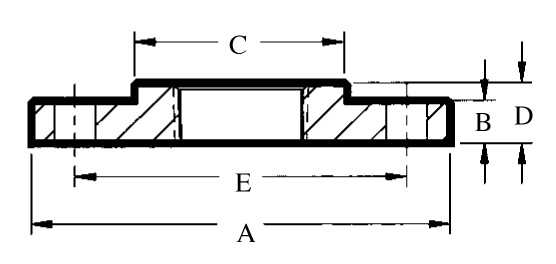

The Model 841 is a traditional companion flange used for transition from a flange to a threaded piping system.
Material to ASTM A536 Gr. 65-45-12 ductile iron, dimensions to ANSI B16.42 Class 150, threads to ANSI B1.20.1 NPT, black or hot-dipped galvanized (option) finish.
| code | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 108410012001 | FNPT1 1/4 black | 0.88 kg | 21x117x117 mm |
| art. No | size | d1 | DN1 | l1 | d2 | DN2 |
|---|---|---|---|---|---|---|
| 108410012001 | FNPT1 1/4 black | 42.2 | DN32 | 21 | 42.2 | DN32 |
| color | black |
|---|---|
| materials | ductile iron (ASTM A536 65-45-12) |
| finishing | varnished |
| manufacturer | Shurjoint |
| connection type | FPT - female thread conical (NPT), flange |
| product group | fittings |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint Threaded |
| type | 841 |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Cast iron |
| Surface protection connection 1 | Lacquered |
| Material connection 2 | Cast iron |
| Surface protection connection 2 | Lacquered |
| Shape | Straight |
| Reducing | No |
| Eccentric | No |
| System-specific | No |
| Nominal diameter connection 1 | DN 32 |
| Outer pipe diameter connection 1 | 42.2mm |
| Outer pipe diameter connection 1 (imperial) | 1.66" |
| Connection 1 | Internal thread conical (NPT) |
| Nominal diameter connection 2 | DN 32 |
| Outer pipe diameter connection 2 | 42.2mm |
| Outer pipe diameter connection 2 (imperial) | 1.66" |
| Connection 2 | Flange |
| Main colour fitting | Black |
| Flange standard | DIN |
| With buffer stud | No |
| Length | 21mm |
| Length of connection 1 | 21mm |
| Length of connection 1 (imperial) | 0.83" |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
