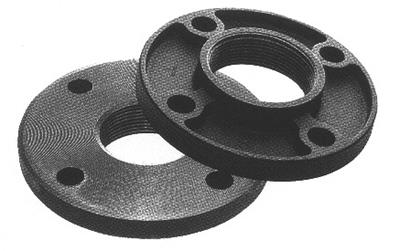

VSH Shurjoint companion flange FNPT1 1/4 black

item: 108410012001

The Model 841 is a traditional companion flange used for transition from a flange to a threaded piping system.

Material to ASTM A536 Gr. 65-45-12 ductile iron, dimensions to ANSI B16.42 Class 150, threads to ANSI B1.20.1 NPT, black or hot-dipped galvanized (option) finish.
read more
read less

applications

no applications available

segments

no segments available

approvals

no approvals available

label

value

label

d1

value

42.2

label

DN1

value

DN32

label

l1

value

21

label

d2

value

42.2

label

DN2

value

DN32

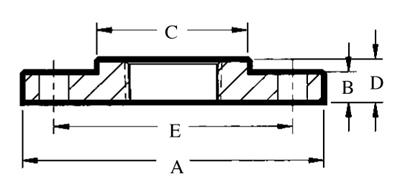

drawing for product

characteristics

color

black

materials

cast iron (ASTM A536 65-45-12)

finishing

varnished

connection type

FPT - female thread conical (NPT), flange

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

country of origin

Taiwan

brand

VSH

series

Shurjoint Threaded

type

841

product info

item

VSH Shurjoint companion flange FNPT1 1/4 black

item number

108410012001

product number

108410012001

manufacturer

Shurjoint

item group

841 - VSH Shurjoint companion flange

size

FNPT1 1/4 black

weight

0.88 kg

dimensions

21x117x117 mm

label

value

label

Material connection 1

value

Cast iron

label

Surface protection connection 1

value

Lacquered

label

Material connection 2

value

Cast iron

label

Surface protection connection 2

value

Lacquered

label

Shape

value

Straight

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Nominal diameter connection 1

value

DN 32

label

Outer pipe diameter connection 1

value

42.2mm

label

Outer pipe diameter connection 1 (imperial)

value

1.66"

label

Connection 1

value

Internal thread conical (NPT)

label

Nominal diameter connection 2

value

DN 32

label

Outer pipe diameter connection 2

value

42.2mm

label

Outer pipe diameter connection 2 (imperial)

value

1.66"

label

Connection 2

value

Flange

label

Main colour fitting

value

Black

label

With buffer stud

value

No

label

Length

value

21mm

label

Length of connection 1

value

21mm

label

Length of connection 1 (imperial)

value

0.83"

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
