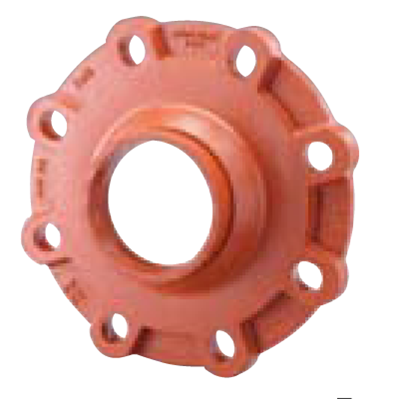

The VSH Shurjoint Model 7181 Universal Reducing Flange Adapter provides for a rigid transition between a flanged piping system and a one or two-size reduced grooved system without the use of a concentric reducer. The flange drilling can mate to ANSI 125/150, PN10/16, BS-10E and JIS 10K.
no applications available
no solutions available
FM
QB (CSTBat)
| code | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|

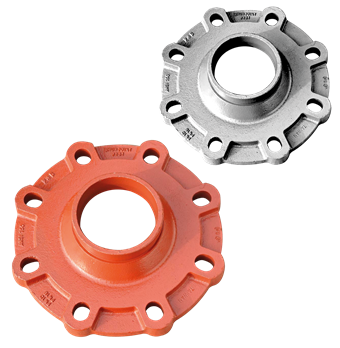

| 171813020001 | 3 x 2 (60.3) orange | 2.7 kg | 75x208x208 mm | ||
| 171813020003 | 3 x 2 (60.3) Galvanized | 2.7 kg | 75x208x208 mm | ||
| 171814525001 | 4 x 2.5 (73) orange | 4 kg | 76x226x226 mm | ||
| 171814525003 | 4 x 2.5 (73) Galvanized | 4 kg | 76x226x226 mm | ||
| 171814529001 | 4 x 2.5 (76.1) orange | 4 kg | 76x226x226 mm | ||
| 171814529003 | 4 x 2.5 (76.1) Galvanized | 4 kg | 76x226x226 mm | ||
| 171814530001 | 4 x 3 (88.9) orange | 3.45 kg | 75x226x226 mm | ||
| 171814530003 | 4 x 3 (88.9) Galvanized | 3.45 kg | 75x226x226 mm | ||
| 171816545001 | 6 x 4 (114.3) orange | 7.08 kg | 75x291x291 mm | ||
| 171816545003 | 6 x 4 (114.3) Galvanized | 7.08 kg | 75x291x291 mm |
| art. No | size | d1 | DN1 | l1 | d2 | DN2 | l2 |
|---|---|---|---|---|---|---|---|
| 171813020001 | 3 x 2 (60.3) orange | 60.3 | DN50 | 59 | 88.9 | DN80 | 16 |
| 171813020003 | 3 x 2 (60.3) Galvanized | 60.3 | DN50 | 59 | 88.9 | DN80 | 16 |
| 171814525001 | 4 x 2.5 (73) orange | 73.0 | DN65 | 60 | 114.3 | DN100 | 16 |
| 171814525003 | 4 x 2.5 (73) Galvanized | 73.0 | DN65 | 60 | 114.3 | DN100 | 16 |
| 171814529001 | 4 x 2.5 (76.1) orange | 76.1 | DN65 | 60 | 114.3 | DN100 | 16 |
| 171814529003 | 4 x 2.5 (76.1) Galvanized | 76.1 | DN65 | 60 | 114.3 | DN100 | 16 |
| 171814530001 | 4 x 3 (88.9) orange | 88.9 | DN80 | 59 | 114.3 | DN100 | 16 |
| 171814530003 | 4 x 3 (88.9) Galvanized | 88.9 | DN80 | 59 | 114.3 | DN100 | 16 |
| 171816545001 | 6 x 4 (114.3) orange | 114.3 | DN100 | 51 | 168.3 | DN150 | 24 |
| 171816545003 | 6 x 4 (114.3) Galvanized | 114.3 | DN100 | 51 | 168.3 | DN150 | 24 |
| color | silver, orange |
|---|---|
| materials | cast iron (ASTM A536 65-45-12) |
| finishing | galvanised, varnished |
| manufacturer | Shurjoint |
| shape | straight |
| connection type | groove (fitting), flange |
| product group | fittings (demountable) |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| type | 7181 |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Cast iron |
| Material connection 2 | Cast iron |
| Shape | Straight |
| Model | 1-part |
| Reducing | No |
| Eccentric | No |
| System specific | No |
| Connection 1 | Groove |
| Connection 2 | Flange |
| With buffer stud | No |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | No |
| With de-aerator | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
| Gastec QA - AR 214 (H2) | No |
