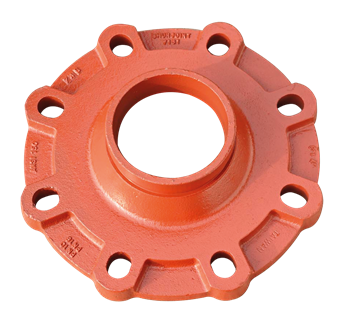

VSH Shurjoint Universal reducing flange adapter 4 x 2.5 (76.1) orange

item: 171814529001

The VSH Shurjoint Model 7181 Universal Reducing Flange Adapter provides for a rigid transition between a flanged piping system and a one or two-size reduced grooved system without the use of a concentric reducer. The flange drilling can mate to ANSI 125/150, PN10/16, BS-10E and JIS 10K.
read more
read less

applications

no applications available

segments

no segments available

approvals

no approvals available

label

value

label

d1

value

76.1

label

DN1

value

DN65

label

l1

value

60

label

d2

value

114.3

label

DN2

value

DN100

label

l2

value

16

drawing for product

characteristics

color

orange

materials

cast iron (ASTM A536 65-45-12)

finishing

varnished

shape

straight

connection type

groove (fitting), flange

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

country of origin

Taiwan

brand

VSH

series

Shurjoint

type

7181

product info

item

VSH Shurjoint Universal reducing flange adapter 4 x 2.5 (76.1) orange

item number

171814529001

product number

171814529001

manufacturer

Shurjoint

item group

7181 - VSH Shurjoint universal reducing flange nipple (groove x flange)

size

4 x 2.5 (76.1) orange

weight

4 kg

dimensions

76x226x226 mm

label

value

label

Material connection 1

value

Cast iron

label

Surface protection connection 1

value

Lacquered

label

Material connection 2

value

Cast iron

label

Surface protection connection 2

value

Lacquered

label

Shape

value

Straight

label

Model

value

1-part

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Nominal diameter connection 1

value

DN 65

label

Outer pipe diameter connection 1

value

76.1mm

label

Outer pipe diameter connection 1 (imperial)

value

3"

label

Connection 1

value

Groove

label

Nominal diameter connection 2

value

DN 100

label

Outer pipe diameter connection 2

value

114.3mm

label

Outer pipe diameter connection 2 (imperial)

value

4.5"

label

Connection 2

value

Flange

label

Main colour fitting

value

Orange

label

With buffer stud

value

No

label

Length

value

76mm

label

Length of connection 1

value

60mm

label

Length of connection 1 (imperial)

value

2.36"

label

Length of connection 2

value

16mm

label

Length of connection 2 (imperial)

value

0.63"

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
