1110D0020001
type 7110DR
The VSH Shurjoint Model 7110DR is a grooved-end ductile iron cast elbow with an integral 1” NPT or BSP drain. The 7110DR was primarily designed for, but not limited to, use on fire protection standpipes.
approvals
| color | orange |
|---|---|
| materials | cast iron (ASTM A536 65-45-12) |
| finishing | varnished |
| manufacturer | Shurjoint |
| shape | Elbow (90º) |
| connection type | groove (fitting) |
| item | VSH Shurjoint Drain elbow 60.3 w/ 1" FNPT orange |
|---|---|
| item number | 1110D0020001 |
| product number with GTIN | 1110D0020001 (00670750114908) |
| item group | 7110DR - VSH Shurjoint drain elbow (2 x groove) |
| size | 60.3 w/ 1 FNPT orange |
| weight | 0.99 kg |
| dimensions | 113x60x113 mm |
| product group | fittings |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| type | 7110DR |
| label | value |
|---|---|
| d1 | 60.3 |
| DN1 | DN50 |
| l1 | 83 |
| d2 | 60.3 |
| DN2 | DN50 |
| l2 | 83 |
| angle | 90 |

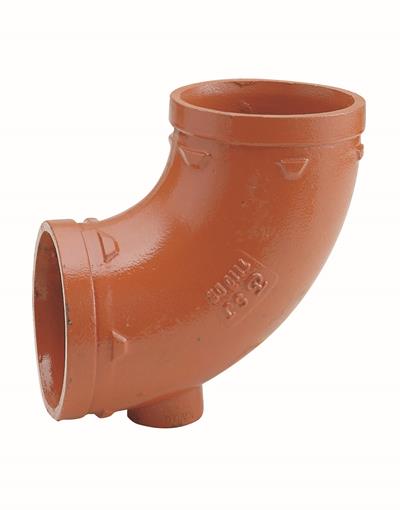

 7110DR image |
jpg | download |
FM certifications |
download | |
UL certifications |
download | |
ULc certifications |
download | |
 Diagram diagram |
png | download |
Datasheet submittal sheet |
download | |
VSH Shurjoint Installation Handbook installation- & maintenance document |
download | |
UL certifications |
download | |
FM certifications |
download | |
ULc certifications |
download |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Cast iron |
| Surface protection connection 1 | Lacquered |
| Material connection 2 | Cast iron |
| Surface protection connection 2 | Lacquered |
| Shape | Bend |
| Bend angle | 90° |
| Reducing | No |
| Eccentric | No |
| System specific | No |
| Nominal diameter connection 1 | DN 50 |
| Outer pipe diameter connection 1 | 60.3mm |
| Outer pipe diameter connection 1 (imperial) | 2.37" |
| Connection 1 | Groove |
| Nominal diameter connection 2 | DN 50 |
| Outer pipe diameter connection 2 | 60.3mm |
| Outer pipe diameter connection 2 (imperial) | 2.37" |
| Connection 2 | Groove |
| Main colour fitting | Orange |
| With buffer stud | No |
| Length | 113.15mm |
| Length of connection 1 | 83mm |
| Length of connection 1 (imperial) | 3.27" |
| Length of connection 2 | 83mm |
| Length of connection 2 (imperial) | 3.27" |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | Yes |
| With de-aerator | No |
| FM quality mark | Yes |
| LPCB quality mark | No |
| ULC quality mark | Yes |
| UL quality mark | Yes |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
