Z07T is the designation for model Z07 with a Grade T NBR gasket. The VSH Shurjoint Model Z07 is an angle-pad design rigid coupling for general piping applications where rigidity is required including valve connections, mechanical rooms, fire mains and long straight runs. The angle-pad design allows the coupling housings to slide along the bolt pads when tightened. The result is an offset clamping action which provides a rigid joint that resists flexural and torsional loads. Support and hanging requirements correspond to ANSI B31.1, B31.9 and NFPA 13.
applications
solutions
| color | orange |
|---|---|
| materials | cast iron (ASTM A536 65-45-12) |
| finishing | varnished |
| manufacturer | Shurjoint |
| shape | straight (0º) |
| connection type | groove (coupling) |
| sealing | NBR (Nitrile) |
| item | VSH Shurjoint heavy duty rigid coupling FF 168.3 orange UNC |
|---|---|
| item number | 10Z070065004 |
| product number with GTIN | 10Z070065004 (00670750221606) |
| item group | Z07T - VSH Shurjoint heavy duty rigid coupling (2 x groove), NBR gasket |
| size | 168.3 (DN150) orange UNC |
| weight | 3.46 kg |
| dimensions | 53x271x203 mm |
| product group | fittings (demountable) |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| type | Z07T |
| max operating pressure liquid | 48 bar |
|---|---|
| min. medium temperature | -29 °C |
| max medium temperature | 82 °C |

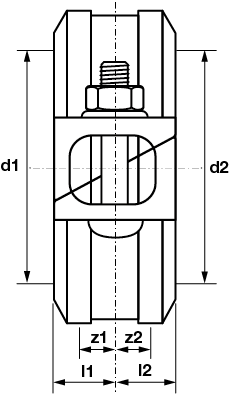

| label | value |
|---|---|
| d1 | 168.3 |
| DN1 | DN150 |
| l1 | 27 |
| z1 | 2 |
| d2 | 168.3 |
| DN2 | DN150 |
| l2 | 27 |
| z2 | 2 |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Cast iron |
| Surface protection connection 1 | Lacquered |
| Material connection 2 | Cast iron |
| Surface protection connection 2 | Lacquered |
| Shape | Straight |
| Model | 2-part |
| Bend angle | 0° |
| Reducing | No |
| Eccentric | No |
| System specific | No |
| Nominal diameter connection 1 | DN 150 |
| Outer pipe diameter connection 1 | 168.3mm |
| Outer pipe diameter connection 1 (imperial) | 6.63" |
| Connection 1 | Ribbing groove (groove coupling) |
| Nominal diameter connection 2 | DN 150 |
| Outer pipe diameter connection 2 | 168.3mm |
| Outer pipe diameter connection 2 (imperial) | 6.63" |
| Connection 2 | Ribbing groove (groove coupling) |
| Main colour fitting | Orange |
| Material sealing | NBR (nitrile rubber) |
| With buffer stud | No |
| Length | 53mm |
| Length of connection 1 | 26.5mm |
| Length of connection 1 (imperial) | 1.04" |
| Working length connection 1 | 2.05mm |
| Working length connection 1 (imperial) | 0.08" |
| Length of connection 2 | 26.5mm |
| Length of connection 2 (imperial) | 1.04" |
| Working length connection 2 | 2.05mm |
| Working length connection 2 (imperial) | 0.08" |
| Medium temperature (continuous) | -29°C - 82°C |
| Medium temperature (continuous) (imperial) | -20.2°F - 179.6°F |
| Max. operating pressure at 20 °C | 48bar |
| Max. operating pressure at 20 °C (imperial) | 696.18psi |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
