10Z050055005
type Z05E-A

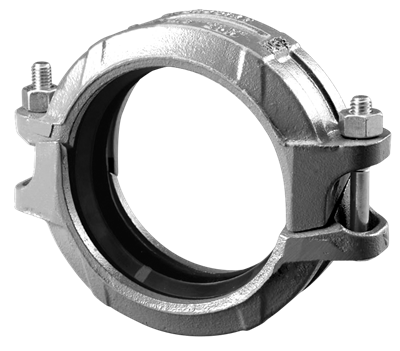

Z05E-A is the designation for model Z05 with a Grade E-A EPDM gasket. The VSH Shurjoint Model Z05 is an angle-pad design rigid coupling for moderate pressure piping services including fire mains, long straight runs and valve connections. The angle-pad design allows the coupling housings to slide along the bolt pads when tightened. The result is an offset clamping action which provides a rigid joint which resists so called ‘snaking’ of a long straight run. Support and hanging requirements correspond to ANSI B31.1, B31.9 and NFPA 13. With the removal of only one bolt you can make a fast and easy "swing-over” installation.
applications
solutions
approvals
| color | silver |
|---|---|
| materials | cast iron (ASTM A536 65-45-12) |
| finishing | galvanised |
| manufacturer | Shurjoint |
| shape | straight (0º) |
| connection type | groove (coupling) |
| sealing | EPDM |
| item | VSH Shurjoint rigid coupling FF 141.3 pre-lube galvanized UNC |
|---|---|
| item number | 10Z050055005 |
| product number with GTIN | 10Z050055005 (04710574010645) |
| item group | Z05E-A - VSH Shurjoint rigid coupling (2 x groove), EPDM pre-lube gasket |
| size | 141.3 (DN125) galvanized UNC |
| weight | 2.58 kg |
| dimensions | 54x230x175 mm |
| product group | fittings (demountable) |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| type | Z05E-A |
| max operating pressure liquid | 24 bar |
|---|---|
| max medium temperature | 38 °C |
| label | value |
|---|---|
| d1 | 141.3 |
| DN1 | DN125 |
| l1 | 27 |
| z1 | 2 |
| d2 | 141.3 |
| DN2 | DN125 |
| l2 | 27 |
| z2 | 2 |
FM certifications |
download | |
UL certifications |
download | |
ULc certifications |
download | |
VdS certifications |
download | |
 Z05-Combi image |
png | download |
 Z05-GV image |
png | download |
 Diagram diagram |
png | download |
VSH Shurjoint CSTBat Approval certifications |
download | |
Datasheet submittal sheet |
download | |
VSH Shurjoint Installation Handbook installation- & maintenance document |
download | |
UL certifications |
download | |
FM certifications |
download | |
VdS certifications |
download | |
ULc certifications |
download |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Cast iron |
| Surface protection connection 1 | Galvanic/electrolytic zinc plated |
| Material connection 2 | Cast iron |
| Surface protection connection 2 | Galvanic/electrolytic zinc plated |
| Shape | Straight |
| Model | 2-part |
| Bend angle | 0° |
| Reducing | No |
| Eccentric | No |
| System specific | No |
| Nominal diameter connection 1 | DN 125 |
| Outer pipe diameter connection 1 | 141.3mm |
| Outer pipe diameter connection 1 (imperial) | 5.56" |
| Connection 1 | Ribbing groove (groove coupling) |
| Nominal diameter connection 2 | DN 125 |
| Outer pipe diameter connection 2 | 141.3mm |
| Outer pipe diameter connection 2 (imperial) | 5.56" |
| Connection 2 | Ribbing groove (groove coupling) |
| Main colour fitting | Grey |
| Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
| With buffer stud | No |
| Length | 54mm |
| Length of connection 1 | 27mm |
| Length of connection 1 (imperial) | 1.06" |
| Working length connection 1 | 2.05mm |
| Working length connection 1 (imperial) | 0.08" |
| Length of connection 2 | 27mm |
| Length of connection 2 (imperial) | 1.06" |
| Working length connection 2 | 2.05mm |
| Working length connection 2 (imperial) | 0.08" |
| Medium temperature (continuous) | °C - 38°C |
| Medium temperature (continuous) (imperial) | °F - 100.4°F |
| Max. operating pressure at 20 °C | 24bar |
| Max. operating pressure at 20 °C (imperial) | 348.09psi |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | Yes |
| LPCB quality mark | No |
| ULC quality mark | Yes |
| UL quality mark | Yes |
| VdS quality mark | Yes |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
