type 901
Shurjoint short radius fittings, while primarily designed for fire protection applications, can also be used for general service requirements. The Model K-9 and Z05 rigid couplings can be used with short radius fittings without the worry of bolt pad interference.
Shurjoint grooved-end fittings are made of ductile iron per ASTM A536 Gr. 65-45-12. C-E dimensions are manufacturer’s standard.
Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.
applications
solutions
approvals
| color | red |
|---|---|
| materials | cast iron (ASTM A536 65-45-12) |
| finishing | varnished |
| manufacturer | Shurjoint |
| shape | Elbow (90º) |
| connection type | groove (fitting) |

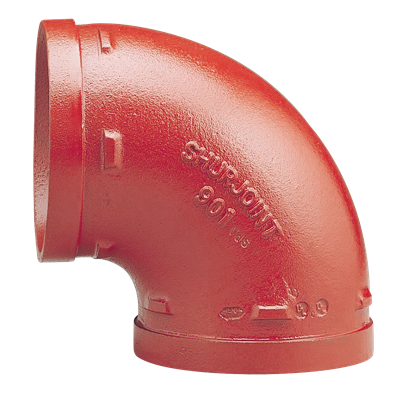

| item | VSH Shurjoint fire elbow short radius 90° MM 88.9 red |
|---|---|
| item number with GTIN | 109010030002 (08711985434354) |
| product number with GTIN | 109010030002 (08711985434354) |
| item group | 901 - VSH Shurjoint short radius 90° elbow (2 x groove) |
| size | 88.9 (DN80) red |
| weight | 1.4 kg |
| dimensions | 131x89x131 mm |
| product group | fittings |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| type | 901 |
| unsps | 40172803 |
| max operating pressure liquid | 20.1 bar |
|---|
| label | value |
|---|---|
| d1 | 88.9 |
| DN1 | DN80 |
| l1 | 86 |
| z1 | 86 |
| es1 | 25 |
| d2 | 88.9 |
| DN2 | DN80 |
| l2 | 86 |
| z2 | 86 |
| es2 | 25 |
| radius | 89 |
| angle | 90 |
 901 image |
png | download |
 901-Combi image |
png | download |
FM certifications |
download | |
LPCB certifications |
download | |
TSU certifications |
download | |
UL certifications |
download | |
ULc certifications |
download | |
 Diagram diagram |
png | download |
Datasheet submittal sheet |
download | |
VSH Shurjoint Installation Handbook installation- & maintenance document |
download | |
VSH Shurjoint instructions installation- & maintenance document |
download | |
UL certifications |
download | |
FM certifications |
download | |
LPCB certifications |
download | |
ULc certifications |
download | |
TSU certifications |
download |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Cast iron |
| Surface protection connection 1 | Lacquered |
| Material connection 2 | Cast iron |
| Surface protection connection 2 | Lacquered |
| Shape | Bend |
| Bend angle | 90° |
| Bend radius | 89mm |
| Bend radius (imperial) | 3.5" |
| Reducing | No |
| Eccentric | No |
| System specific | No |
| Nominal diameter connection 1 | DN 80 |
| Outer pipe diameter connection 1 | 88.9mm |
| Outer pipe diameter connection 1 (imperial) | 3.5" |
| Connection 1 | Groove |
| Nominal diameter connection 2 | DN 80 |
| Outer pipe diameter connection 2 | 88.9mm |
| Outer pipe diameter connection 2 (imperial) | 3.5" |
| Connection 2 | Groove |
| With buffer stud | No |
| High tensile strength | Yes |
| Length | 131mm |
| Length of connection 1 | 86mm |
| Length of connection 1 (imperial) | 3.39" |
| Working length connection 1 | 86mm |
| Working length connection 1 (imperial) | 3.39" |
| Length of connection 2 | 86mm |
| Length of connection 2 (imperial) | 3.39" |
| Working length connection 2 | 86mm |
| Working length connection 2 (imperial) | 3.39" |
| Max. operating pressure at 20 °C | 20.1bar |
| Max. operating pressure at 20 °C (imperial) | 291.53psi |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | Yes |
| LPCB quality mark | Yes |
| ULC quality mark | Yes |
| UL quality mark | Yes |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
