100591060001
type 59
The VSH Shurjoint Model 59 nipple allows for a direct connection threaded connections and grooved couplings.
applications
solutions
| color | black |
|---|---|
| materials | steel (ASTM A53 Grade B) |
| finishing | none |
| manufacturer | Shurjoint |
| shape | straight |
| connection type | groove (fitting), MPT - male thread conical (NPT) |
| item | VSH Shurjoint nipple MM 33.4xMNPT1 black |
|---|---|
| item number | 100591060001 |
| product number with GTIN | 100591060001 (04710574000769) |
| item group | 59 - VSH Shurjoint nipple (groove x male thread) |
| size | 33.4xMNPT1 black |
| weight | 0.34 kg |
| dimensions | 33x33x152 mm |
| product group | fittings |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| type | 59 |

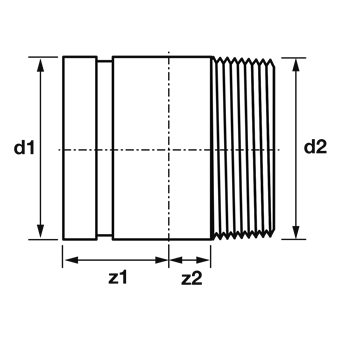

| label | value |
|---|---|
| d1 | 33.4 |
| DN1 | DN25 |
| l1 | 51 |
| z1 | 51 |
| d2 | 33.4 |
| DN2 | DN25 |
| l2 | 51 |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Steel |
| Surface protection connection 1 | Untreated |
| Surface treatment connection 1 | Untreated |
| Material connection 2 | Steel |
| Surface protection connection 2 | Untreated |
| Surface treatment connection 2 | Untreated |
| Shape | Straight |
| Model | 1-part |
| Reducing | No |
| Eccentric | No |
| System specific | No |
| Nominal diameter connection 1 | DN 25 |
| Outer pipe diameter connection 1 | 33.4mm |
| Outer pipe diameter connection 1 (imperial) | 1.31" |
| Connection 1 | Groove |
| Nominal diameter connection 2 | DN 25 |
| Outer pipe diameter connection 2 | 33.4mm |
| Outer pipe diameter connection 2 (imperial) | 1.31" |
| Connection 2 | External thread conical (NPT) |
| Main colour fitting | Black |
| With buffer stud | No |
| High tensile strength | Yes |
| Length | 33.4mm |
| Length of connection 1 | 51mm |
| Length of connection 1 (imperial) | 2.01" |
| Working length connection 1 | 51mm |
| Working length connection 1 (imperial) | 2.01" |
| Length of connection 2 | 51mm |
| Length of connection 2 (imperial) | 2.01" |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
