VSH Shurjoint hose nipple 60.3 (2) Gr x H black

item: 100560020001

The VSH Shurjoint Model 56 hose nipple allows for a direct connection with rubber or plastic hoses.
read more
read less

applications

no applications available

segments

no segments available

approvals

no approvals available

label

value

label

d1

value

60.3

label

DN1

value

DN50

label

l1

value

59

label

d2

value

60.3

label

DN2

value

DN50

label

l2

value

59

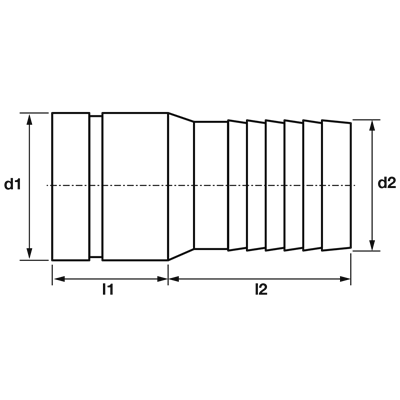

drawing for product

characteristics

color

black

materials

cast iron (ASTM A536 65-45-12)

finishing

none

shape

straight

connection type

groove (fitting), hose connector

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

country of origin

Taiwan

brand

VSH

series

Shurjoint

type

56

product info

item

VSH Shurjoint hose nipple 60.3 (2) Gr x H black

item number

100560020001

product number with GTIN

100560020001 (00670750552823)

manufacturer

Shurjoint

item group

56 - VSH Shurjoint hose nipple

size

60.3 (DN50) black

weight

0.55 kg

dimensions

118x60x60 mm

image for 56

image | jpg

56

image for Diagram

diagram | png

Diagram

submittal sheet | pdf

Datasheet

installation- & maintenance document | pdf

VSH Shurjoint Installation Handbook

label

value

label

Material connection 1

value

Cast iron

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Cast iron

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Straight

label

Model

value

1-part

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Nominal diameter connection 1

value

DN 50

label

Outer pipe diameter connection 1

value

60.3mm

label

Outer pipe diameter connection 1 (imperial)

value

2.37"

label

Connection 1

value

Groove

label

Nominal diameter connection 2

value

DN 50

label

Outer pipe diameter connection 2

value

60.3mm

label

Outer pipe diameter connection 2 (imperial)

value

2.37"

label

Connection 2

value

Hose pillar

label

Main colour fitting

value

Black

label

With buffer stud

value

No

label

Length

value

118mm

label

Length of connection 1

value

59mm

label

Length of connection 1 (imperial)

value

2.32"

label

Length of connection 2

value

59mm

label

Length of connection 2 (imperial)

value

2.32"

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
