Z07NEpw
Z07NEpw is the designation for model Z07N with a Grade E-pw EPDM gasket. The VSH Shurjoint Model Z07N is an angle-pad design rigid coupling for general piping applications where rigidity is required including valve connections, mechanical rooms, fire mains and long straight runs. The angle-pad design allows the coupling housings to slide along the bolt pads when tightened. The result is an offset clamping action which provides a rigid joint that resists flexural and torsional loads. Model Z07N is a two-segment coupling which is available in sizes 14”~24”. Support and hanging requirements correspond to ANSI B31.1, B31.9 and NFPA 13.
applications
solutions
approvals
| code | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 1Z07N00A4007 | 355.6 (DN350) orange UNC | 16 kg | 75x660x467 mm | ||
| 1Z07N00A6007 | 406.4 (DN400) orange UNC | 17.9 kg | 75x660x467 mm | ||
| 1Z07N00A8007 | 457.2 (DN450) orange UNC | 22.3 kg | 79x617x525 mm | ||
| 1Z07N00B4007 | 609.6 (DN600) orange UNC | 32.1 kg | 78x776x687 mm | ||
| 1Z07N00A4008 | 355.6 (DN350) galvanized UNC | 16 kg | 75x660x467 | ||
| 1Z07N00A6008 | 406.4 (DN400) galvanized UNC | 17.9 kg | 75x660x467 | ||
| 1Z07N00A8008 | 457.2 (DN450) galvanized UNC | 22.3 kg | 79x617x525 | ||
| 1Z07N00B0007 | 508 (DN500) orange UNC | 26.2 kg | 76x711x582 | ||
| 1Z07N00B0008 | 508 (DN500) galvanized UNC | 26.2 kg | 76x711x582 | ||
| 1Z07N00B4008 | 609.6 (DN600) galvanized UNC | 32.1 kg | 78x776x687 |

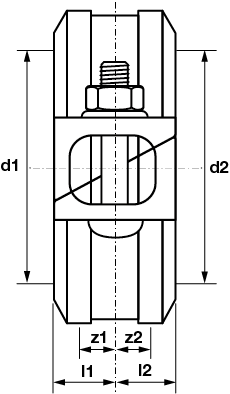

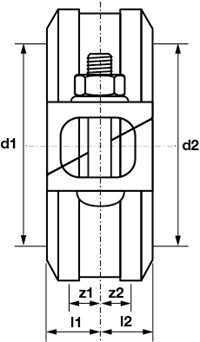

| art. No | size | d1 | DN1 | l1 | z1 | d2 | DN2 | l2 | z2 |
|---|---|---|---|---|---|---|---|---|---|
| 1Z07N00A4007 | 355.6 (DN350) orange UNC | 355.6 | DN350 | 38 | 2 | 355.6 | DN350 | 38 | 2 |
| 1Z07N00A6007 | 406.4 (DN400) orange UNC | 406.4 | DN400 | 38 | 2 | 406.4 | DN400 | 38 | 2 |
| 1Z07N00A8007 | 457.2 (DN450) orange UNC | 457.2 | DN450 | 40 | 2 | 457.2 | DN450 | 40 | 2 |
| 1Z07N00B4007 | 609.6 (DN600) orange UNC | 609.6 | DN600 | 39 | 2 | 609.6 | DN600 | 39 | 2 |
| 1Z07N00A4008 | 355.6 (DN350) galvanized UNC | 355.6 | DN350 | 38 | 2 | 355.6 | DN350 | 38 | 2 |
| 1Z07N00A6008 | 406.4 (DN400) galvanized UNC | 406.4 | DN400 | 38 | 2 | 406.4 | DN400 | 38 | 2 |
| 1Z07N00A8008 | 457.2 (DN450) galvanized UNC | 457.2 | DN450 | 40 | 2 | 457.2 | DN450 | 40 | 2 |
| 1Z07N00B0007 | 508 (DN500) orange UNC | 508.0 | DN500 | 38 | 2 | 508.0 | DN500 | 38 | 2 |
| 1Z07N00B0008 | 508 (DN500) galvanized UNC | 508.0 | DN500 | 38 | 2 | 508.0 | DN500 | 38 | 2 |
| 1Z07N00B4008 | 609.6 (DN600) galvanized UNC | 609.6 | DN600 | 39 | 2 | 609.6 | DN600 | 39 | 2 |
| color | silver, orange |
|---|---|
| materials | ductile iron (ASTM A536 65-45-12) |
| finishing | galvanised, varnished |
| manufacturer | Shurjoint |
| shape | straight (0º) |
| connection type | groove (coupling) |
| sealing | EPDM |
| product group | fittings (demountable) |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| type | Z07NEpw |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Cast iron |
| Material connection 2 | Cast iron |
| Shape | Straight |
| Bend angle | 0° |
| Reducing | No |
| Eccentric | No |
| System-specific | No |
| Connection 1 | Ribbing groove (groove coupling) |
| Connection 2 | Ribbing groove (groove coupling) |
| Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
| With buffer stud | No |
| Working length connection 1 | 1.6mm |
| Working length connection 1 (imperial) | 0.06" |
| Working length connection 2 | 1.6mm |
| Working length connection 2 (imperial) | 0.06" |
| Medium temperature (continuous) | -34°C - 110°C |
| Medium temperature (continuous) (imperial) | -29.2°F - 230°F |
| Max. operating pressure at 20 °C | 17bar |
| Max. operating pressure at 20 °C (imperial) | 246.56psi |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | No |
| LPCB quality mark | No |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
