group: Z07NE
Z07NE is the designation for model Z07N with a Grade E EPDM gasket. The VSH Shurjoint Model Z07N is an angle-pad design rigid coupling for general piping applications where rigidity is required including valve connections, mechanical rooms, fire mains and long straight runs. The angle-pad design allows the coupling housings to slide along the bolt pads when tightened. The result is an offset clamping action which provides a rigid joint that resists flexural and torsional loads. Model Z07N is a two-segment coupling which is available in sizes 14”~24”. Support and hanging requirements correspond to ANSI B31.1, B31.9 and NFPA 13.
heating
cooling
compressed air
sprinkler
dry fire main
vacuum
building installations
fire protection
industry
FM
QB (CSTBat)
UL
ULc
| code | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 1Z07N00A4001 | 355.6 (DN350) orange UNC | 14.83 kg | 75x508x408 mm | 08711985439182 | |
| 1Z07N00A4003 | 355.6 (DN350) galvanized UNC | 14.83 kg | 75x508x408 mm | 08711985439205 | |
| 1Z07N00A6001 | 406.4 (DN400) orange UNC | 17 kg | 75x660x467 mm | 08711985439199 | |
| 1Z07N00A6003 | 406.4 (DN400) galvanized UNC | 17 kg | 75x660x467 mm | 08711985439212 | |
| 1Z07N00A8001 | 457.2 (DN450) orange UNC | 21.33 kg | 79x617x525 mm | ||
| 1Z07N00A8003 | 457.2 (DN450) galvanized UNC | 21.33 kg | 79x617x525 mm | ||
| 1Z07N00B0001 | 508 (DN500) orange UNC | 23.6 kg | 76x711x582 mm | ||
| 1Z07N00B0003 | 508 (DN500) galvanized UNC | 23.6 kg | 76x711x582 mm | ||
| 1Z07N00B4001 | 609.6 (DN600) orange UNC | 29.33 kg | 78x776x687 mm | ||
| 1Z07N00B4003 | 609.6 (DN600) galvanized UNC | 29.33 kg | 78x776x687 mm |

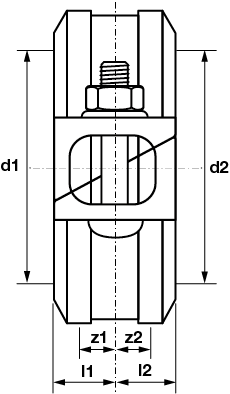

| art. No | size | d1 | DN1 | l1 | z1 | d2 | DN2 | l2 | z2 |
|---|---|---|---|---|---|---|---|---|---|
| 1Z07N00A4001 | 355.6 (DN350) orange UNC | 355.6 | DN350 | 38 | 2 | 355.6 | DN350 | 38 | 2 |
| 1Z07N00A4003 | 355.6 (DN350) galvanized UNC | 355.6 | DN350 | 38 | 2 | 355.6 | DN350 | 38 | 2 |
| 1Z07N00A6001 | 406.4 (DN400) orange UNC | 406.4 | DN400 | 38 | 2 | 406.4 | DN400 | 38 | 2 |
| 1Z07N00A6003 | 406.4 (DN400) galvanized UNC | 406.4 | DN400 | 38 | 2 | 406.4 | DN400 | 38 | 2 |
| 1Z07N00A8001 | 457.2 (DN450) orange UNC | 457.2 | DN450 | 40 | 2 | 457.2 | DN450 | 40 | 2 |
| 1Z07N00A8003 | 457.2 (DN450) galvanized UNC | 457.2 | DN450 | 40 | 2 | 457.2 | DN450 | 40 | 2 |
| 1Z07N00B0001 | 508 (DN500) orange UNC | 508.0 | DN500 | 38 | 2 | 508.0 | DN500 | 38 | 2 |
| 1Z07N00B0003 | 508 (DN500) galvanized UNC | 508.0 | DN500 | 38 | 2 | 508.0 | DN500 | 38 | 2 |
| 1Z07N00B4001 | 609.6 (DN600) orange UNC | 609.6 | DN600 | 39 | 2 | 609.6 | DN600 | 39 | 2 |
| 1Z07N00B4003 | 609.6 (DN600) galvanized UNC | 609.6 | DN600 | 39 | 2 | 609.6 | DN600 | 39 | 2 |
| color | silver, orange |
|---|---|
| materials | cast iron (ASTM A536 65-45-12) |
| finishing | galvanised, varnished |
| manufacturer | Shurjoint |
| shape | straight (0º) |
| connection type | groove (coupling) |
| sealing | EPDM |
| product group | fittings (demountable) |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| type | Z07NE |
FM certifications |
download | |
UL certifications |
download | |
ULc certifications |
download | |
VSH Shurjoint CSTBat certifications |
download | |
 Z07N image |
png | download |

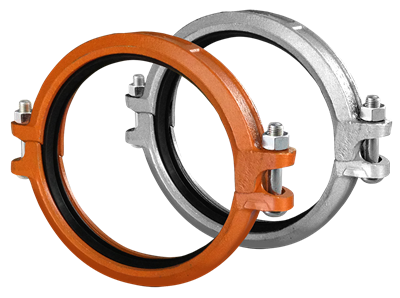

 Z07N-Combi image |
png | download |
 Z07N-GV image |
png | download |
 Diagram diagram |
png | download |
Datasheet submittal sheet |
download | |
VSH Shurjoint Installation Handbook installation- & maintenance document |
download | |
VSH Shurjoint instructions installation- & maintenance document |
download |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Cast iron |
| Material connection 2 | Cast iron |
| Shape | Straight |
| Model | 2-part |
| Bend angle | 0° |
| Reducing | No |
| Eccentric | No |
| System specific | No |
| Connection 1 | Ribbing groove (groove coupling) |
| Connection 2 | Ribbing groove (groove coupling) |
| Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
| With buffer stud | No |
| High tensile strength | Yes |
| Working length connection 1 | 1.6mm |
| Working length connection 1 (imperial) | 0.06" |
| Working length connection 2 | 1.6mm |
| Working length connection 2 (imperial) | 0.06" |
| Medium temperature (continuous) | -34°C - 110°C |
| Medium temperature (continuous) (imperial) | -29.2°F - 230°F |
| Max. operating pressure at 20 °C | 17bar |
| Max. operating pressure at 20 °C (imperial) | 246.56psi |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | No |
| With de-aerator | No |
| LPCB quality mark | No |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
| Gastec QA - AR 214 (H2) | No |
