group: XH-70EP

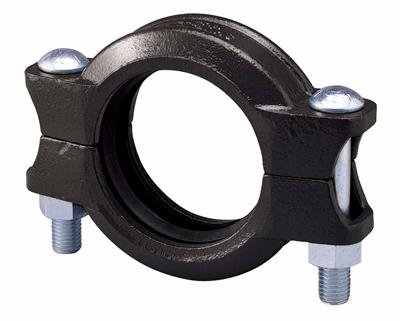

The VSH Shurjoint Model XH-70EP coupling is an extra heavy rigid coupling for use with plastic coated pipe, cement-lined pipe or Sch. 40S or 80S stainless steel pipe. The coupling is capable of holding high pressure up to 175 bar depending on pipe size when used in conjunction with machined EP cut-grooves and the applicable pipe. The coupling housings are painted black and supplied with an EP (End-Protection) gasket, which will permit a continuous connection of lined-surface of the pipe and also protect the pipe ends from corrosion. The standard EP gaskets are made of oil-resistant Nitrile compound.
heating
cooling
compressed air
vacuum
building installations
industry
CRN
QB (CSTBat)
| code | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 1XH700020005 | 60.3 (DN50) black | 1.52 kg | 49x145x90 mm | bag (1 pce) | |
| 1XH700020006 | 60.3 (DN50) black | 1.52 kg | 49x145x90 mm | bag (1 pce) | |
| 1XH700025005 | 73 (DN65) black | 1.8 kg | 49x168x103 mm | bag (1 pce) | |
| 1XH700025006 | 73 (DN65) black | 1.8 kg | 49x168x103 mm | bag (1 pce) | |
| 1XH700030005 | 88.9 (DN80) black | 2.15 kg | 51x188x122 mm | bag (1 pce) | |
| 1XH700030006 | 88.9 (DN80) black | 2.15 kg | 51x188x122 mm | bag (1 pce) | |
| 1XH700045005 | 114.3 (DN100) black | 4 kg | 55x222x157 mm | bag (1 pce) | |
| 1XH700045006 | 114.3 (DN100) black | 4 kg | 55x222x157 mm | bag (1 pce) | |
| 1XH700065005 | 168.3 (DN150) black | 6.79 kg | 57x295x218 mm | bag (1 pce) | |
| 1XH700065006 | 168.3 (DN150) black | 6.79 kg | 57x295x218 mm | bag (1 pce) | |
| 1XH700085005 | 219.1 (DN200) black | 10.93 kg | 70x364x275 mm | bag (1 pce) | |
| 1XH700085006 | 219.1 (DN200) black | 10.93 kg | 70x364x275 mm | bag (1 pce) | |
| 1XH7000A1005 | 273 (DN250) black | 14.14 kg | 75x424x334 mm | bag (1 pce) | |
| 1XH7000A1006 | 273 (DN250) black | 14.14 kg | 75x424x334 mm | bag (1 pce) | |
| 1XH7000A3005 | 323.9 (DN300) black | 16.7 kg | 75x480x390 mm | bag (1 pce) | |
| 1XH7000A3006 | 323.9 (DN300) black | 16.7 kg | 75x480x390 mm | bag (1 pce) |
| art. No | size | d1 | DN1 | l1 | d2 | DN2 | l2 |
|---|---|---|---|---|---|---|---|
| 1XH700020005 | 60.3 (DN50) black | 60.3 | DN50 | 25 | 60.3 | DN50 | 25 |
| 1XH700020006 | 60.3 (DN50) black | 60.3 | DN50 | 25 | 60.3 | DN50 | 25 |
| 1XH700025005 | 73 (DN65) black | 73.0 | DN65 | 25 | 73.0 | DN65 | 25 |
| 1XH700025006 | 73 (DN65) black | 73.0 | DN65 | 25 | 73.0 | DN65 | 25 |
| 1XH700030005 | 88.9 (DN80) black | 88.9 | DN80 | 26 | 88.9 | DN80 | 26 |
| 1XH700030006 | 88.9 (DN80) black | 88.9 | DN80 | 26 | 88.9 | DN80 | 26 |
| 1XH700045005 | 114.3 (DN100) black | 114.3 | DN100 | 28 | 114.3 | DN100 | 28 |
| 1XH700045006 | 114.3 (DN100) black | 114.3 | DN100 | 28 | 114.3 | DN100 | 28 |
| 1XH700065005 | 168.3 (DN150) black | 168.3 | DN150 | 29 | 168.3 | DN150 | 29 |
| 1XH700065006 | 168.3 (DN150) black | 168.3 | DN150 | 29 | 168.3 | DN150 | 29 |
| 1XH700085005 | 219.1 (DN200) black | 219.1 | DN200 | 35 | 219.1 | DN200 | 35 |
| 1XH700085006 | 219.1 (DN200) black | 219.1 | DN200 | 35 | 219.1 | DN200 | 35 |
| 1XH7000A1005 | 273 (DN250) black | 273.0 | DN250 | 38 | 273.0 | DN250 | 38 |
| 1XH7000A1006 | 273 (DN250) black | 273.0 | DN250 | 38 | 273.0 | DN250 | 38 |
| 1XH7000A3005 | 323.9 (DN300) black | 323.9 | DN300 | 38 | 323.9 | DN300 | 38 |
| 1XH7000A3006 | 323.9 (DN300) black | 323.9 | DN300 | 38 | 323.9 | DN300 | 38 |
| color | black |
|---|---|
| materials | cast iron (ASTM A536 65-45-12) |
| finishing | varnished |
| manufacturer | Shurjoint |
| shape | straight |
| connection type | groove (coupling) |
| sealing | EPDM, NBR (Nitrile) |
| product group | fittings |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| intrastat code | 73071910 |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| type | XH-70EP |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Cast iron |
| Surface protection connection 1 | Lacquered |
| Material connection 2 | Cast iron |
| Surface protection connection 2 | Lacquered |
| Shape | Straight |
| Model | 1-part |
| Reducing | No |
| Eccentric | No |
| System specific | No |
| Connection 1 | Ribbing groove (groove coupling) |
| Connection 2 | Ribbing groove (groove coupling) |
| Main colour fitting | Black |
| With buffer stud | No |
| High tensile strength | Yes |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
| Gastec QA - AR 214 (H2) | No |
