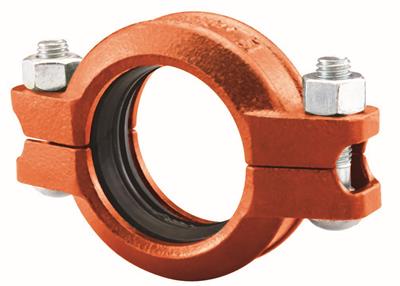

Product Image for VSH Shurjoint extra heavy rigid coupling (2 x groove), NBR gasket

group: XH-1000T

XH-1000T is the designation for model XH-1000 with a Grade T NBR gasket. The VSH Shurjoint Model XH-1000 is an extra heavy rigid coupling designed for high pressure services up to 70 bar, supplied with a standard C-shaped gasket and heavy duty bolts and nuts. The coupling is painted in orange color. The Model XH-1000 can be installed on standard roll- or standard cut-grooved pipes. For sizes 2” through 4”, there will be a gap between the bolts pads after installed and bolts and nuts shall be always tightened with a torque 80-95 Nm. For sizes 6” and above, the bolt pads make a metal-to-metal contact when properly installed and there is no torque wrench requirement. The Model XH-1000 can be also used for stainless steel pipe.

read more

read less

heating

cooling

compressed air

vacuum

show all

show less

datacenters

commercial building

industry

tunneling

mining

building installations

show all

show less

no approvals available

item

size

dimensions

weight

packaging

gtin

item

size

60.3 (DN50) orange UNC

dimensions

49x145x90 mm

weight

1.56 kg

packaging

-

gtin

-

item

size

73 (DN65) orange UNC

dimensions

49x168x102

weight

1.7 kg

packaging

-

gtin

-

item

size

88.9 (DN80) orange UNC

dimensions

49x188x123 mm

weight

2.17 kg

packaging

-

gtin

-

item

size

114.3 (DN100) orange UNC

dimensions

53x222x155 mm

weight

3.81 kg

packaging

-

gtin

-

item

size

114.3 (DN100) green UNC

dimensions

53x222x155 mm

weight

3.81 kg

packaging

-

gtin

-

item

size

168.3 (DN150) orange UNC

dimensions

57x295x218 mm

weight

6.73 kg

packaging

-

gtin

-

item

size

168.3 (DN150) green UNC

dimensions

57x295x218 mm

weight

6.73 kg

packaging

-

gtin

-

item

size

219.1 (DN200) orange UNC

dimensions

70x364x275 mm

weight

10.93 kg

packaging

-

gtin

-

item

size

273 (DN250) orange UNC

dimensions

75x424x334 mm

weight

14.2 kg

packaging

-

gtin

-

item

size

323.9 (DN300) orange UNC

dimensions

75x480x390 mm

weight

16.7 kg

packaging

-

gtin

-

item

size

d1

DN1

l1

z1

d2

DN2

l2

z2

item

1XH000020002

size

60.3 (DN50) orange UNC

d1

60.3

DN1

DN50

l1

25

z1

2

d2

60.3

DN2

DN50

l2

25

z2

2

item

1XH000025002

size

73 (DN65) orange UNC

d1

73.0

DN1

DN65

l1

25

z1

2

d2

73.0

DN2

DN65

l2

25

z2

2

item

1XH000030002

size

88.9 (DN80) orange UNC

d1

88.9

DN1

DN80

l1

25

z1

2

d2

88.9

DN2

DN80

l2

25

z2

2

item

1XH000045002

size

114.3 (DN100) orange UNC

d1

114.3

DN1

DN100

l1

27

z1

3

d2

114.3

DN2

DN100

l2

27

z2

3

item

1XH000045004

size

114.3 (DN100) green UNC

d1

114.3

DN1

DN100

l1

27

z1

3

d2

114.3

DN2

DN100

l2

27

z2

3

item

1XH000065002

size

168.3 (DN150) orange UNC

d1

168.3

DN1

DN150

l1

29

z1

3

d2

168.3

DN2

DN150

l2

29

z2

3

item

1XH000065004

size

168.3 (DN150) green UNC

d1

168.3

DN1

DN150

l1

29

z1

3

d2

168.3

DN2

DN150

l2

29

z2

3

item

1XH000085002

size

219.1 (DN200) orange UNC

d1

219.1

DN1

DN200

l1

35

z1

3

d2

219.1

DN2

DN200

l2

35

z2

3

item

1XH0000A1002

size

273 (DN250) orange UNC

d1

273.0

DN1

DN250

l1

38

z1

3

d2

273.0

DN2

DN250

l2

38

z2

3

item

1XH0000A3002

size

323.9 (DN300) orange UNC

d1

323.9

DN1

DN300

l1

38

z1

3

d2

323.9

DN2

DN300

l2

38

z2

3

characteristics

color

green, orange

materials

cast iron (ASTM A536 65-45-12)

finishing

varnished

connection type

groove (coupling)

sealing

NBR (Nitrile)

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

country of origin

Taiwan

brand

VSH

series

Shurjoint

type

XH-1000T

link to sheet | pdf

MSDS_Shurjoint_Orange_paint

image for XH-1000

image | jpg

XH-1000

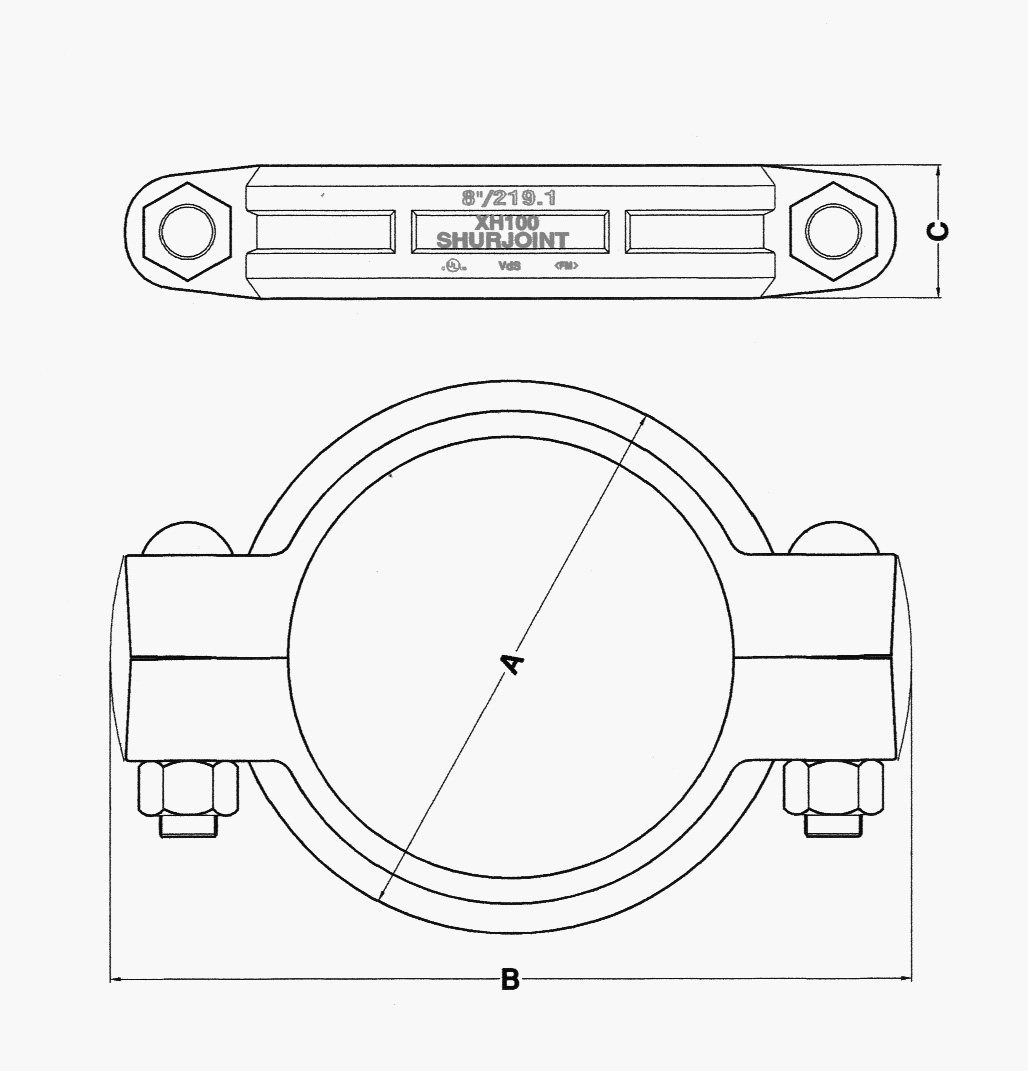

image for Diagram
