Combined Shape
Combined Shape

products

VSH Shurjoint wrought tee (3 x groove)

group: W120

VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality.
  • VSH Shurjoint can be perfectly combined with other VSH systems such as VSH XPress, VSH SudoPress and VSH PowerPress
  • the 'Aalberts integrated piping systems' range covers a fully integrated system from ¼" to 104"
read more
read less

applications

heating

heating

cooling

cooling

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item

size

dimensions

weight

packaging

gtin

size

355.6 (DN350) orange

dimensions

558x356x457 mm

weight

50 kg

packaging

-

gtin

-

size

355.6 (DN350) galvanized

dimensions

558x356x457 mm

weight

50 kg

packaging

-

gtin

-

size

406.4 (DN400) orange

dimensions

610x407x509 mm

weight

60 kg

packaging

unpackaged (1 pce)

gtin

04710574450526

size

406.4 (DN400) galvanized

dimensions

610x407x509 mm

weight

60 kg

packaging

-

gtin

-

size

457.2 (DN450) orange

dimensions

686x457x572 mm

weight

77 kg

packaging

-

gtin

-

size

457.2 (DN450) galvanized

dimensions

686x457x572 mm

weight

77 kg

packaging

-

gtin

-

size

508 (DN500) orange

dimensions

762x508x635 mm

weight

95 kg

packaging

-

gtin

-

size

508 (DN500) galvanized

dimensions

762x508x635 mm

weight

95 kg

packaging

-

gtin

-

size

609.6 (DN600) orange

dimensions

864x610x737 mm

weight

121.5 kg

packaging

-

gtin

-

size

609.6 (DN600) galvanized

dimensions

864x610x737 mm

weight

121.5 kg

packaging

-

gtin

-

item

size

d1

DN1

l1

d2

DN2

l2

d3

DN3

l3

size

355.6 (DN350) orange

d1

355.6

DN1

DN350

l1

279

d2

355.6

DN2

DN350

l2

279

d3

355.6

DN3

DN350

l3

279

size

355.6 (DN350) galvanized

d1

355.6

DN1

DN350

l1

279

d2

355.6

DN2

DN350

l2

279

d3

355.6

DN3

DN350

l3

279

size

406.4 (DN400) orange

d1

406.4

DN1

DN400

l1

305

d2

406.4

DN2

DN400

l2

305

d3

406.4

DN3

DN400

l3

305

size

406.4 (DN400) galvanized

d1

406.4

DN1

DN400

l1

305

d2

406.4

DN2

DN400

l2

305

d3

406.4

DN3

DN400

l3

305

size

457.2 (DN450) orange

d1

457.2

DN1

DN450

l1

343

d2

457.2

DN2

DN450

l2

343

d3

457.2

DN3

DN450

l3

343

size

457.2 (DN450) galvanized

d1

457.2

DN1

DN450

l1

343

d2

457.2

DN2

DN450

l2

343

d3

457.2

DN3

DN450

l3

343

size

508 (DN500) orange

d1

508.0

DN1

DN500

l1

381

d2

508.0

DN2

DN500

l2

381

d3

508.0

DN3

DN500

l3

381

size

508 (DN500) galvanized

d1

508.0

DN1

DN500

l1

381

d2

508.0

DN2

DN500

l2

381

d3

508.0

DN3

DN500

l3

381

size

609.6 (DN600) orange

d1

609.6

DN1

DN600

l1

432

d2

609.6

DN2

DN600

l2

432

d3

609.6

DN3

DN600

l3

432

size

609.6 (DN600) galvanized

d1

609.6

DN1

DN600

l1

432

d2

609.6

DN2

DN600

l2

432

d3

609.6

DN3

DN600

l3

432

technical drawing for product

characteristics

color

silver, orange

materials

steel (ASTM A53 Grade B)

finishing

hot dip galvanized, varnished

connection type

groove (fitting)

general

product group

fittings (demountable)

ETIM class

EC003025 Fitting with 3 connections

country of origin

Taiwan

brand

VSH

series

Shurjoint

type

W120

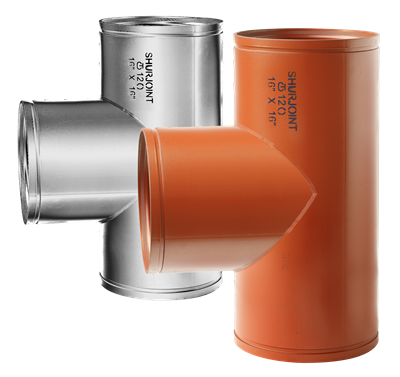

image for W120-Combi

image | png

W120-Combi

image for Diagram

diagram | png

Diagram

submittal sheet | pdf

Datasheet

installation- & maintenance document | pdf

VSH Shurjoint installation instructions

link to sheet | pdf

MSDS_Shurjoint_Orange_paint

image for W120-GALV

image | png

W120-GALV

image for W120-OR

image | png

W120-OR

label

value

label

Material connection 1

value

Steel

label

Material connection 2

value

Steel

label

Material connection 3

value

Steel

label

Model

value

T-piece

label

Reducing

value

No

label

Multi-part

value

No

label

System specific

value

No

label

Connection 1

value

Groove

label

Connection 2

value

Groove

label

Connection 3

value

Groove

label

High tensile strength

value

Yes

label

With sealing rings/gaskets

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

With buffer stud

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

any questions?

we are here to help

product selected products selected

you can compare up to 2 products

you can compare up to 4 products

[saving downloads] requires an account

send by email

optional
optional
optional
