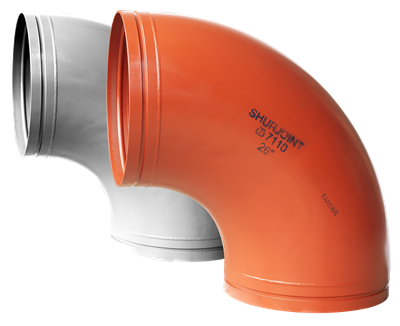

VSH Shurjoint wrought long radius 90° elbow (2 x groove)

VSH Shurjoint wrought long radius 90° elbow (2 x groove)

W110LR

VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality.

  • VSH Shurjoint can be perfectly combined with other VSH systems such as VSH XPress, VSH SudoPress and VSH PowerPress
  • the 'Aalberts integrated piping systems' range covers a fully integrated system from 6 mm to 104 ”

applications

heating cooling compressed air

solutions

building installations industry
code size weight dimensions packaging gtin
1W10L00A1001 273 (DN250) orange 35.4 kg 518x518x273 mm
1W10L00A1003 273 (DN250) galvanized 35.4 kg 518x518x273 mm
1W10L00A3001 323.9 (DN300) orange 52 kg 619x619x324 mm
1W10L00A3003 323.9 (DN300) galvanized 52 kg 619x619x324 mm
1W10L00A4001 355.6 (DN350) orange 64 kg 711x711x356 mm
1W10L00A4003 355.6 (DN350) galvanized 64 kg 711x711x356 mm
1W10L00A6001 406.4 (DN400) orange 89 kg 814x814x407 mm
1W10L00A6002 406.4 (DN400) red 89 kg 813x813x406 mm
1W10L00A6003 406.4 (DN400) galvanized 89 kg 813x813x406 mm
1W10L00A8001 457.2 (DN450) orange 114.5 kg 915x915x457 mm
1W10L00A8002 457.2 (DN450) red 114.5 kg 915x915x457 mm
1W10L00A8003 457.2 (DN450) galvanized 114.5 kg 915x915x457 mm
1W10L00B0001 508 (DN500) orange 134 kg 1016x1016x508 mm
1W10L00B0002 508 (DN500) red 134 kg 1016x1016x508 mm
1W10L00B0003 508 (DN500) galvanized 134 kg 1016x1016x508 mm
1W10L00B4001 609.6 (DN600) orange 219 kg 1219x1219x610 mm
1W10L00B4002 609.6 (DN600) red 219 kg 1219x1219x610 mm
1W10L00B4003 609.6 (DN600) galvanized 219 kg 1219x1219x610 mm
art. No size d1 DN1 l1 d2 DN2 l2 angle
1W10L00A1001 273 (DN250) orange 273.0 DN250 381 273.0 DN250 381 90
1W10L00A1003 273 (DN250) galvanized 273.0 DN250 381 273.0 DN250 381 90
1W10L00A3001 323.9 (DN300) orange 323.9 DN300 457 323.9 DN300 457 90
1W10L00A3003 323.9 (DN300) galvanized 323.9 DN300 457 323.9 DN300 457 90
1W10L00A4001 355.6 (DN350) orange 355.6 DN350 533 355.6 DN350 533 90
1W10L00A4003 355.6 (DN350) galvanized 355.6 DN350 533 355.6 DN350 533 90
1W10L00A6001 406.4 (DN400) orange 406.4 DN400 610 406.4 DN400 610 90
1W10L00A6002 406.4 (DN400) red 406.4 DN400 610 406.4 DN400 610 90
1W10L00A6003 406.4 (DN400) galvanized 406.4 DN400 610 406.4 DN400 610 90
1W10L00A8001 457.2 (DN450) orange 457.2 DN450 686 457.2 DN450 686 90
1W10L00A8002 457.2 (DN450) red 457.2 DN450 686 457.2 DN450 686 90
1W10L00A8003 457.2 (DN450) galvanized 457.2 DN450 686 457.2 DN450 686 90
1W10L00B0001 508 (DN500) orange 508.0 DN500 762 508.0 DN500 762 90
1W10L00B0002 508 (DN500) red 508.0 DN500 762 508.0 DN500 762 90
1W10L00B0003 508 (DN500) galvanized 508.0 DN500 762 508.0 DN500 762 90
1W10L00B4001 609.6 (DN600) orange 609.6 DN600 914 609.6 DN600 914 90
1W10L00B4002 609.6 (DN600) red 609.6 DN600 914 609.6 DN600 914 90
1W10L00B4003 609.6 (DN600) galvanized 609.6 DN600 914 609.6 DN600 914 90

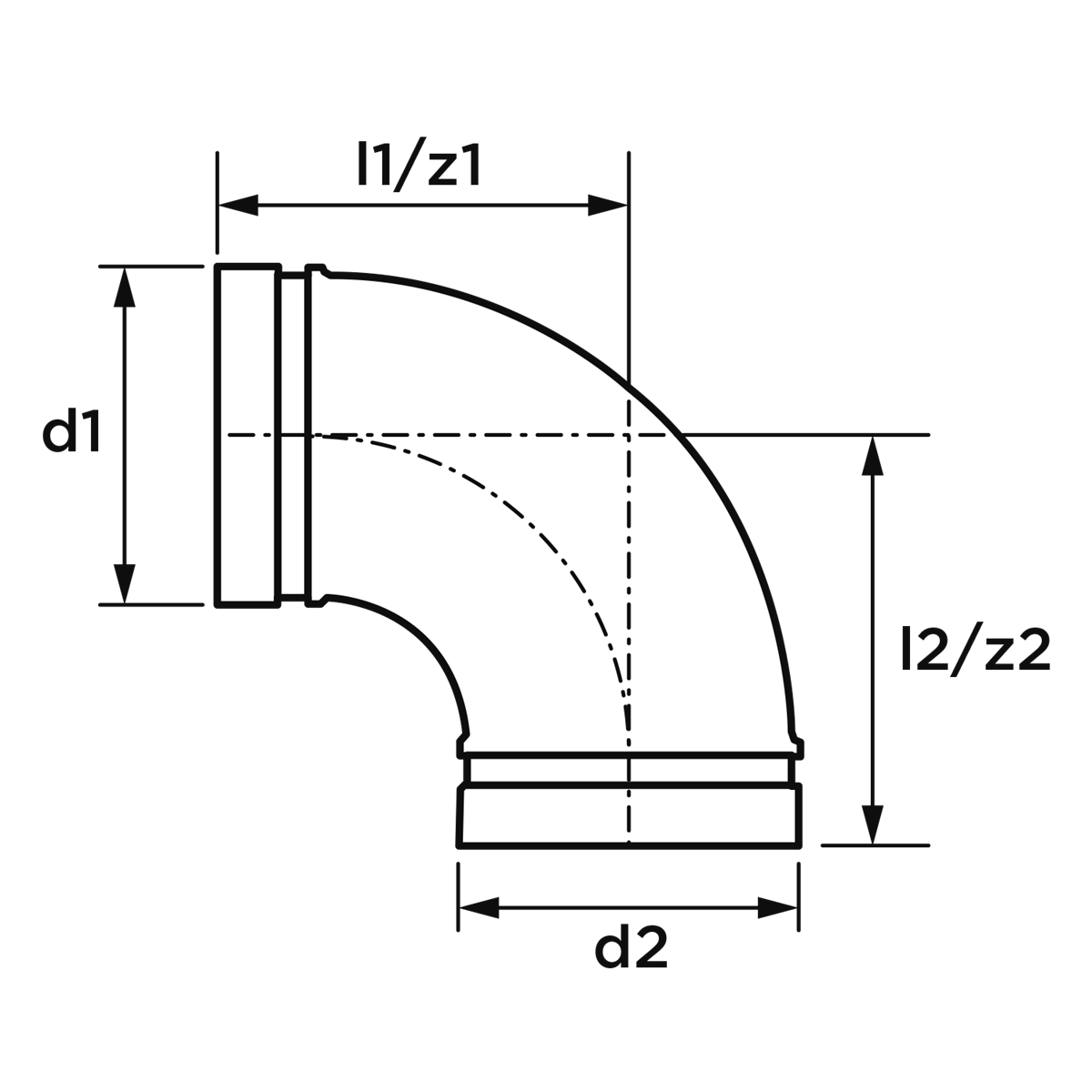

see above for the diagram with these dimensions.
color silver, red, orange
materials steel (ASTM A53 Grade B)
finishing galvanised, varnished
manufacturer Shurjoint
shape Elbow (90º)
connection type groove (fitting)
product group fittings
ETIM class EC003024 Fitting with 2 connections
intrastat code 73071910
country of origin Taiwan
brand VSH
series Shurjoint
type W110LR
label value
ETIM class EC003024 Fitting with 2 connections
Material connection 1 Steel
Material connection 2 Steel
Shape Bend
Model 1-part
Bend angle 90°
Reducing No
Eccentric No
System-specific No
Connection 1 Groove
Connection 2 Groove
With buffer stud No
High tensile strength Yes
With sealing rings/gaskets No
Capped No
With connection indicator No
With drain valve No
With de-aerator No
FM quality mark No
LPCB quality mark No
ULC quality mark No
UL quality mark No
VdS quality mark No
DVGW quality mark for gas No
DVGW quality mark for water No
KIWA certified No
Gastec QA mark No
KOMO certified No
