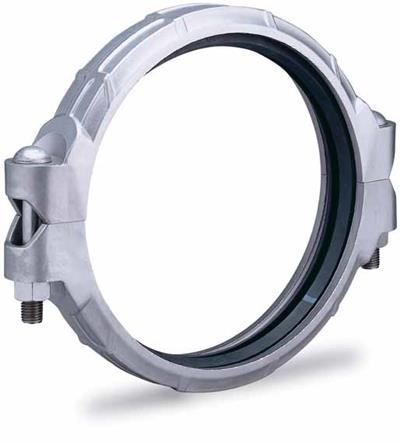

SS-8XEpw
SS-8XEpw is the designation for model SS-8X with a Grade E-pw EPDM gasket. VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality.
approvals
code | size | weight | dimensions | packaging | gtin |
---|---|---|---|---|---|
1SS8X0015006 | 48.3 (DN40) 316 | 0.96 kg | 46x123x78 mm | ||
1SS8X0045006 | 114.3 (DN100) 316 | 2.4 kg | 52x201x152 mm |

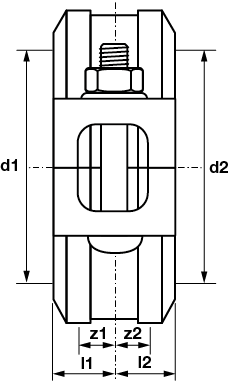

art. No | size | d1 | DN1 | l1 | z1 | d2 | DN2 | l2 | z2 |
---|---|---|---|---|---|---|---|---|---|
1SS8X0015006 | 48.3 (DN40) 316 | 48.3 | DN40 | 23 | 1 | 48.3 | DN40 | 23 | 1 |
1SS8X0045006 | 114.3 (DN100) 316 | 114.3 | DN100 | 27 | 2 | 114.3 | DN100 | 27 | 2 |
color | silver |
---|---|
materials | stainless steel (Stainless steel 316 (1.4401)) |
finishing | none |
manufacturer | Shurjoint |
connection type | groove (coupling) |
sealing | EPDM |
product group | fittings (demountable) |
---|---|
ETIM class | EC003024 Fitting with 2 connections |
country of origin | Taiwan |
brand | VSH |
series | Shurjoint Stainless Steel |
type | SS-8XEpw |
label | value |
---|---|
ETIM class | EC003024 Fitting with 2 connections |
Material connection 1 | Stainless steel |
Material quality connection 1 | Stainless steel 316 (1.4401) |
Surface protection connection 1 | Untreated |
Surface treatment connection 1 | Untreated |
Material connection 2 | Stainless steel |
Material quality connection 2 | Stainless steel 316 (1.4401) |
Surface protection connection 2 | Untreated |
Surface treatment connection 2 | Untreated |
Shape | Straight |
Reducing | No |
Eccentric | No |
System-specific | Yes |
Connection 1 | Ribbing groove (groove coupling) |
Connection 2 | Ribbing groove (groove coupling) |
Main colour fitting | Grey |
Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
With buffer stud | No |
Max. operating pressure at 20 °C | 52bar |
Max. operating pressure at 20 °C (imperial) | 754.2psi |
With sealing rings/gaskets | No |
Capped | No |
With connection indicator | No |
With drain valve | No |
With de-aerator | No |
FM quality mark | No |
LPCB quality mark | No |
ULC quality mark | No |
UL quality mark | No |
VdS quality mark | No |
DVGW quality mark for gas | No |
DVGW quality mark for water | No |
Certified according to NF 545 | No |
KIWA certified | No |
Gastec QA mark | No |
KOMO certified | No |
