group: SS-8E
SS-8E is the designation for model SS-8 with a Grade E EPDM gasket. VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality.
potable water
heating
cooling
compressed air
sprinkler
dry fire main
building installations
fire protection
industry
CRN
FM
QB (CSTBat)
SPF
UL
ULc
code | size | weight | dimensions | packaging | gtin |
---|---|---|---|---|---|
1SS080010001 | 33.4 (DN25) 304 | 0.48 kg | 44x88x56 mm | ||
1SS080010002 | 33.4 (DN25) 316 | 0.48 kg | 44x88x56 mm | ||
1SS080012001 | 42.2 (DN32) 304 | 0.49 kg | 44x98x65 mm | ||
1SS080012002 | 42.2 (DN32) 316 | 0.49 kg | 44x98x65 mm | ||
1SS080015001 | 48.3 (DN40) 304 | 0.54 kg | 44x105x71 mm | ||
1SS080015002 | 48.3 (DN40) 316 | 0.54 kg | 44x105x71 mm | ||
1SS080020001 | 60.3 (DN50) 304 | 0.7 kg | 44x124x83 mm | ||
1SS080020002 | 60.3 (DN50) 316 | 0.7 kg | 44x124x83 mm | ||
1SS080025001 | 73 (DN65) 304 | 0.81 kg | 44x140x96 mm | ||
1SS080025002 | 73 (DN65) 316 | 0.81 kg | 44x140x96 mm | ||
1SS080029001 | 76.1 (DN65) 304 | 0.82 kg | 44x145x99 mm | ||
1SS080029002 | 76.1 (DN65) 316 | 0.82 kg | 44x145x99 mm | ||
1SS080030001 | 88.9 (DN80) 304 | 1 kg | 44x157x111 mm | ||
1SS080030002 | 88.9 (DN80) 316 | 1 kg | 44x157x111 mm | ||
1SS080045001 | 114.3 (DN100) 304 | 1.65 kg | 50x200x143 mm | ||
1SS080045002 | 114.3 (DN100) 316 | 1.65 kg | 50x200x143 mm | ||
1SS080052001 | 139.7 (DN125) 304 | 2.21 kg | 50x231x171 mm | ||
1SS080052002 | 139.7 (DN125) 316 | 2.21 kg | 50x231x171 mm | ||
1SS080055001 | 141.3 (DN125) 304 | 2.21 kg | 50x226x171 mm | ||
1SS080055002 | 141.3 (DN125) 316 | 2.21 kg | 50x226x171 mm | ||
1SS080062001 | 165.1 (DN150) 304 | 2.73 kg | 53x253x194 mm | ||
1SS080062002 | 165.1 (DN150) 316 | 2.73 kg | 53x253x194 mm | ||
1SS080065001 | 168.3 (DN150) 304 | 2.86 kg | 53x253x198 mm | ||
1SS080065002 | 168.3 (DN150) 316 | 2.86 kg | 53x253x198 mm | ||
1SS080080001 | 216.3 304 | 5.13 kg | 60x346x251 mm | ||
1SS080085001 | 219.1 (DN200) 304 | 6.38 kg | 62x337x255 mm | ||
1SS080085002 | 219.1 (DN200) 316 | 6.38 kg | 62x337x255 mm |
art. No | size | d1 | DN1 | l1 | d2 | DN2 | l2 |
---|---|---|---|---|---|---|---|
1SS080010001 | 33.4 (DN25) 304 | 33.4 | DN25 | 22 | 33.4 | DN25 | 22 |
1SS080010002 | 33.4 (DN25) 316 | 33.4 | DN25 | 22 | 33.4 | DN25 | 22 |
1SS080012001 | 42.2 (DN32) 304 | 42.2 | DN32 | 22 | 42.2 | DN32 | 22 |
1SS080012002 | 42.2 (DN32) 316 | 42.2 | DN32 | 22 | 42.2 | DN32 | 22 |
1SS080015001 | 48.3 (DN40) 304 | 48.3 | DN40 | 22 | 48.3 | DN40 | 22 |
1SS080015002 | 48.3 (DN40) 316 | 48.3 | DN40 | 22 | 48.3 | DN40 | 22 |
1SS080020001 | 60.3 (DN50) 304 | 60.3 | DN50 | 22 | 60.3 | DN50 | 22 |
1SS080020002 | 60.3 (DN50) 316 | 60.3 | DN50 | 22 | 60.3 | DN50 | 22 |
1SS080025001 | 73 (DN65) 304 | 73.0 | DN65 | 22 | 73.0 | DN65 | 22 |
1SS080025002 | 73 (DN65) 316 | 73.0 | DN65 | 22 | 73.0 | DN65 | 22 |
1SS080029001 | 76.1 (DN65) 304 | 76.1 | DN65 | 22 | 76.1 | DN65 | 22 |
1SS080029002 | 76.1 (DN65) 316 | 76.1 | DN65 | 22 | 76.1 | DN65 | 22 |
1SS080030001 | 88.9 (DN80) 304 | 88.9 | DN80 | 22 | 88.9 | DN80 | 22 |
1SS080030002 | 88.9 (DN80) 316 | 88.9 | DN80 | 22 | 88.9 | DN80 | 22 |
1SS080045001 | 114.3 (DN100) 304 | 114.3 | DN100 | 25 | 114.3 | DN100 | 25 |
1SS080045002 | 114.3 (DN100) 316 | 114.3 | DN100 | 25 | 114.3 | DN100 | 25 |
1SS080052001 | 139.7 (DN125) 304 | 139.7 | DN125 | 25 | 139.7 | DN125 | 25 |
1SS080052002 | 139.7 (DN125) 316 | 139.7 | DN125 | 25 | 139.7 | DN125 | 25 |
1SS080055001 | 141.3 (DN125) 304 | 141.3 | DN125 | 25 | 141.3 | DN125 | 25 |
1SS080055002 | 141.3 (DN125) 316 | 141.3 | DN125 | 25 | 141.3 | DN125 | 25 |
1SS080062001 | 165.1 (DN150) 304 | 165.1 | DN150 | 27 | 165.1 | DN150 | 27 |
1SS080062002 | 165.1 (DN150) 316 | 165.1 | DN150 | 27 | 165.1 | DN150 | 27 |
1SS080065001 | 168.3 (DN150) 304 | 168.3 | DN150 | 27 | 168.3 | DN150 | 27 |
1SS080065002 | 168.3 (DN150) 316 | 168.3 | DN150 | 27 | 168.3 | DN150 | 27 |
1SS080080001 | 216.3 304 | 216.3 | DN200 | 30 | 216.3 | DN200 | 30 |
1SS080085001 | 219.1 (DN200) 304 | 219.1 | DN200 | 31 | 219.1 | DN200 | 31 |
1SS080085002 | 219.1 (DN200) 316 | 219.1 | DN200 | 31 | 219.1 | DN200 | 31 |
color | silver |
---|---|
materials | stainless steel (Stainless steel 304 (1.4301), Stainless steel 316 (1.4401), Stainless steel 316L (1.4404), CD3MN (1.4462)) |
finishing | none |
manufacturer | Shurjoint |
shape | straight |
connection type | groove (coupling) |
sealing | EPDM |
product group | fittings (demountable) |
---|---|
ETIM class | EC003024 Fitting with 2 connections |
country of origin | Taiwan |
brand | VSH |
series | Shurjoint Stainless Steel |
type | SS-8E |
FM certifications |
download | |
SS-8 image |
jpg | download |
UL certifications |
download | |
ULc certifications |
download | |
VSH Shurjoint CSTBat certifications |
download | |

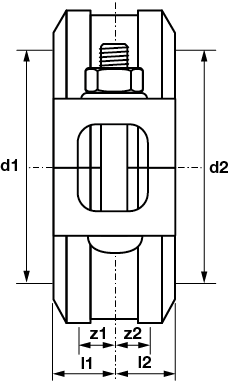

Diagram diagram |
png | download |
Datasheet submittal sheet |
download | |
VSH Shurjoint Installation Handbook installation- & maintenance document |
download |
label | value |
---|---|
ETIM class | EC003024 Fitting with 2 connections |
Material connection 1 | Stainless steel |
Surface protection connection 1 | Untreated |
Surface treatment connection 1 | Untreated |
Material connection 2 | Stainless steel |
Surface protection connection 2 | Untreated |
Surface treatment connection 2 | Untreated |
Shape | Straight |
Reducing | No |
Eccentric | No |
System specific | No |
Connection 1 | Ribbing groove (groove coupling) |
Connection 2 | Ribbing groove (groove coupling) |
Main colour fitting | Grey |
Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
With buffer stud | No |
With thermal insulation | No |
With sealing rings/gaskets | No |
Capped | No |
With connection indicator | No |
With drain valve | No |
With de-aerator | No |
LPCB quality mark | No |
VdS quality mark | No |
DVGW quality mark for gas | No |
DVGW quality mark for water | No |
KIWA certified | No |
Gastec QA mark | No |
KOMO certified | No |
Gastec QA - AR 214 (H2) | No |
