SS-7Epw
SS-7Epw is the designation for model SS-7 with a Grade E-pw EPDM gasket. The Model SS-7 Stainless Steel Rigid Coupling is the ideal coupling for use with Sch. 5S, Sch. 10S or Sch. 40S stainless steel pipe where a rigid connection is desired.
The Model SS-7 features a tongue and groove mechanism and a heavy duty bolt pad design resulting in a positive rigid connection.
The SS-7 couplings are comprised of two identical CF8 (304) or CF8M (316) housing segments, EPDM gasket and stainless steel track bolts and heavy duty nuts.
applications
solutions
approvals
| code | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 1SS070012004 | 42.2 (DN32) 304 | 0.71 kg | 45x105x68 mm | ||
| 1SS070012012 | 42.2 (DN32) 316 | 0.71 kg | 45x105x68 mm | ||
| 1SS070015004 | 48.3 (DN40) 304 | 0.75 kg | 46x108x74 mm | ||
| 1SS070015012 | 48.3 (DN40) 316 | 0.75 kg | 46x108x74 mm | ||
| 1SS070020004 | 60.3 (DN50) 304 | 0.9 kg | 46x125x86 mm | ||
| 1SS070020005 | 60.3 (DN50) 316 | 0.9 kg | 46x125x86 mm | ||
| 1SS070025004 | 73 (DN65) 304 | 0.83 kg | 46x138x100 mm | ||
| 1SS070025012 | 73 (DN65) 316 | 0.83 kg | 46x138x100 mm | ||
| 1SS070029004 | 76.1 (DN65) 304 | 0.99 kg | 46x143x100 mm | ||
| 1SS070030004 | 88.9 (DN80) 304 | 1.18 kg | 46x160x112 mm | ||
| 1SS070030012 | 88.9 (DN80) 316 | 1.18 kg | 46x160x112 mm | ||
| 1SS070045004 | 114.3 (DN100) 304 | 2.08 kg | 51x207x143 mm | ||
| 1SS070045012 | 114.3 (DN100) 316 | 2.08 kg | 51x207x143 mm | ||
| 1SS070065004 | 168.3 (DN150) 304 | 3.12 kg | 51x256x201 mm | ||
| 1SS070065012 | 168.3 (DN150) 316 | 3.12 kg | 51x256x201 mm | ||
| 1SS070085004 | 219.1 (DN200) 304 | 6.41 kg | 62x333x264 mm | ||
| 1SS070085012 | 219.1 (DN200) 316 | 6.41 kg | 62x333x264 mm |

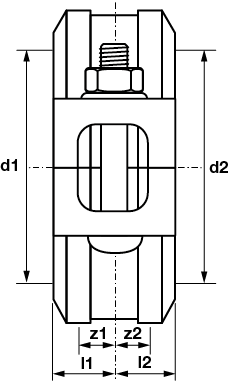

| art. No | size | d1 | DN1 | l1 | d2 | DN2 | l2 |
|---|---|---|---|---|---|---|---|
| 1SS070012004 | 42.2 (DN32) 304 | 42.2 | DN32 | 23 | 42.2 | DN32 | 23 |
| 1SS070012012 | 42.2 (DN32) 316 | 42.2 | DN32 | 23 | 42.2 | DN32 | 23 |
| 1SS070015004 | 48.3 (DN40) 304 | 48.3 | DN40 | 23 | 48.3 | DN40 | 23 |
| 1SS070015012 | 48.3 (DN40) 316 | 48.3 | DN40 | 23 | 48.3 | DN40 | 23 |
| 1SS070020004 | 60.3 (DN50) 304 | 60.3 | DN50 | 23 | 60.3 | DN50 | 23 |
| 1SS070020005 | 60.3 (DN50) 316 | 60.3 | DN50 | 23 | 60.3 | DN50 | 23 |
| 1SS070025004 | 73 (DN65) 304 | 73.0 | DN65 | 23 | 73.0 | DN65 | 23 |
| 1SS070025012 | 73 (DN65) 316 | 73.0 | DN65 | 23 | 73.0 | DN65 | 23 |
| 1SS070029004 | 76.1 (DN65) 304 | 76.1 | DN65 | 23 | 76.1 | DN65 | 23 |
| 1SS070030004 | 88.9 (DN80) 304 | 88.9 | DN80 | 23 | 88.9 | DN80 | 23 |
| 1SS070030012 | 88.9 (DN80) 316 | 88.9 | DN80 | 23 | 88.9 | DN80 | 23 |
| 1SS070045004 | 114.3 (DN100) 304 | 114.3 | DN100 | 26 | 114.3 | DN100 | 26 |
| 1SS070045012 | 114.3 (DN100) 316 | 114.3 | DN100 | 26 | 114.3 | DN100 | 26 |
| 1SS070065004 | 168.3 (DN150) 304 | 168.3 | DN150 | 26 | 168.3 | DN150 | 26 |
| 1SS070065012 | 168.3 (DN150) 316 | 168.3 | DN150 | 26 | 168.3 | DN150 | 26 |
| 1SS070085004 | 219.1 (DN200) 304 | 219.1 | DN200 | 31 | 219.1 | DN200 | 31 |
| 1SS070085012 | 219.1 (DN200) 316 | 219.1 | DN200 | 31 | 219.1 | DN200 | 31 |
| color | silver |
|---|---|
| materials | stainless steel (Stainless steel 304 (1.4301), Stainless steel 316 (1.4401)) |
| finishing | none |
| manufacturer | Shurjoint |
| shape | straight |
| connection type | groove (coupling) |
| product group | fittings (demountable) |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint Stainless Steel |
| type | SS-7Epw |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Stainless steel |
| Surface protection connection 1 | Untreated |
| Surface treatment connection 1 | Untreated |
| Material connection 2 | Stainless steel |
| Surface protection connection 2 | Untreated |
| Surface treatment connection 2 | Untreated |
| Shape | Straight |
| Model | 1-part |
| Reducing | No |
| Eccentric | No |
| System specific | No |
| Connection 1 | Ribbing groove (groove coupling) |
| Connection 2 | Ribbing groove (groove coupling) |
| Main colour fitting | Grey |
| High tensile strength | Yes |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | Yes |
| UL quality mark | Yes |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
