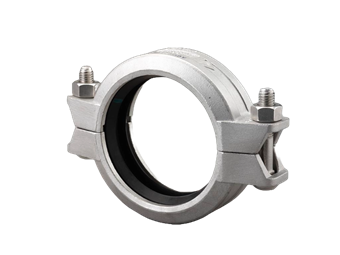

VSH Shurjoint stainless steel rigid coupling (2 x groove), EPDM gasket

code

size

dimensions

weight

packaging

gtin

code

1SS070012001

size

1 1/4" 304

dimensions

45x105x68 mm

weight

0.71 kg

packaging

-

gtin

-

code

1SS070012002

size

1 1/4" 316

dimensions

45x105x68 mm

weight

0.71 kg

packaging

-

gtin

-

code

1SS070015001

size

1 1/2" 304

dimensions

46x108x74 mm

weight

0.75 kg

packaging

-

gtin

-

code

1SS070015002

size

1 1/2" 316

dimensions

46x108x74 mm

weight

0.75 kg

packaging

-

gtin

-

code

1SS070020001

size

2" 304

dimensions

46x125x86 mm

weight

0.9 kg

packaging

Box (16 pce)

gtin

04710574642273

code

1SS070020002

size

2" 316

dimensions

46x125x86 mm

weight

0.9 kg

packaging

-

gtin

-

code

1SS070025001

size

2 1/2" 304

dimensions

46x138x100 mm

weight

0.83 kg

packaging

-

gtin

-

code

1SS070025002

size

2 1/2" 316

dimensions

46x138x100 mm

weight

0.83 kg

packaging

-

gtin

-

code

1SS070029001

size

76.1 (DN65) 304

dimensions

46x143x100 mm

weight

1 kg

packaging

-

gtin

-

code

1SS070029002

size

76.1 (DN65) 316

dimensions

46x143x100 mm

weight

1 kg

packaging

-

gtin

-

code

1SS070030001

size

3" 304

dimensions

46x160x112 mm

weight

1.18 kg

packaging

-

gtin

-

code

1SS070030002

size

3" 316

dimensions

46x160x112 mm

weight

1.18 kg

packaging

-

gtin

-

code

1SS070045001

size

4" 304

dimensions

51x207x143 mm

weight

2.08 kg

packaging

-

gtin

-

code

1SS070045002

size

4" 316

dimensions

51x207x143 mm

weight

2.08 kg

packaging

-

gtin

-

code

1SS070052001

size

139.7 (DN125) 304

dimensions

51x231x172 mm

weight

2.8 kg

packaging

-

gtin

-

code

1SS070052002

size

139.7 (DN125) 316

dimensions

51x231x172 mm

weight

2.8 kg

packaging

-

gtin

-

code

1SS070055001

size

5" 304

dimensions

51x236x171 mm

weight

2.71 kg

packaging

-

gtin

-

code

1SS070055002

size

5" 316

dimensions

51x236x171 mm

weight

2.71 kg

packaging

-

gtin

-

code

1SS070062001

size

165.1 (DN150) 304

dimensions

53x255x195 mm

weight

3.12 kg

packaging

-

gtin

-

code

1SS070062002

size

165.1 (DN150) 316

dimensions

53x255x195 mm

weight

3.12 kg

packaging

-

gtin

-

code

1SS070065001

size

6" 304

dimensions

51x256x201 mm

weight

3.12 kg

packaging

-

gtin

-

code

1SS070065002

size

6" 316

dimensions

51x256x201 mm

weight

3.12 kg

packaging

-

gtin

-

code

1SS070080001

size

216.3 304

dimensions

62x346x257 mm

weight

6 kg

packaging

-

gtin

-

code

1SS070085001

size

8" 304

dimensions

62x333x264 mm

weight

6.41 kg

packaging

-

gtin

-

code

1SS070085002

size

8" 316

dimensions

62x333x264 mm

weight

6.41 kg

packaging

-

gtin

-

code

size

d1

DN1

l1

z1

d2

DN2

l2

z2

code

1SS070012001

size

1 1/4" 304

d1

42.2

DN1

1-1/4"

l1

23

z1

0

d2

42.2

DN2

1-1/4"

l2

23

z2

0

code

1SS070012002

size

1 1/4" 316

d1

42.2

DN1

1-1/4"

l1

23

z1

0

d2

42.2

DN2

1-1/4"

l2

23

z2

0

code

1SS070015001

size

1 1/2" 304

d1

48.3

DN1

1-1/2"

l1

23

z1

0

d2

48.3

DN2

1-1/2"

l2

23

z2

0

code

1SS070015002

size

1 1/2" 316

d1

48.3

DN1

1-1/2"

l1

23

z1

0

d2

48.3

DN2

1-1/2"

l2

23

z2

0

code

1SS070020001

size

2" 304

d1

60.3

DN1

2"

l1

23

z1

0

d2

60.3

DN2

2"

l2

23

z2

0

code

1SS070020002

size

2" 316

d1

60.3

DN1

2"

l1

23

z1

0

d2

60.3

DN2

2"

l2

23

z2

0

code

1SS070025001

size

2 1/2" 304

d1

73.0

DN1

2-1/2"

l1

23

z1

0

d2

73.0

DN2

2-1/2"

l2

23

z2

0

code

1SS070025002

size

2 1/2" 316

d1

73.0

DN1

2-1/2"

l1

23

z1

0

d2

73.0

DN2

2-1/2"

l2

23

z2

0

code

1SS070029001

size

76.1 (DN65) 304

d1

76.1

DN1

2-1/2"

l1

23

z1

0

d2

76.1

DN2

2-1/2"

l2

23

z2

0

code

1SS070029002

size

76.1 (DN65) 316

d1

76.1

DN1

2-1/2"

l1

23

z1

0

d2

76.1

DN2

2-1/2"

l2

23

z2

0

code

1SS070030001

size

3" 304

d1

88.9

DN1

3"

l1

23

z1

0

d2

88.9

DN2

3"

l2

23

z2

0

code

1SS070030002

size

3" 316

d1

88.9

DN1

3"

l1

23

z1

0

d2

88.9

DN2

3"

l2

23

z2

0

code

1SS070045001

size

4" 304

d1

114.3

DN1

4"

l1

26

z1

0

d2

114.3

DN2

4"

l2

26

z2

0

code

1SS070045002

size

4" 316

d1

114.3

DN1

4"

l1

26

z1

0

d2

114.3

DN2

4"

l2

26

z2

0

code

1SS070052001

size

139.7 (DN125) 304

d1

139.7

DN1

5"

l1

26

z1

0

d2

139.7

DN2

5"

l2

26

z2

0

code

1SS070052002

size

139.7 (DN125) 316

d1

139.7

DN1

5"

l1

26

z1

0

d2

139.7

DN2

5"

l2

26

z2

0

code

1SS070055001

size

5" 304

d1

141.3

DN1

5"

l1

26

z1

0

d2

141.3

DN2

5"

l2

26

z2

0

code

1SS070055002

size

5" 316

d1

141.3

DN1

5"

l1

26

z1

0

d2

141.3

DN2

5"

l2

26

z2

0

code

1SS070062001

size

165.1 (DN150) 304

d1

165.1

DN1

6"

l1

27

z1

0

d2

165.1

DN2

6"

l2

27

z2

0

code

1SS070062002

size

165.1 (DN150) 316

d1

165.1

DN1

6"

l1

27

z1

0

d2

165.1

DN2

6"

l2

27

z2

0

code

1SS070065001

size

6" 304

d1

168.3

DN1

6"

l1

26

z1

0

d2

168.3

DN2

6"

l2

26

z2

0

code

1SS070065002

size

6" 316

d1

168.3

DN1

6"

l1

26

z1

0

d2

168.3

DN2

6"

l2

26

z2

0

code

1SS070080001

size

216.3 304

d1

216.3

DN1

8"

l1

31

z1

0

d2

216.3

DN2

8"

l2

31

z2

0

code

1SS070085001

size

8" 304

d1

219.1

DN1

8"

l1

31

z1

0

d2

219.1

DN2

8"

l2

31

z2

0

code

1SS070085002

size

8" 316

d1

219.1

DN1

8"

l1

31

z1

0

d2

219.1

DN2

8"

l2

31

z2

0

product info

item

VSH Shurjoint stainless steel rigid coupling (2 x groove), EPDM gasket

item number with GTIN

SS-7E

manufacturer

Shurjoint

weight

6.41 kg

dimensions

62x333x264 mm

characteristics

color

silver

materials

stainless steel (Stainless steel 304 (1.4301), Stainless steel 316 (1.4401))

finishing

none

shape

straight

connection type

groove (coupling)

sealing

EPDM

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

country of origin

Taiwan

brand

VSH

series

Shurjoint Stainless Steel

type

SS-7E

installation- & maintenance document | pdf

VSH Shurjoint installation instructions

certificate | pdf

CRN Pipe Fittings

certificate | pdf

FM SS-7

image | png

SS-7

certificate | pdf

UL Fittings, Rubber Gasketed

certificate | pdf

ULc Fittings, Rubber Gasketed

certificate | pdf

VSH Shurjoint CSTBat

diagram | png

Diagram

datasheet | pdf

Datasheet

installation- & maintenance document | pdf

VSH Shurjoint Installation Handbook

label

value

label

etim-class

value

EC003024 Fitting with 2 connections

label

Material connection 1

value

Stainless steel

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Stainless steel

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Straight

label

Model

value

2-part

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Ribbing groove (groove coupling)

label

Connection 2

value

Ribbing groove (groove coupling)

label

Main colour fitting

value

Grey

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

High tensile strength

value

Yes

label

Working length connection 1

value

label

Working length connection 1 (imperial)

value

label

Working length connection 2

value

label

Working length connection 2 (imperial)

value

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

Yes

label

LPCB quality mark

value

No

label

ULC quality mark

value

Yes

label

UL quality mark

value

Yes

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
