SS-723Epw
SS-723Epw is the designation for model SS-723 with a Grade E-pw EPDM gasket. VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality.
applications
solutions
approvals
code | size | weight | dimensions | packaging | gtin |
---|---|---|---|---|---|
1S7231210006 | 42.4xFNPT1 E-pw 304 | 0.38 kg | 49x87x77 mm | ||
1S7231510004 | 48.3xFNPT1 304 | 0.36 kg | 49x90x82 mm | ||
1S7232010006 | 60.3xFNPT1 E-pw 304 | 0.64 kg | 51x109x96 mm |

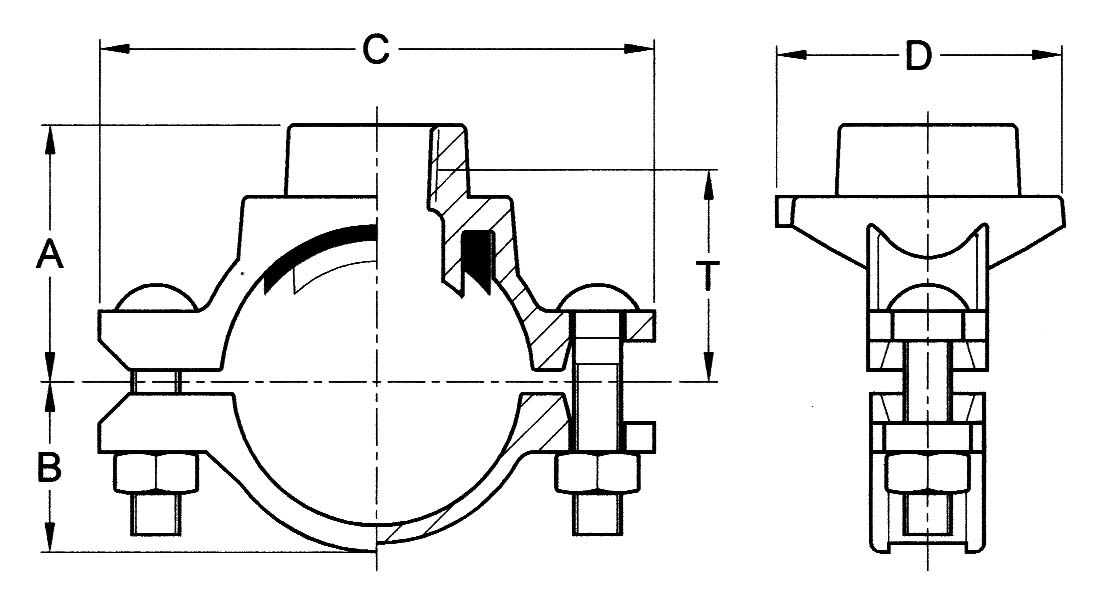

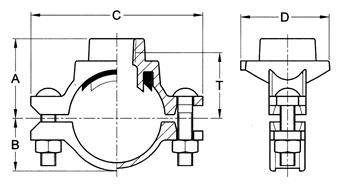

art. No | size | d1 | DN1 | l1 | z1 | d2 | DN2 |
---|---|---|---|---|---|---|---|
1S7231210006 | 42.4xFNPT1 E-pw 304 | 33.4 | DN25 | 51 | 34 | 42.4 | DN32 |
1S7231510004 | 48.3xFNPT1 304 | 33.4 | DN25 | 53 | 36 | 48.3 | DN40 |
1S7232010006 | 60.3xFNPT1 E-pw 304 | 33.4 | DN25 | 60 | 43 | 60.3 | DN50 |
color | silver |
---|---|
materials | stainless steel (Stainless steel 304 (1.4301)) |
finishing | none |
manufacturer | Shurjoint |
shape | Tapping saddle |
connection type | FPT - female thread conical (NPT), hole |
sealing | EPDM |
product group | fittings |
---|---|
ETIM class | EC011014 Broaching saddle |
intrastat code | 73072910 |
country of origin | Taiwan |
brand | VSH |
series | Shurjoint Stainless Steel |
type | SS-723Epw |
label | value |
---|---|
ETIM class | EC011014 Broaching saddle |
Material | Stainless steel |
Material quality | Stainless steel 304 (1.4301) |
Material inlay | Ethylene-propylene diene monomer rubber (EPDM) |
Surface protection | Untreated |
Nominal diameter | DN 25 |
Outer pipe diameter | 33.4mm |
Outer pipe diameter (imperial) | 1.31" |
Connection | Internal thread conical (NPT) |
Max. operating pressure at 20 °C | 20bar |
Max. operating pressure at 20 °C (imperial) | 290.08psi |
Min. medium temperature (continuous) | -34°C |
Min. medium temperature (continuous) (imperial) | -29.2°F |
Max. medium temperature (continuous) | 110°C |
Max. medium temperature (continuous) (imperial) | 230°F |
Colour | Grey |
VdS quality mark | No |
KIWA certified | No |
Gastec QA mark | No |
