VSH Shurjoint stainless steel transition cap (groove x female thread)

VSH Shurjoint stainless steel transition cap (groove x female thread)

SS-60T

The Shurjoint model SS-60T is an ideal transition fitting when a large reduction is required and can be used in place of more costly reducers or swaged nipples. In addition the SS-60T can serve as a drain fitting.

applications

heating cooling compressed air

solutions

building installations industry
code size weight dimensions packaging gtin
1S60T2505002 73xFNPT1/2" 316 0.49 kg 45x73x73
1S60T3005002 88.9xFNPT1/2" 316 0.74 kg 51x89x89
1s60t4510002 114.3xFNPT1" 316 0.56 kg 51x114x114
1S60T6510002 168.3xFNPT1" 316 2.45 kg 76x168x168

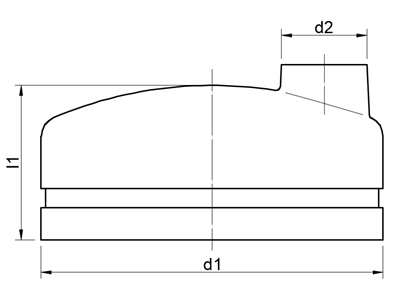

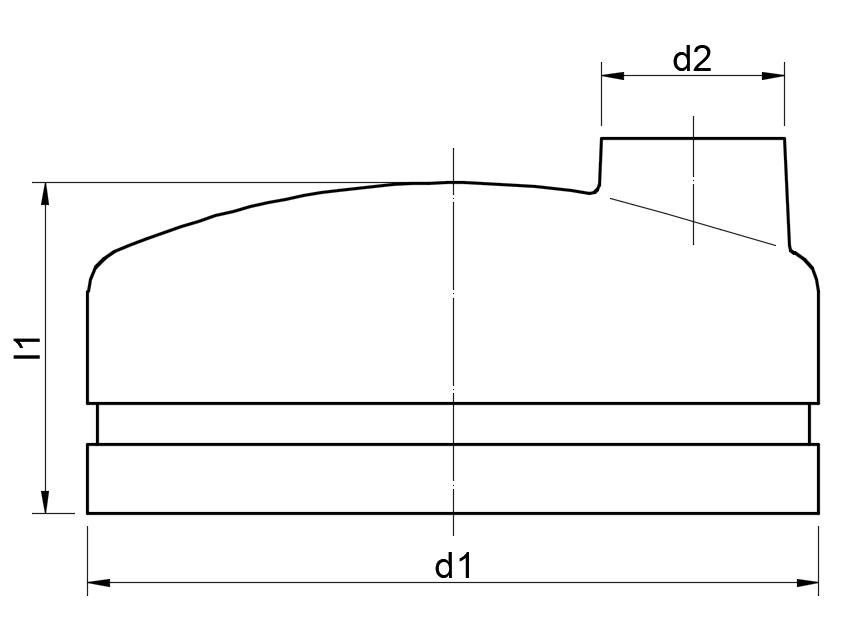

art. No size d1 DN1 l1 d2 DN2
1S60T2505002 73xFNPT1/2" 316 73.0 DN65 45 21.3 DN15
1S60T3005002 88.9xFNPT1/2" 316 88.9 DN80 51 21.3 DN15
1s60t4510002 114.3xFNPT1" 316 114.3 DN100 51 33.4 DN25
1S60T6510002 168.3xFNPT1" 316 168.3 DN150 76 33.4 DN25
see above for the diagram with these dimensions.
materials stainless steel (Stainless steel 316 (1.4401))
manufacturer Shurjoint
shape straight
connection type groove (fitting), FPT - female thread conical (NPT)
product group fittings
ETIM class EC003024 Fitting with 2 connections
country of origin Taiwan
brand VSH
series Shurjoint Stainless Steel
type SS-60T
label value
ETIM class EC003024 Fitting with 2 connections
Material connection 1 Stainless steel
Material quality connection 1 Stainless steel 316 (1.4401)
Material connection 2 Stainless steel
Material quality connection 2 Stainless steel 316 (1.4401)
Shape Straight
Model 1-part
Reducing No
Eccentric No
System specific No
Connection 1 Groove
Connection 2 Internal thread conical (NPT)
With buffer stud No
With thermal insulation No
With sealing rings/gaskets No
Capped No
With drain valve No
With de-aerator No
FM quality mark No
LPCB quality mark No
ULC quality mark No
UL quality mark No
VdS quality mark No
DVGW quality mark for gas No
DVGW quality mark for water No
KIWA certified No
Gastec QA mark No
KOMO certified No
