SS-5Epw_GS
SS-5Epw_GS is the designation for model SS-5 with a Grade E-pw EPDM NSF61, GapSeal gasket. The Shurjoint Model SS-5 is an angle-pad design stainless steel coupling for use with Sch. 5S, Sch. 10S or Sch. 40S stainless steel pipe where a rigid connection is desired. The angle-pad design allows the coupling housings to slide along the bolt pads when tightened. The result is an offset clamping action which provides a rigid joint which resists so called ‘snaking’ of a long straight run. With the removal of only one bolt you can make a fast and easy "swingover” installation. The SS-5 couplings are comprised of two identical CF8 (304) or CF8M (316) housing segments, EPDM gaskets and stainless steel track bolts and heavy duty nuts.
applications
solutions
approvals
| code | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 1SS050025009 | 73 (DN65) 304 | 0.94 kg | 47x132x98 mm | ||
| 1SS050045009 | 114.3 (DN100) 304 | 1.85 kg | 53x182x146 mm |

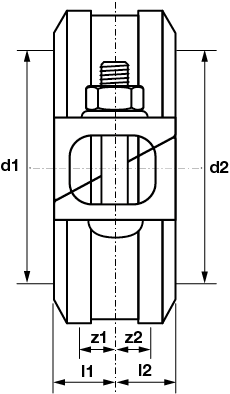

| art. No | size | d1 | DN1 | l1 | d2 | DN2 | l2 |
|---|---|---|---|---|---|---|---|
| 1SS050025009 | 73 (DN65) 304 | 73.0 | DN65 | 24 | 73.0 | DN65 | 24 |
| 1SS050045009 | 114.3 (DN100) 304 | 114.3 | DN100 | 27 | 114.3 | DN100 | 27 |
| color | silver |
|---|---|
| materials | stainless steel (Stainless steel 304 (1.4301)) |
| finishing | none |
| manufacturer | Shurjoint |
| shape | straight |
| connection type | groove (coupling) |
| sealing | EPDM |
| product group | fittings (demountable) |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint Stainless Steel |
| type | SS-5Epw_GS |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Stainless steel |
| Material quality connection 1 | Stainless steel 304 (1.4301) |
| Surface protection connection 1 | Untreated |
| Surface treatment connection 1 | Untreated |
| Material connection 2 | Stainless steel |
| Material quality connection 2 | Stainless steel 304 (1.4301) |
| Surface protection connection 2 | Untreated |
| Surface treatment connection 2 | Untreated |
| Shape | Straight |
| Reducing | No |
| Eccentric | No |
| System specific | No |
| Connection 1 | Ribbing groove (groove coupling) |
| Connection 2 | Ribbing groove (groove coupling) |
| Main colour fitting | Grey |
| Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
| With buffer stud | No |
| Medium temperature (continuous) | -34°C - 110°C |
| Medium temperature (continuous) (imperial) | -29.2°F - 230°F |
| Max. operating pressure at 20 °C | 42bar |
| Max. operating pressure at 20 °C (imperial) | 609.16psi |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
