group: SS-50F
The Shurjoint Model SS-50F stainless steel fittings are investment cast in sizes to 8” and sand cast or wrought in 10" – 24”. Materials are in compliance with NSF/ANSI 372 for potable water service applications. For wrought sizes 10” and higher, please refer to datasheets for models WS-21 or contact Shurjoint Customer Service.
potable water
heating
cooling
compressed air
sprinkler
dry fire main
building installations
fire protection
industry
CRN
FM
NSF
UL
ULc
| code | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 1S50F2520001 | 73x60.3 FNPT 304 | 0.95 kg | 89x73x73 mm | ||
| 1S50F2520004 | 73x60.3 Rc 304 | 0.95 kg | 89x73x73 mm | ||
| 1S50F2520005 | 73x60.3 Rc 316 | 0.95 kg | 89x73x73 mm | ||
| 1S50F2915004 | 76.1x48.3 Rc 304 | 0.54 kg | 89x76x76 mm | ||
| 1S50F2920004 | 76.1x60.3 Rc 304 | 0.95 kg | 89x76x76 mm | ||
| 1S50F2920005 | 76.1x60.3 Rc 316 | 0.95 kg | 89x76x76 mm | ||
| 1S50F3020001 | 88.9x60.3 FNPT 304 | 0.92 kg | 89x89x89 mm | ||
| 1S50F3020004 | 88.9x60.3 Rc 304 | 0.92 kg | 89x89x89 mm | ||
| 1S50F3020005 | 88.9x60.3 Rc 316 | 0.92 kg | 89x89x89 mm | ||
| 1S50F4520001 | 114.3x60.3 FNPT 304 | 1.76 kg | 102x114x114 mm | ||
| 1S50F4520004 | 114.3x60.3 Rc 304 | 1.76 kg | 102x114x114 mm | ||
| 1S50F4520005 | 114.3x60.3 Rc 316 | 1.76 kg | 102x114x114 mm |

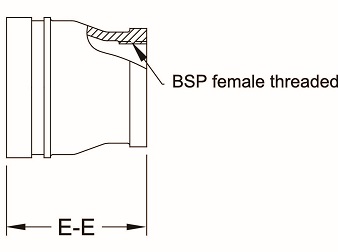

| art. No | size | d1 | DN1 | l1 | d2 | DN2 | l2 | z2 |
|---|---|---|---|---|---|---|---|---|
| 1S50F2520001 | 73x60.3 FNPT 304 | 73.0 | DN65 | 45 | 60.3 | DN50 | 45 | 25 |
| 1S50F2520004 | 73x60.3 Rc 304 | 73.0 | DN65 | 45 | 60.3 | DN50 | 45 | 25 |
| 1S50F2520005 | 73x60.3 Rc 316 | 73.0 | DN65 | 45 | 60.3 | DN50 | 45 | 25 |
| 1S50F2915004 | 76.1x48.3 Rc 304 | 76.1 | DN65 | 45 | 48.3 | DN40 | 45 | 25 |
| 1S50F2920004 | 76.1x60.3 Rc 304 | 76.1 | DN65 | 45 | 60.3 | DN50 | 45 | 25 |
| 1S50F2920005 | 76.1x60.3 Rc 316 | 76.1 | DN65 | 45 | 60.3 | DN50 | 45 | 25 |
| 1S50F3020001 | 88.9x60.3 FNPT 304 | 88.9 | DN80 | 45 | 60.3 | DN50 | 45 | 25 |
| 1S50F3020004 | 88.9x60.3 Rc 304 | 88.9 | DN80 | 45 | 60.3 | DN50 | 45 | 25 |
| 1S50F3020005 | 88.9x60.3 Rc 316 | 88.9 | DN80 | 45 | 60.3 | DN50 | 45 | 25 |
| 1S50F4520001 | 114.3x60.3 FNPT 304 | 114.3 | DN100 | 51 | 60.3 | DN50 | 51 | 31 |
| 1S50F4520004 | 114.3x60.3 Rc 304 | 114.3 | DN100 | 51 | 60.3 | DN50 | 51 | 31 |
| 1S50F4520005 | 114.3x60.3 Rc 316 | 114.3 | DN100 | 51 | 60.3 | DN50 | 51 | 31 |
| color | silver |
|---|---|
| materials | stainless steel (Stainless steel 304 (1.4301), Stainless steel 316 (1.4401)) |
| finishing | none |
| manufacturer | Shurjoint |
| connection type | groove (fitting) |
| product group | fittings |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint Stainless Steel |
| type | SS-50F |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Stainless steel |
| Surface protection connection 1 | Untreated |
| Surface treatment connection 1 | Untreated |
| Material connection 2 | Stainless steel |
| Surface protection connection 2 | Untreated |
| Surface treatment connection 2 | Untreated |
| Shape | Straight |
| Reducing | No |
| Eccentric | No |
| System specific | Yes |
| Connection 1 | Groove |
| Main colour fitting | Grey |
| With buffer stud | No |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | No |
| With de-aerator | No |
| LPCB quality mark | No |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
| Gastec QA - AR 214 (H2) | No |
