VSH Shurjoint stainless steel reducing tee (3 x groove)

VSH Shurjoint stainless steel reducing tee (3 x groove)

group: SS-21

The Shurjoint Model SS-21 stainless steel fittings are investment cast in sizes to 8” and sand cast or wrought in 10" – 24”. Materials are in compliance with NSF/ANSI 372 for potable water service applications. For wrought sizes 10” and higher, please refer to datasheets for models WS-21 or contact Shurjoint Customer Service.

applications

potable water

potable water

heating

heating

cooling

cooling

compressed air

compressed air

sprinkler

sprinkler

dry fire main

dry fire main

show all
show less

solutions

building installations

building installations

fire protection

fire protection

industry

industry

show all
show less

approvals

CRN

CRN

FM

FM

NSF

NSF

UL

UL

ULc

ULc

show all
show less
assortment
code size weight dimensions packaging gtin
1SS211210001 42.2x33.4 304 0.55 kg 140x42x91 mm
1SS211210002 42.2x33.4 316 0.55 kg 140x42x91 mm
1SS211510001 48.3x33.4 304 0.6 kg 166x48x94 mm
1SS211510002 48.3x33.4 316 0.6 kg 166x48x94 mm
1SS211512001 48.3x42.2 304 0.64 kg 166x48x94 mm
1SS211512002 48.3x42.2 316 0.64 kg 166x48x94 mm
1SS212010001 60.3x33.4 304 0.74 kg 166x60x100 mm
1SS212010002 60.3x33.4 316 0.74 kg 166x60x100 mm
1SS212012001 60.3x42.2 304 0.76 kg 166x60x100 mm
1SS212012002 60.3x42.2 316 0.76 kg 166x60x100 mm
1SS212015001 60.3x48.3 304 0.81 kg 166x60x100 mm
1SS212015002 60.3x48.3 316 0.81 kg 166x60x100 mm
1SS212510001 73x33.4 304 0.9 kg 190x73x132 mm
1SS212510002 73x33.4 316 0.9 kg 190x73x132 mm
1SS212512001 73x42.2 304 0.91 kg 190x73x132 mm
1SS212512002 73x42.2 316 0.91 kg 190x73x132 mm
1SS212515001 73x48.3 304 0.94 kg 190x73x132 mm
1SS212515002 73x48.3 316 0.94 kg 190x73x132 mm
1SS212520001 73x60.3 304 1.5 kg 190x73x113 mm
1SS212520002 73x60.3 316 1.5 kg 190x73x113 mm
1SS212910001 76.1x33.4 304 0.9 kg 190x76x133 mm
1SS212910002 76.1x33.4 316 0.9 kg 190x76x133 mm
1SS212912001 76.1x42.2 304 0.91 kg 190x76x133 mm
1SS212912002 76.1x42.2 316 0.91 kg 190x76x133 mm
1SS212915001 76.1x48.3 304 0.94 kg 190x76x133 mm
1SS212915002 76.1x48.3 316 0.94 kg 190x76x133 mm
1SS212920001 76.1x60.3 304 1.54 kg 152x76x114 mm
1SS212920002 76.1x60.3 316 1.54 kg 152x76x114 mm
1SS213012001 88.9x42.2 304 1.55 kg 216x89x152 mm
1SS213012002 88.9x42.2 316 1.55 kg 216x89x152 mm
1SS213015001 88.9x48.3 304 1.26 kg 216x89x152 mm
1SS213015002 88.9x48.3 316 1.26 kg 216x89x152 mm
1SS213020001 88.9x60.3 304 2.13 kg 216x89x152 mm
1SS213020002 88.9x60.3 316 2.13 kg 216x89x152 mm
1SS213025001 88.9x73 304 2.14 kg 216x89x127 mm
1SS213025002 88.9x73 316 2.14 kg 216x89x127 mm
1SS213029001 88.9x76.1 304 2.14 kg 216x89x127 mm
1SS213029002 88.9x76.1 316 2.14 kg 216x89x127 mm
1SS214520001 114.3x60.3 304 3.27 kg 254x114x184 mm
1SS214520002 114.3x60.3 316 3.27 kg 254x114x184 mm
1SS214525001 114.3x73 304 3.25 kg 254x114x155 mm
1SS214525002 114.3x73 316 3.25 kg 254x114x155 mm
1SS214529001 114.3x76.1 304 3.3 kg 254x114x155 mm
1SS214529002 114.3x76.1 316 3.3 kg 254x114x155 mm
1SS214530001 114.3x88.9 304 3.24 kg 254x114x155 mm
1SS214530002 114.3x88.9 316 3.24 kg 254x114x155 mm
1SS215229001 139.7x76.1 304 5.11 kg 280x140x178 mm
1SS215229002 139.7x76.1 316 5.11 kg 280x140x178
1SS215230001 139.7x88.9 304 5.1 kg 280x140x181 mm
1SS215230002 139.7x88.9 316 5.1 kg 280x140x181
1SS215245001 139.7x114.3 304 5.14 kg 280x140x210 mm
1SS215245002 139.7x114.3 316 5.14 kg 280x140x210 mm
1SS215525001 141.3x73 304 5 kg 280x141x169 mm
1SS215525002 141.3x73 316 5 kg 280x141x169
1SS215530001 141.3x88.9 304 5 kg 280x141x169 mm
1SS215530002 141.3x88.9 316 5 kg 280x141x169
1SS215545001 141.3x114.3 304 5.1 kg 280x141x211 mm
1SS215545002 141.3x114.3 316 5.98 kg 280x141x211 mm
1SS216230001 165.1x88.9 304 7 kg 330x165x233 mm
1SS216230002 165.1x88.9 316 7 kg 330x165x233
1SS216245001 165.1x114.3 304 8.4 kg 330x165x248 mm
1SS216245002 165.1x114.3 316 8.4 kg 330x165x248 mm
1SS216252001 165.1x139.7 304 8.84 kg 330x165x248 mm
1SS216252002 165.1x139.7 316 8.84 kg 330x165x248 mm
1SS216530001 168.3x88.9 304 7.1 kg 330x168x234 mm
1SS216530002 168.3x88.9 316 7.1 kg 330x168x234 mm
1SS216545001 168.3x114.3 304 8.76 kg 330x168x249 mm
1SS216545002 168.3x114.3 316 8.76 kg 330x168x249 mm
1SS216555001 168.3x141.3 304 9.8 kg 330x168x249 mm
1SS218045001 216.3x114.3 304 16.08 kg 394x216x305 mm
1SS218045002 216.3x114.3 316 16.08 kg 394x216x305
1SS218052001 216.3x139.7 304 15.79 kg 394x216x305 mm
1SS218052002 216.3x139.7 316 15.79 kg 394x216x305
1SS218062001 216.3x165.1 304 14.62 kg 394x216x305 mm
1SS218062002 216.3x165.1 316 14.62 kg 394x216x305
1SS218545001 219.1x114.3 304 16.08 kg 394x219x307 mm
1SS218545002 219.1x114.3 316 16.08 kg 394x219x307 mm
1SS218555001 219.1x141.3 304 16.31 kg 394x219x307 mm
1SS218555002 219.1x141.3 316 16.31 kg 394x219x307
1SS218565001 219.1x168.3 304 15.32 kg 394x219x307 mm
1SS218565002 219.1x168.3 316 15.32 kg 394x219x307 mm
1SS21A165001 273x168.3 304 26.86 kg 458x273x366 mm
1SS21A165002 273x168.3 316 26.86 kg 458x273x366 mm
1SS21A185001 273x219.1 304 27.33 kg 458x273x366 mm
1SS21A185002 273x219.1 316 27.33 kg 458x273x366 mm
dimensions
art. No size d1 DN1 l1 d2 DN2 l2 d3 DN3 l3
1SS211210001 42.2x33.4 304 42.2 DN32 70 33.7 DN25 70 42.2 DN32 70
1SS211210002 42.2x33.4 316 42.2 DN32 70 33.7 DN25 70 42.2 DN32 70
1SS211510001 48.3x33.4 304 48.3 DN40 70 33.7 DN25 70 48.3 DN40 70
1SS211510002 48.3x33.4 316 48.3 DN40 70 33.7 DN25 70 48.3 DN40 70
1SS211512001 48.3x42.2 304 48.3 DN40 70 42.2 DN32 70 48.3 DN40 70
1SS211512002 48.3x42.2 316 48.3 DN40 70 42.2 DN32 70 48.3 DN40 70
1SS212010001 60.3x33.4 304 60.3 DN50 70 33.4 DN25 70 60.3 DN50 70
1SS212010002 60.3x33.4 316 60.3 DN50 70 33.4 DN25 70 60.3 DN50 70
1SS212012001 60.3x42.2 304 60.3 DN50 70 42.2 DN32 70 60.3 DN50 70
1SS212012002 60.3x42.2 316 60.3 DN50 70 42.2 DN32 70 60.3 DN50 70
1SS212015001 60.3x48.3 304 60.3 DN50 70 48.3 DN40 70 60.3 DN50 70
1SS212015002 60.3x48.3 316 60.3 DN50 70 48.3 DN40 70 60.3 DN50 70
1SS212510001 73x33.4 304 73.0 DN65 95 33.7 DN25 95 73.0 DN65 95
1SS212510002 73x33.4 316 73.0 DN65 95 33.7 DN25 95 73.0 DN65 95
1SS212512001 73x42.2 304 73.0 DN65 95 42.2 DN32 95 73.0 DN65 95
1SS212512002 73x42.2 316 73.0 DN65 95 42.2 DN32 95 73.0 DN65 95
1SS212515001 73x48.3 304 73.0 DN65 95 48.3 DN40 95 73.0 DN65 95
1SS212515002 73x48.3 316 73.0 DN65 95 48.3 DN40 95 73.0 DN65 95
1SS212520001 73x60.3 304 73.0 DN65 76 60.3 DN50 76 73.0 DN65 76
1SS212520002 73x60.3 316 73.0 DN65 76 60.3 DN50 76 73.0 DN65 76
1SS212910001 76.1x33.4 304 76.1 DN65 95 33.7 DN25 95 76.1 DN65 95
1SS212910002 76.1x33.4 316 76.1 DN65 95 33.7 DN25 95 76.1 DN65 95
1SS212912001 76.1x42.2 304 76.1 DN65 95 42.2 DN32 95 76.1 DN65 95
1SS212912002 76.1x42.2 316 76.1 DN65 95 42.2 DN32 95 76.1 DN65 95
1SS212915001 76.1x48.3 304 76.1 DN65 95 48.3 DN40 95 76.1 DN65 95
1SS212915002 76.1x48.3 316 76.1 DN65 95 48.3 DN40 95 76.1 DN65 95
1SS212920001 76.1x60.3 304 76.1 DN65 76 60.3 DN50 76 76.1 DN65 76
1SS212920002 76.1x60.3 316 76.1 DN65 76 60.3 DN50 76 76.1 DN65 76
1SS213012001 88.9x42.2 304 88.9 DN80 108 42.2 DN32 108 88.9 DN80 108
1SS213012002 88.9x42.2 316 88.9 DN80 108 42.2 DN32 108 88.9 DN80 108
1SS213015001 88.9x48.3 304 88.9 DN80 108 48.3 DN40 108 88.9 DN80 108
1SS213015002 88.9x48.3 316 88.9 DN80 108 48.3 DN40 108 88.9 DN80 108
1SS213020001 88.9x60.3 304 88.9 DN80 108 60.3 DN50 108 88.9 DN80 108
1SS213020002 88.9x60.3 316 88.9 DN80 108 60.3 DN50 108 88.9 DN80 108
1SS213025001 88.9x73 304 88.9 DN80 95 73.0 DN65 83 88.9 DN80 95
1SS213025002 88.9x73 316 88.9 DN80 95 73.0 DN65 83 88.9 DN80 95
1SS213029001 88.9x76.1 304 88.9 DN80 95 76.1 DN65 83 88.9 DN80 95
1SS213029002 88.9x76.1 316 88.9 DN80 95 76.1 DN65 83 88.9 DN80 95
1SS214520001 114.3x60.3 304 114.3 DN100 127 60.3 DN50 127 114.3 DN100 127
1SS214520002 114.3x60.3 316 114.3 DN100 127 60.3 DN50 127 114.3 DN100 127
1SS214525001 114.3x73 304 114.3 DN100 114 73.0 DN65 98 114.3 DN100 114
1SS214525002 114.3x73 316 114.3 DN100 114 73.0 DN65 98 114.3 DN100 114
1SS214529001 114.3x76.1 304 114.3 DN100 114 76.1 DN65 98 114.3 DN100 114
1SS214529002 114.3x76.1 316 114.3 DN100 114 76.1 DN65 98 114.3 DN100 114
1SS214530001 114.3x88.9 304 114.3 DN100 114 88.9 DN80 98 114.3 DN100 114
1SS214530002 114.3x88.9 316 114.3 DN100 114 88.9 DN80 98 114.3 DN100 114
1SS215229001 139.7x76.1 304 139.7 DN125 124 76.1 DN65 108 139.7 DN125 124
1SS215229002 139.7x76.1 316 139.7 DN125 124 76.1 DN65 108 139.7 DN125 124
1SS215230001 139.7x88.9 304 139.7 DN125 124 88.9 DN80 111 139.7 DN125 124
1SS215230002 139.7x88.9 316 139.7 DN125 124 88.9 DN80 111 139.7 DN125 124
1SS215245001 139.7x114.3 304 139.7 DN125 140 114.3 DN100 140 139.7 DN125 140
1SS215245002 139.7x114.3 316 139.7 DN125 140 114.3 DN100 140 139.7 DN125 140
1SS215525001 141.3x73 304 141.3 DN125 114 73.0 DN65 98 141.3 DN125 114
1SS215525002 141.3x73 316 141.3 DN125 114 73.0 DN65 98 141.3 DN125 114
1SS215530001 141.3x88.9 304 141.3 DN125 114 88.9 DN80 98 141.3 DN125 114
1SS215530002 141.3x88.9 316 141.3 DN125 114 88.9 DN80 98 141.3 DN125 114
1SS215545001 141.3x114.3 304 141.3 DN125 140 114.3 DN100 140 141.3 DN125 140
1SS215545002 141.3x114.3 316 141.3 DN125 140 114.3 DN100 140 141.3 DN125 140
1SS216230001 165.1x88.9 304 165.1 DN150 150 88.9 DN80 150 165.1 DN150 150
1SS216230002 165.1x88.9 316 165.1 DN150 150 88.9 DN80 150 165.1 DN150 150
1SS216245001 165.1x114.3 304 165.1 DN150 165 114.3 DN100 165 165.1 DN150 165
1SS216245002 165.1x114.3 316 165.1 DN150 165 114.3 DN100 165 165.1 DN150 165
1SS216252001 165.1x139.7 304 165.1 DN150 165 139.7 DN125 165 165.1 DN150 165
1SS216252002 165.1x139.7 316 165.1 DN150 165 139.7 DN125 165 165.1 DN150 165
1SS216530001 168.3x88.9 304 168.3 DN150 150 88.9 DN80 150 168.3 DN150 150
1SS216530002 168.3x88.9 316 168.3 DN150 150 88.9 DN80 150 168.3 DN150 150
1SS216545001 168.3x114.3 304 168.3 DN150 165 114.3 DN100 165 168.3 DN150 165
1SS216545002 168.3x114.3 316 168.3 DN150 165 114.3 DN100 165 168.3 DN150 165
1SS216555001 168.3x141.3 304 168.3 DN150 165 141.3 DN125 165 168.3 DN150 165
1SS218045001 216.3x114.3 304 216.3 DN200 197 114.3 DN100 197 216.3 DN200 197
1SS218045002 216.3x114.3 316 216.3 DN200 197 114.3 DN100 197 216.3 DN200 197
1SS218052001 216.3x139.7 304 216.3 DN200 197 139.7 DN125 197 216.3 DN200 197
1SS218052002 216.3x139.7 316 216.3 DN200 197 139.7 DN125 197 216.3 DN200 197
1SS218062001 216.3x165.1 304 216.3 DN200 197 165.1 DN150 197 216.3 DN200 197
1SS218062002 216.3x165.1 316 216.3 DN200 197 165.1 DN150 197 216.3 DN200 197
1SS218545001 219.1x114.3 304 219.1 DN200 197 114.3 DN100 197 219.1 DN200 197
1SS218545002 219.1x114.3 316 219.1 DN200 197 114.3 DN100 197 219.1 DN200 197
1SS218555001 219.1x141.3 304 219.1 DN200 197 141.3 DN125 197 219.1 DN200 197
1SS218555002 219.1x141.3 316 219.1 DN200 197 141.3 DN125 197 219.1 DN200 197
1SS218565001 219.1x168.3 304 219.1 DN200 197 168.3 DN150 197 219.1 DN200 197
1SS218565002 219.1x168.3 316 219.1 DN200 197 168.3 DN150 197 219.1 DN200 197
1SS21A165001 273x168.3 304 273.0 DN250 229 168.3 DN150 229 273.0 DN250 229
1SS21A165002 273x168.3 316 273.0 DN250 229 168.3 DN150 229 273.0 DN250 229
1SS21A185001 273x219.1 304 273.0 DN250 229 219.1 DN200 229 273.0 DN250 229
1SS21A185002 273x219.1 316 273.0 DN250 229 219.1 DN200 229 273.0 DN250 229

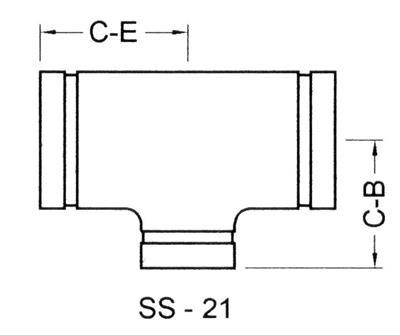

drawing for product
characteristics

characteristics

color silver
materials stainless steel (Stainless steel 304 (1.4301), Stainless steel 316 (1.4401))
finishing none
manufacturer Shurjoint
connection type groove (fitting)
general

general

product group fittings (demountable)
ETIM class EC003025 Fitting with 3 connections
country of origin Taiwan
brand VSH
series Shurjoint Stainless Steel
type SS-21
downloads
ETIM
label value
ETIM class EC003025 Fitting with 3 connections
Material connection 1 Stainless steel
Surface protection connection 1 Untreated
Surface treatment connection 1 Untreated
Material connection 2 Stainless steel
Surface protection connection 2 Untreated
Surface treatment connection 2 Untreated
Material connection 3 Stainless steel
Surface protection connection 3 Untreated
Surface treatment connection 3 Untreated
Model T-piece
Reducing No
Multi-part No
System specific No
Connection 1 Groove
Connection 2 Groove
Connection 3 Groove
Main colour fitting Grey
With sealing rings/gaskets No
With drain valve No
With de-aerator No
With buffer stud No
Capped No
With connection indicator No
LPCB quality mark No
VdS quality mark No
DVGW quality mark for gas No
DVGW quality mark for water No
KIWA certified No
Gastec QA mark No
KOMO certified No
Gastec QA - AR 214 (H2) No
products
VSH Shurjoint VSH Shurjoint Stainless Steel VSH Shurjoint Threaded VSH Shurjoint Ring Joint VSH Shurjoint Plain-End VSH Shurjoint Copper VSH Shurjoint AWWA
services

stay up to date on new products, resources and services.

11F-2, No. 175, Zhongzheng 2nd Rd., Lingya, Kaohsiung 80274, Taiwan

+886 7 225 3768
Youtube Linkedin
terms & conditions

|

privacy statement

|

cookie policy

send by email
