SS-1200
The Model SS-1200 is designed for high pressure applications including reverse osmosis, desalination and other specialty systems. The SS-1200 is available in strong and anti-corrosive alloys of Duplex CD3MN (2205), Super Duplex CE8MN, CE3MN (2507) and 6-Moly stainless steel CK3MCuN (254SMO*). The SS-1200 features 316 bolts, washers, and silicon bronze nuts to help prevent galling during repetitive use.
*254SMO is a registered trademark of Avesta Polarit AB.
applications
solutions
approvals
| code | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 1S1200010002 | 33.4 (DN25) CF8M w/Si-Br Nut | 0.55 kg | 46x99x60 mm | ||
| 1S1200012002 | 42.2 (DN32) CF8M w/Si-Br Nut | 0.63 kg | 46x106x70 mm | ||
| 1S1200015002 | 48.3 (DN40) CF8M w/Si-Br Nut | 0.7 kg | 46x113x76 mm | ||
| 1S1200020002 | 60.3 (DN50) CF8M w/Si-Br Nut | 1.04 kg | 47x135x89 mm | ||
| 1S1200029002 | 76.1 (DN65) CF8M w/Si-Br Nut | 1.38 kg | 49x153x102 mm | ||
| 1S1200030002 | 88.9 (DN80) CF8M w/Si-Br Nut | 1.55 kg | 49x168x119 mm | ||
| 1S1200045002 | 114.3 (DN100) CF8M w/Si-Br Nut | 2.13 kg | 52x198x147 mm |

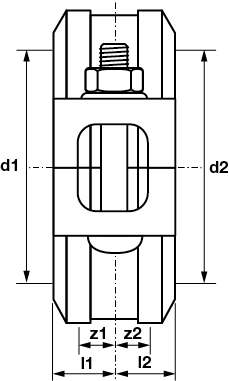

| art. No | size | d1 | DN1 | l1 | d2 | DN2 | l2 |
|---|---|---|---|---|---|---|---|
| 1S1200010002 | 33.4 (DN25) CF8M w/Si-Br Nut | 33.4 | DN25 | 23 | 33.4 | DN25 | 23 |
| 1S1200012002 | 42.2 (DN32) CF8M w/Si-Br Nut | 42.2 | DN32 | 23 | 42.2 | DN32 | 23 |
| 1S1200015002 | 48.3 (DN40) CF8M w/Si-Br Nut | 48.3 | DN40 | 23 | 48.3 | DN40 | 23 |
| 1S1200020002 | 60.3 (DN50) CF8M w/Si-Br Nut | 60.3 | DN50 | 24 | 60.3 | DN50 | 24 |
| 1S1200029002 | 76.1 (DN65) CF8M w/Si-Br Nut | 76.1 | DN65 | 25 | 76.1 | DN65 | 25 |
| 1S1200030002 | 88.9 (DN80) CF8M w/Si-Br Nut | 88.9 | DN80 | 25 | 88.9 | DN80 | 25 |
| 1S1200045002 | 114.3 (DN100) CF8M w/Si-Br Nut | 114.3 | DN100 | 26 | 114.3 | DN100 | 26 |
| color | silver |
|---|---|
| materials | stainless steel (Stainless steel 316 (1.4401)) |
| finishing | none |
| manufacturer | Shurjoint |
| connection type | groove (coupling) |
| sealing | EPDM |
| product group | fittings |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint Stainless Steel |
| type | SS-1200 |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Stainless steel |
| Material quality connection 1 | Stainless steel 316 (1.4401) |
| Surface protection connection 1 | Untreated |
| Surface treatment connection 1 | Untreated |
| Material connection 2 | Stainless steel |
| Material quality connection 2 | Stainless steel 316 (1.4401) |
| Surface protection connection 2 | Untreated |
| Surface treatment connection 2 | Untreated |
| Shape | Straight |
| Reducing | No |
| Eccentric | No |
| System specific | No |
| Connection 1 | Ribbing groove (groove coupling) |
| Connection 2 | Ribbing groove (groove coupling) |
| Main colour fitting | Grey |
| Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
| With buffer stud | No |
| Max. operating pressure at 20 °C | 83bar |
| Max. operating pressure at 20 °C (imperial) | 1203.81psi |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
