VSH Shurjoint stainless steel ball valve lever-operated (2 x groove)

group: SJ-600L

VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality.
  • VSH Shurjoint can be perfectly combined with other VSH systems such as VSH XPress, VSH SudoPress and VSH PowerPress
  • the 'Aalberts integrated piping systems' range covers a fully integrated system from ¼" to 104"
read more
read less

applications

heating

heating

cooling

cooling

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

CRN

CRN

item

size

d1

DN1

l1

d2

DN2

l2

M1

M2

E

h2

Y

V

U

a

size

48.3 (DN40) 304

d1

48.3

DN1

DN40

l1

70

d2

48.3

DN2

DN40

l2

70

M1

22

M2

193

E

23

h2

22

Y

34

V

56

U

42

a

90

size

48.3 (DN40) 316

d1

48.3

DN1

DN40

l1

70

d2

48.3

DN2

DN40

l2

70

M1

22

M2

193

E

23

h2

22

Y

34

V

56

U

42

a

90

size

60.3 (DN50) 304

d1

60.3

DN1

DN50

l1

78

d2

60.3

DN2

DN50

l2

78

M1

29

M2

193

E

29

h2

30

Y

45

V

63

U

52

a

90

size

60.3 (DN50) 316

d1

60.3

DN1

DN50

l1

78

d2

60.3

DN2

DN50

l2

78

M1

29

M2

193

E

29

h2

30

Y

45

V

63

U

52

a

90

size

73 (DN65) 304

d1

73.0

DN1

DN65

l1

90

d2

73.0

DN2

DN65

l2

90

M1

29

M2

250

E

29

h2

30

Y

45

V

81

U

52

a

90

size

73 (DN65) 316

d1

73.0

DN1

DN65

l1

90

d2

73.0

DN2

DN65

l2

90

M1

29

M2

250

E

29

h2

30

Y

45

V

81

U

52

a

90

size

88.9 (DN80) 304

d1

88.9

DN1

DN80

l1

107

d2

88.9

DN2

DN80

l2

107

M1

42

M2

250

E

40

h2

46

Y

67

V

90

U

68

a

90

size

88.9 (DN80) 316

d1

88.9

DN1

DN80

l1

107

d2

88.9

DN2

DN80

l2

107

M1

42

M2

250

E

40

h2

46

Y

67

V

90

U

68

a

90

size

114.3 (DN100) 304

d1

114.3

DN1

DN100

l1

120

d2

114.3

DN2

DN100

l2

120

M1

47

M2

290

E

25

h2

44

Y

51

V

103

U

70

a

90

size

114.3 (DN100) 316

d1

114.3

DN1

DN100

l1

120

d2

114.3

DN2

DN100

l2

120

M1

47

M2

290

E

25

h2

44

Y

51

V

103

U

70

a

90

item

size

U

a

48.3 (DN40) 304

42

90

48.3 (DN40) 316

42

90

60.3 (DN50) 304

52

90

60.3 (DN50) 316

52

90

73 (DN65) 304

52

90

73 (DN65) 316

52

90

88.9 (DN80) 304

68

90

88.9 (DN80) 316

68

90

114.3 (DN100) 304

70

90

114.3 (DN100) 316

70

90

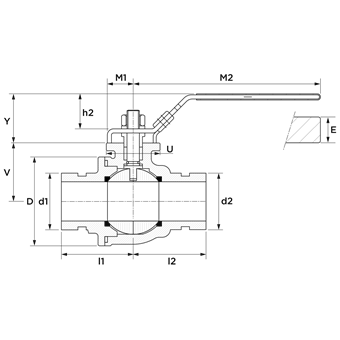

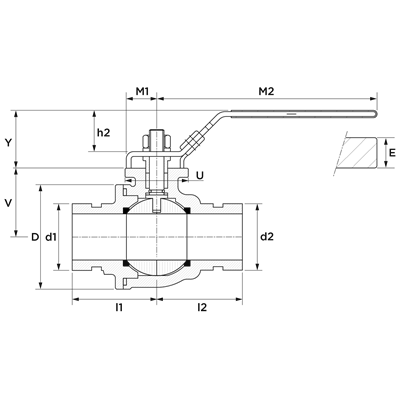

technical drawing for product

characteristics

color

silver

materials

stainless steel (Stainless steel 304 (1.4301), Stainless steel 316 (1.4401))

finishing

none

shape

straight (0º)

connection type

groove (fitting)

pressure rating (PN)

PN 40

sealing

EPDM

general

product group

valves (ball valves)

ETIM class

EC011343 Ball valve

country of origin

Taiwan

brand

VSH

series

Shurjoint Stainless Steel

type

SJ-600L

label

value

label

ETIM class

label

Housing material

value

Stainless steel

label

Surface protection housing

value

None

label

Material ball

value

Stainless steel

label

Material spindle

value

Stainless steel

label

Material primary spindle seal

value

Ethylene-propylene diene monomer rubber (EPDM)

label

Connection 1

value

Groove

label

With coupling connection 1

value

No

label

Connection 2

value

Groove

label

With coupling connection 2

value

No

label

Sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

Article compression class

value

PN 40

label

Flange compression class

value

PN 40

label

With drain valve

value

No

label

With drain possibility (connection)

value

No

label

With non-return valve

value

No

label

With filter

value

No

label

With thermometer

value

No

label

Model

value

Straight

label

With insulation shell

value

No

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Medium temperature (continuous)

value

-34°C - 110°C

label

Medium temperature (continuous) (imperial)

value

-29.2°F - 230°F

label

Medically clean

value

No

label

Grease-free

value

No

label

Operation

value

Lever handle

label

Full bore

value

Yes

label

Angle of the valve

value

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No
