VSH Shurjoint 3000 psi ring joint coupling (2 x ring joint)

group: RX-3000

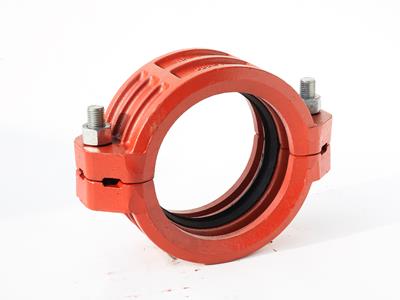

The Shurjoint Model RX-3000 coupling is a high-pressure ring joint coupling for use with Sch. 80, 120, or heavier wall carbon steel pipelines.

The coupling is comprised of two ductile iron heavy-wall housings, rubber gasket (EPDM or Nitrile), and two or four heat-treated track bolts and nuts which provide a fully restrained joint with maximum working pressure up to 3,000 psi (210 Bar) depending on the pipe used.
read more
read less

applications

no applications available

segments

no segments available

approvals

no approvals available

item

size

d1

DN1

l1

d2

DN2

l2

size

219.1 (DN200) orange

d1

219.1

DN1

DN200

l1

74

d2

219.1

DN2

DN200

l2

74

size

273 (DN250) orange

d1

273.0

DN1

DN250

l1

76

d2

273.0

DN2

DN250

l2

76

size

323.9 (DN300) orange

d1

323.9

DN1

DN300

l1

87

d2

323.9

DN2

DN300

l2

87

technical drawing for product

characteristics

color

orange

materials

(ASTM A536 65-45-12)

finishing

varnished

manufacturer

Shurjoint

shape

straight (0º)

connection type

groove (coupling)

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

country of origin

Taiwan

brand

VSH

series

Shurjoint Ring Joint

type

RX-3000

label

value

label

Material connection 1

value

Cast iron

label

Surface protection connection 1

value

Lacquered

label

Material connection 2

value

Cast iron

label

Surface protection connection 2

value

Lacquered

label

Shape

value

Straight

label

Model

value

2-part

label

Bend angle

value

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Ribbing groove (groove coupling)

label

Connection 2

value

Ribbing groove (groove coupling)

label

Main colour fitting

value

Orange

label

Medium temperature (continuous)

value

-34°C - 110°C

label

Medium temperature (continuous) (imperial)

value

-29.2°F - 230°F

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
