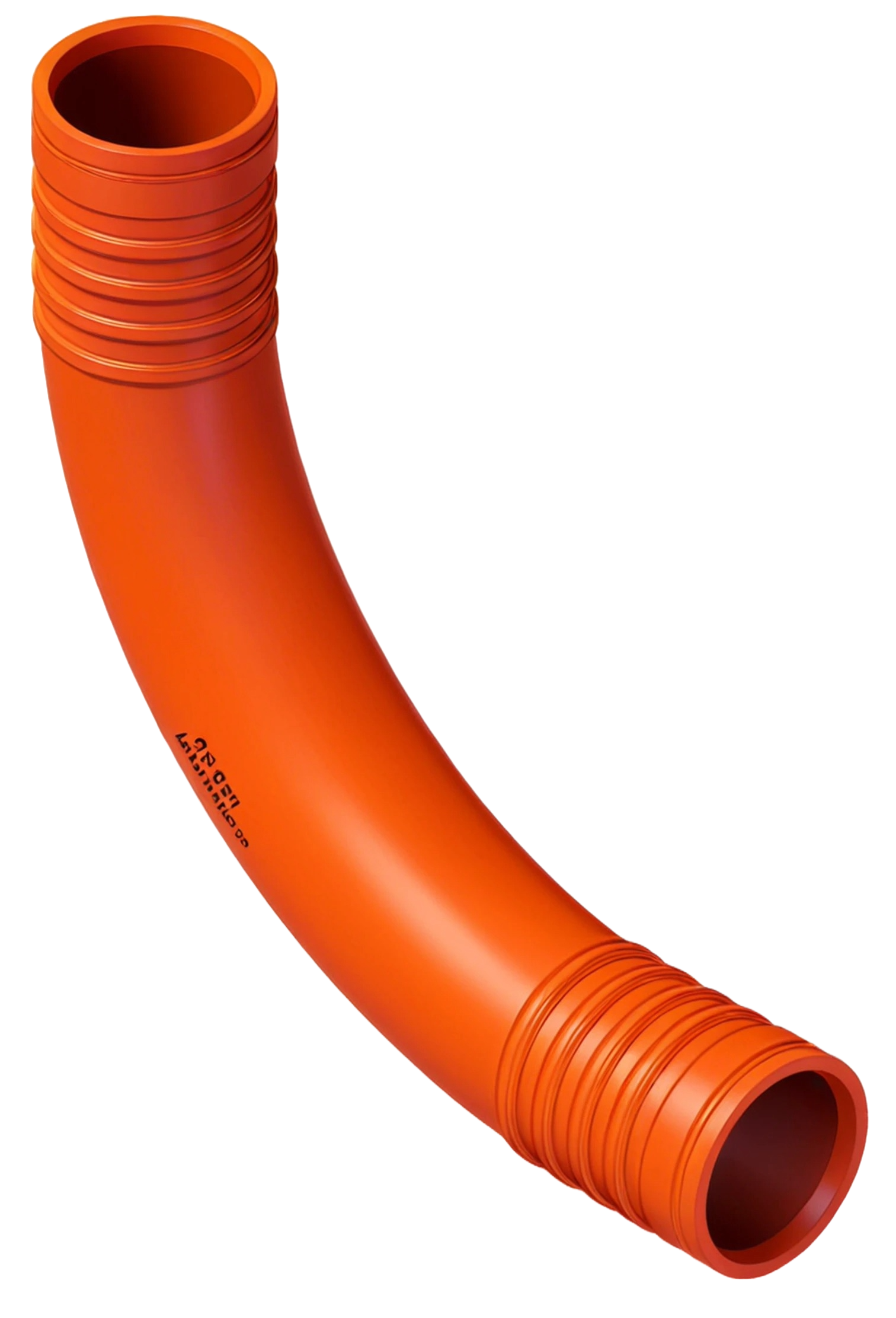

VSH Shurjoint cast 3D end-protection elbow, Sch. 80 (2 x cut groove)

group: L3D_EP

read more
read less

applications

no applications available

segments

no segments available

approvals

no approvals available

item

size

d1

DN1

l1

d2

DN2

l2

angle

size

168.3 (DN150) orange, Sch. 80

d1

168.3

DN1

DN150

l1

127

d2

168.3

DN2

DN150

l2

127

angle

6

size

168.3 (DN150) orange, Sch. 80

d1

168.3

DN1

DN150

l1

197

d2

168.3

DN2

DN150

l2

197

angle

11.25

size

168.3 (DN150) orange, Sch. 80

d1

168.3

DN1

DN150

l1

241

d2

168.3

DN2

DN150

l2

241

angle

22.5

size

168.3 (DN150) orange, Sch. 80

d1

168.3

DN1

DN150

l1

273

d2

168.3

DN2

DN150

l2

273

angle

30

size

168.3 (DN150) orange, Sch. 80

d1

168.3

DN1

DN150

l1

343

d2

168.3

DN2

DN150

l2

343

angle

45

size

168.3 (DN150) orange, Sch. 80

d1

168.3

DN1

DN150

l1

610

d2

168.3

DN2

DN150

l2

610

angle

90

size

219.1 (DN200) orange, Sch. 80

d1

219.1

DN1

DN200

l1

133

d2

219.1

DN2

DN200

l2

133

angle

6

size

219.1 (DN200) orange, Sch. 80

d1

219.1

DN1

DN200

l1

267

d2

219.1

DN2

DN200

l2

267

angle

11.25

size

219.1 (DN200) orange, Sch. 80

d1

219.1

DN1

DN200

l1

324

d2

219.1

DN2

DN200

l2

324

angle

22.5

size

219.1 (DN200) orange, Sch. 80

d1

219.1

DN1

DN200

l1

367

d2

219.1

DN2

DN200

l2

367

angle

30

size

219.1 (DN200) orange, Sch. 80

d1

219.1

DN1

DN200

l1

457

d2

219.1

DN2

DN200

l2

457

angle

45

size

219.1 (DN200) orange, Sch. 80

d1

219.1

DN1

DN200

l1

813

d2

219.1

DN2

DN200

l2

813

angle

90

technical drawing for product

characteristics

color

orange

materials

cast iron (ASTM A536 65-45-12)

finishing

varnished

shape

Elbow

connection type

groove (fitting)

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

country of origin

Taiwan

brand

VSH

series

Shurjoint

type

L3D_EP

label

value

label

Material connection 1

value

Cast iron

label

Surface protection connection 1

value

Lacquered

label

Material connection 2

value

Cast iron

label

Surface protection connection 2

value

Lacquered

label

Shape

value

Bend

label

Model

value

1-part

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Groove

label

Connection 2

value

Groove

label

Main colour fitting

value

Orange

label

With buffer stud

value

No

label

Length

value

0mm

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
