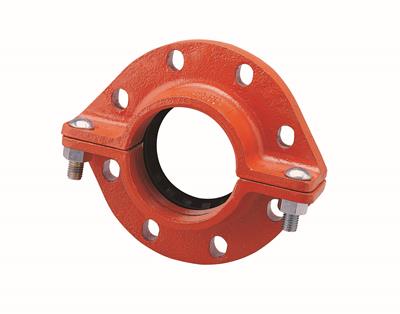

VSH Shurjoint HDPE flange adapter (clamp x flange), EPDM gasket

group: H312E

H312E is the designation for model H312 with a Grade E EPDM gasket. The VSH Shurjoint Model H312 HDPE flange adapter provides for the direct transition from HDPE pipe or fittings to ANSI class 125 or 150 flanged components. The H312 can be rotated for fast and easy bolt alignment prior to tightening. The gasket seals both on the outside of the pipe and to the flange face providing a leak-tight seal when secured in place.
read more
read less

applications

no applications available

segments

no segments available

approvals

no approvals available

item

size

d1

l1

d2

DN2

l2

DN1

size

63x60.3 orange ISO

d1

63.0

l1

40

d2

60.3

DN2

DN50

l2

40

DN1

size

90x88.9 orange ISO

d1

90.0

l1

40

d2

88.9

DN2

DN80

l2

40

DN1

size

88.9 (DN80) orange UNC

d1

88.9

l1

40

d2

88.9

DN2

DN80

l2

40

DN1

DN80

size

110x114.3 orange ISO

d1

110.0

l1

40

d2

114.3

DN2

DN100

l2

40

DN1

size

114.3 (DN100) orange UNC

d1

114.3

l1

40

d2

114.3

DN2

DN100

l2

40

DN1

DN100

size

160x165.1 orange ISO

d1

160.0

l1

48

d2

165.0

DN2

DN150

l2

48

DN1

size

168.3 (DN150) orange UNC

d1

168.3

l1

48

d2

168.3

DN2

DN150

l2

48

DN1

DN150

size

200x219.1 orange ISO

d1

200.0

l1

44

d2

219.1

DN2

DN200

l2

44

DN1

size

219.1 (DN200) orange UNC

d1

219.1

l1

44

d2

219.1

DN2

DN200

l2

44

DN1

DN200

size

250x273 orange ISO

d1

250.0

l1

54

d2

273.0

DN2

DN250

l2

54

DN1

size

273 (DN250) orange UNC

d1

273.0

l1

54

d2

273.0

DN2

DN250

l2

54

DN1

DN250

size

315x323.9 orange ISO

d1

315.0

l1

54

d2

323.9

DN2

DN300

l2

54

DN1

size

323.9 (DN300) orange UNC

d1

323.9

l1

54

d2

323.9

DN2

DN300

l2

54

DN1

DN300

technical drawing for product

characteristics

color

orange

materials

cast iron (ASTM A536 65-45-12)

finishing

varnished

connection type

groove (coupling), flange

sealing

EPDM

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

country of origin

Taiwan

brand

VSH

series

Shurjoint Plain-End

type

H312E

label

value

label

Material connection 1

value

Cast iron

label

Surface protection connection 1

value

Lacquered

label

Material connection 2

value

Cast iron

label

Surface protection connection 2

value

Lacquered

label

Shape

value

Straight

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Ribbing groove (groove coupling)

label

Connection 2

value

Flange

label

Main colour fitting

value

Orange

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

With buffer stud

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
