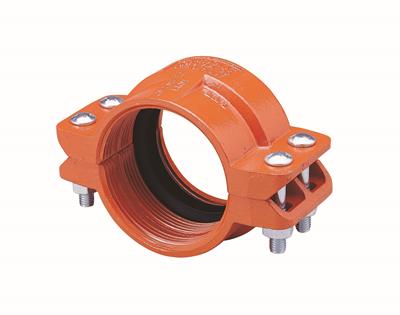

VSH Shurjoint HDPE transition coupling (clamp x groove), EPDM gasket

Product Image for VSH Shurjoint HDPE transition coupling (clamp x groove), EPDM gasket
Product Image for VSH Shurjoint HDPE transition coupling (clamp x groove), EPDM gasket

group: H307E

H307E is the designation for model H307 with a Grade E EPDM gasket. The VSH Shurjoint Model H307 HDPE transition coupling provides for a fast, easy and direct transition from HDPE pipe and/or fittings to grooved end steel pipe (IPS). The H307 couplings feature a four bolt housings and a combination of sharply machined teeth and a key section to form a leak-tight seal when secured to both pipes. Like the H305 the H307 also features a contoured housing with integral ramps along the outside diameter.VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality.
  • VSH Shurjoint can be perfectly combined with other VSH systems such as VSH XPress, VSH SudoPress and VSH PowerPress
  • the 'Aalberts integrated piping systems' range covers a fully integrated system from ¼" to 104"
    • read more
    read less

    applications

    no applications available

    segments

    no segments available

    approvals

    no approvals available

    • assortment
    • dimensions
    • specifications
    • downloads
    • ETIM

    code

    size

    dimensions

    weight

    packaging

    gtin

    code

    1H3070020E01

    size

    63x60.3 orange ISO

    dimensions

    73x146x86 mm

    weight

    2.02 kg

    packaging

    -

    gtin

    -

    code

    1H3070020S01

    size

    60.3 (2) orange UNC

    dimensions

    79x147x86

    weight

    2 kg

    packaging

    -

    gtin

    -

    code

    1H3070025E01

    size

    75x73 orange ISO

    dimensions

    73x159x97 mm

    weight

    1.66 kg

    packaging

    -

    gtin

    -

    code

    1H3070030E01

    size

    90x88.9 orange ISO

    dimensions

    73x178x114 mm

    weight

    2.72 kg

    packaging

    -

    gtin

    -

    code

    1H3070030S01

    size

    88.9 (3) orange UNC

    dimensions

    79x175x114

    weight

    2.7 kg

    packaging

    -

    gtin

    -

    code

    1H3070045E01

    size

    110x114.3 orange ISO

    dimensions

    76x203x144 mm

    weight

    3.82 kg

    packaging

    -

    gtin

    -

    code

    1H3070045S01

    size

    114.3 (4) orange UNC

    dimensions

    95x209x146

    weight

    3.8 kg

    packaging

    -

    gtin

    -

    code

    1H3070062E01

    size

    160x165.1 orange ISO

    dimensions

    76x254x194 mm

    weight

    5.7 kg

    packaging

    -

    gtin

    -

    code

    1H3070065E01

    size

    160x168.3 orange ISO

    dimensions

    76x257x198 mm

    weight

    5.7 kg

    packaging

    -

    gtin

    -

    code

    1H3070065S01

    size

    168.3 (6) orange UNC

    dimensions

    95x280x203

    weight

    5.7 kg

    packaging

    -

    gtin

    -

    code

    1H3070085E01

    size

    200x219.1 orange ISO

    dimensions

    85x321x256 mm

    weight

    9.75 kg

    packaging

    -

    gtin

    -

    code

    1H3070085S01

    size

    219.1 (DN200) orange

    dimensions

    108x342x267

    weight

    9.75 kg

    packaging

    -

    gtin

    -

    code

    1H30700A1E01

    size

    250x273 orange ISO

    dimensions

    97x394x321 mm

    weight

    16.06 kg

    packaging

    -

    gtin

    -

    code

    1H30700A1S01

    size

    273 (10) orange UNC

    dimensions

    127x424x321

    weight

    16.06 kg

    packaging

    -

    gtin

    -

    code

    1H30700A3E01

    size

    315x323.9 orange ISO

    dimensions

    97x451x375 mm

    weight

    19.6 kg

    packaging

    -

    gtin

    -

    code

    1H30700A3S01

    size

    323.9 (12) orange UNC

    dimensions

    127x483x375

    weight

    19.6 kg

    packaging

    -

    gtin

    -

    code

    size

    d1

    DN1

    l1

    d2

    DN2

    l2

    code

    1H3070020E01

    size

    63x60.3 orange ISO

    d1

    63.0

    DN1

    2"

    l1

    37

    d2

    60.3

    DN2

    2"

    l2

    37

    code

    1H3070020S01

    size

    60.3 (2) orange UNC

    d1

    60.3

    DN1

    2"

    l1

    40

    d2

    60.3

    DN2

    2"

    l2

    40

    code

    1H3070025E01

    size

    75x73 orange ISO

    d1

    75.0

    DN1

    2-1/2"

    l1

    37

    d2

    73.0

    DN2

    2-1/2"

    l2

    37

    code

    1H3070030E01

    size

    90x88.9 orange ISO

    d1

    90.0

    DN1

    3"

    l1

    37

    d2

    88.9

    DN2

    3"

    l2

    37

    code

    1H3070030S01

    size

    88.9 (3) orange UNC

    d1

    88.9

    DN1

    3"

    l1

    40

    d2

    88.9

    DN2

    3"

    l2

    40

    code

    1H3070045E01

    size

    110x114.3 orange ISO

    d1

    110.0

    DN1

    4"

    l1

    38

    d2

    114.3

    DN2

    4"

    l2

    38

    code

    1H3070045S01

    size

    114.3 (4) orange UNC

    d1

    114.3

    DN1

    4"

    l1

    48

    d2

    114.3

    DN2

    4"

    l2

    48

    code

    1H3070062E01

    size

    160x165.1 orange ISO

    d1

    160.0

    DN1

    6"

    l1

    38

    d2

    165.0

    DN2

    6"

    l2

    38

    code

    1H3070065E01

    size

    160x168.3 orange ISO

    d1

    160.0

    DN1

    6"

    l1

    38

    d2

    168.3

    DN2

    6"

    l2

    38

    code

    1H3070065S01

    size

    168.3 (6) orange UNC

    d1

    168.3

    DN1

    6"

    l1

    48

    d2

    168.3

    DN2

    6"

    l2

    48

    code

    1H3070085E01

    size

    200x219.1 orange ISO

    d1

    200.0

    DN1

    8"

    l1

    43

    d2

    219.1

    DN2

    8"

    l2

    43

    code

    1H3070085S01

    size

    219.1 (DN200) orange

    d1

    219.1

    DN1

    8"

    l1

    54

    d2

    219.1

    DN2

    8"

    l2

    54

    code

    1H30700A1E01

    size

    250x273 orange ISO

    d1

    250.0

    DN1

    10"

    l1

    49

    d2

    273.0

    DN2

    10"

    l2

    49

    code

    1H30700A1S01

    size

    273 (10) orange UNC

    d1

    273.0

    DN1

    10"

    l1

    64

    d2

    273.0

    DN2

    10"

    l2

    64

    code

    1H30700A3E01

    size

    315x323.9 orange ISO

    d1

    315.0

    DN1

    12"

    l1

    49

    d2

    323.9

    DN2

    12"

    l2

    49

    code

    1H30700A3S01

    size

    323.9 (12) orange UNC

    d1

    323.9

    DN1

    12"

    l1

    64

    d2

    323.9

    DN2

    12"

    l2

    64

    technical drawing for product

    product info

    item

    VSH Shurjoint HDPE transition coupling (clamp x groove), EPDM gasket

    item number with GTIN

    H307E

    manufacturer

    Shurjoint

    weight

    19.6 kg

    dimensions

    127x483x375

    characteristics

    color

    orange

    materials

    cast iron (ASTM A536 65-45-12)

    finishing

    varnished

    connection type

    groove (coupling)

    sealing

    EPDM

    general

    product group

    fittingen (demountable)

    ETIM class

    EC003024 Fitting with 2 connections

    country of origin

    Taiwan

    brand

    VSH

    series

    Shurjoint Plain-End

    type

    H307E

    image for H307

    image | jpg

    H307

    save to my IPS

    link to sheet | pdf

    MSDS_Shurjoint_Orange_paint

    save to my IPS
    image for Diagram

    diagram | png

    Diagram

    save to my IPS

    datasheet | pdf

    Datasheet

    save to my IPS

    installation- & maintenance document | pdf

    VSH Shurjoint Installation Handbook

    save to my IPS

    label

    value

    label

    etim-class

    value

    EC003024 Fitting with 2 connections

    label

    Material connection 1

    value

    Cast iron

    label

    Material quality connection 1

    value

    ASTM A536 Grade 65-45-12

    label

    Surface protection connection 1

    value

    Lacquered

    label

    Surface treatment connection 1

    value

    Other

    label

    Material connection 2

    value

    Cast iron

    label

    Material quality connection 2

    value

    ASTM A536 Grade 65-45-12

    label

    Surface protection connection 2

    value

    Lacquered

    label

    Surface treatment connection 2

    value

    Other

    label

    Shape

    value

    Straight

    label

    Reducing

    value

    No

    label

    Eccentric

    value

    No

    label

    System specific

    value

    No

    label

    Connection 1

    value

    Ribbing groove (groove coupling)

    label

    Connection 2

    value

    Ribbing groove (groove coupling)

    label

    Main colour fitting

    value

    Orange

    label

    Material sealing

    value

    Ethylene-propylene diene monomer rubber (EPDM)

    label

    With buffer stud

    value

    No

    label

    With thermal insulation

    value

    No

    label

    With sealing rings/gaskets

    value

    No

    label

    Capped

    value

    No

    label

    With connection indicator

    value

    No

    label

    With drain valve

    value

    No

    label

    With de-aerator

    value

    No

    label

    FM quality mark

    value

    No

    label

    LPCB quality mark

    value

    No

    label

    ULC quality mark

    value

    No

    label

    UL quality mark

    value

    No

    label

    VdS quality mark

    value

    No

    label

    DVGW quality mark for gas

    value

    No

    label

    DVGW quality mark for water

    value

    No

    label

    KIWA certified

    value

    No

    label

    Gastec QA mark

    value

    No

    label

    KOMO certified

    value

    No

    label

    Gastec QA - AR 214 (H2)

    value

    No
