C307

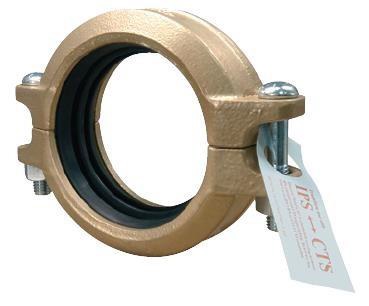

The Model C307 Transition Coupling provides for a direct connection between grooved end IPS steel pipe, fittings or valves and grooved end CTS copper tubing. The C307 is comprised of two ductile iron housings, pressure responsive rubber gasket and track bolts and nuts. The rubber gasket isolates the fluid from coupling housings and the epoxy coated housings help eliminate galvanic local cell and stray current problems.
applications
solutions
approvals
| code | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 1C3072020001 | 60.3 x 54 (2x2) Epoxy Gold | 0.85 kg | 46x127x84 mm | ||
| 1C3072525001 | 73 x 66.7 (2.5x2.5) Epoxy Gold | 1.02 kg | 46x142x99 mm | ||
| 1C3073030001 | 88.9 x 79.4 (3x3) Epoxy Gold | 1.38 kg | 46x162x116 mm | ||
| 1C3074545001 | 114.3 x 104.8 (4x4) Epoxy Gold | 1.86 kg | 47x170x145 mm | ||
| 1C3076565001 | 168.3 x 155.6 (6x6) Epoxy Gold | 3.24 kg | 50x269x204 mm |
| art. No | size | d1 | DN1 | l1 | d2 | DN2 | l2 |
|---|---|---|---|---|---|---|---|
| 1C3072020001 | 60.3 x 54 (2x2) Epoxy Gold | 60.3 | DN50 | 23 | 54.0 | DN50 | 23 |
| 1C3072525001 | 73 x 66.7 (2.5x2.5) Epoxy Gold | 73.0 | DN65 | 23 | 66.7 | DN65 | 23 |
| 1C3073030001 | 88.9 x 79.4 (3x3) Epoxy Gold | 88.9 | DN80 | 23 | 79.4 | DN80 | 23 |
| 1C3074545001 | 114.3 x 104.8 (4x4) Epoxy Gold | 114.3 | DN100 | 24 | 104.8 | DN100 | 24 |
| 1C3076565001 | 168.3 x 155.6 (6x6) Epoxy Gold | 168.3 | DN150 | 25 | 155.6 | DN150 | 25 |
| color | bronze |
|---|---|
| materials | cast iron (ASTM A536 65-45-12) |
| finishing | varnished |
| manufacturer | Shurjoint |
| connection type | groove (coupling) |
| sealing | EPDM |
| product group | fittings (demountable) |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint Copper |
| type | C307 |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Cast iron |
| Surface protection connection 1 | Lacquered |
| Material connection 2 | Cast iron |
| Surface protection connection 2 | Lacquered |
| Shape | Straight |
| Model | 2-part |
| Reducing | No |
| Eccentric | No |
| System specific | No |
| Connection 1 | Ribbing groove (groove coupling) |
| Connection 2 | Ribbing groove (groove coupling) |
| Main colour fitting | Bronze |
| Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
| With buffer stud | No |
| With thermal insulation | No |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
