VSH Shurjoint transition coupling IPS x JIS (2 x groove), EPDM gasket

group: 7771TE

read more
read less

applications

no applications available

segments

no segments available

approvals

no approvals available

item

size

d1

DN1

l1

d2

DN2

l2

size

219.1x216.3 red ISO

d1

219.1

DN1

DN200

l1

32

d2

216.3

DN2

DN200

l2

32

technical drawing for product

characteristics

color

red

materials

cast iron (ASTM A536 65-45-12)

finishing

varnished

shape

straight

connection type

groove (coupling)

sealing

EPDM

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

country of origin

Taiwan

brand

VSH

series

Shurjoint

type

7771TE

technical

max operating pressure liquid

20 bar

min. medium temperature

-34 °C

max medium temperature

110 °C

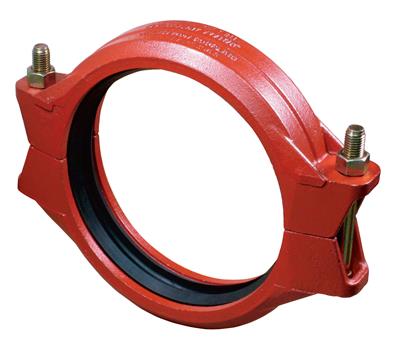

image for 7771T

image | jpg

7771T

submittal sheet | pdf

Datasheet

image for Diagram

diagram | jpg

Diagram

installation- & maintenance document | pdf

VSH Shurjoint Installation Handbook

label

value

label

Material connection 1

value

Cast iron

label

Surface protection connection 1

value

Lacquered

label

Material connection 2

value

Cast iron

label

Surface protection connection 2

value

Lacquered

label

Shape

value

Straight

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Nominal diameter connection 1

value

DN 200

label

Outer pipe diameter connection 1

value

219.1mm

label

Outer pipe diameter connection 1 (imperial)

value

8.63"

label

Connection 1

value

Ribbing groove (groove coupling)

label

Nominal diameter connection 2

value

DN 200

label

Outer pipe diameter connection 2

value

216.3mm

label

Outer pipe diameter connection 2 (imperial)

value

8.52"

label

Connection 2

value

Ribbing groove (groove coupling)

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

With buffer stud

value

No

label

Length

value

63mm

label

Length of connection 1

value

31.5mm

label

Length of connection 1 (imperial)

value

1.24"

label

Length of connection 2

value

31.5mm

label

Length of connection 2 (imperial)

value

1.24"

label

Medium temperature (continuous)

value

-34°C - 110°C

label

Medium temperature (continuous) (imperial)

value

-29.2°F - 230°F

label

Max. operating pressure at 20 °C

value

20bar

label

Max. operating pressure at 20 °C (imperial)

value

290.08psi

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
