7707T

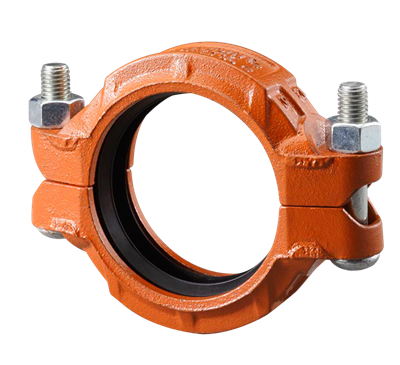

7707T is the designation for model 7707 with a Grade T NBR gasket. The VSH Shurjoint Model 7707 Flexible Coupling is designed for use in a variety of general piping applications of moderate or high pressure services. Working pressure is usually dictated by the wall thickness and rating of the pipe being used. The Model 7707 couplings feature flexibility that can accommodate misalignment, distortion, thermal stress, vibration and noise and also resist seismic tremors. The utilization of Model 7707 couplings can accommodate a curved layout.
applications
solutions
| code | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 177070010004 | 33.4 (DN25) orange UNC | 0.75 kg | 46x102x61 mm | ||
| 177070015004 | 48.3 (DN40) orange UNC | 0.95 kg | 46x116x76 mm | ||
| 177070020004 | 60.3 (DN50) orange UNC | 1.2 kg | 46x136x90 mm | ||
| 177070025004 | 73 (DN65) orange UNC | 1.3 kg | 47x152x102 mm | ||
| 177070030004 | 88.9 (DN80) orange UNC | 1.5 kg | 47x161x124 mm | ||
| 177070045004 | 114.3 (DN100) orange UNC | 2.4 kg | 52x204x157 mm | ||
| 177070055009 | 141.3 (DN125) orange UNC | 4.4 kg | 53x245x186 mm | ||
| 177070065004 | 168.3 (DN150) orange UNC | 4.24 kg | 53x274x214 mm | ||
| 177070085009 | 219.1 (DN200) orange UNC | 9.06 kg | 62x336x276 mm | ||
| 1770700A1009 | 273 (DN250) orange UNC | 12.4 kg | 65x409x343 mm | ||
| 1770700A3009 | 323.9 (DN300) orange UNC | 13.8 kg | 66x470x390 mm |
| art. No | size | d1 | DN1 | l1 | z1 | d2 | DN2 | l2 | z2 |
|---|---|---|---|---|---|---|---|---|---|
| 177070010004 | 33.4 (DN25) orange UNC | 33.4 | DN25 | 23 | 1 | 33.4 | DN25 | 23 | 1 |
| 177070015004 | 48.3 (DN40) orange UNC | 48.3 | DN40 | 23 | 1 | 48.3 | DN40 | 23 | 1 |
| 177070020004 | 60.3 (DN50) orange UNC | 60.3 | DN50 | 23 | 1 | 60.3 | DN50 | 23 | 1 |
| 177070025004 | 73 (DN65) orange UNC | 73.0 | DN65 | 24 | 1 | 73.0 | DN65 | 24 | 1 |
| 177070030004 | 88.9 (DN80) orange UNC | 88.9 | DN80 | 24 | 1 | 88.9 | DN80 | 24 | 1 |
| 177070045004 | 114.3 (DN100) orange UNC | 114.3 | DN100 | 26 | 2 | 114.3 | DN100 | 26 | 2 |
| 177070055009 | 141.3 (DN125) orange UNC | 141.3 | DN125 | 27 | 2 | 141.3 | DN125 | 27 | 2 |
| 177070065004 | 168.3 (DN150) orange UNC | 168.3 | DN150 | 27 | 2 | 168.3 | DN150 | 27 | 2 |
| 177070085009 | 219.1 (DN200) orange UNC | 219.1 | DN200 | 31 | 2 | 219.1 | DN200 | 31 | 2 |
| 1770700A1009 | 273 (DN250) orange UNC | 273.0 | DN250 | 33 | 2 | 273.0 | DN250 | 33 | 2 |
| 1770700A3009 | 323.9 (DN300) orange UNC | 323.9 | DN300 | 33 | 2 | 323.9 | DN300 | 33 | 2 |
| color | orange |
|---|---|
| materials | ductile iron (ASTM A536 65-45-12, NBR (Nitril)) |
| finishing | varnished |
| manufacturer | Shurjoint |
| shape | straight (0º) |
| connection type | groove (coupling) |
| sealing | NBR (Nitrile) |
| product group | fittings (demountable) |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| intrastat code | 73071910 |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| type | 7707T |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Cast iron |
| Surface protection connection 1 | Lacquered |
| Material connection 2 | Cast iron |
| Surface protection connection 2 | Lacquered |
| Shape | Straight |
| Bend angle | 0° |
| Reducing | No |
| Eccentric | No |
| System-specific | No |
| Connection 1 | Ribbing groove (groove coupling) |
| Connection 2 | Ribbing groove (groove coupling) |
| Main colour fitting | Orange |
| Material sealing | NBR (nitrile rubber) |
| With buffer stud | No |
| Medium temperature (continuous) | -29°C - 82°C |
| Medium temperature (continuous) (imperial) | -20.2°F - 179.6°F |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
