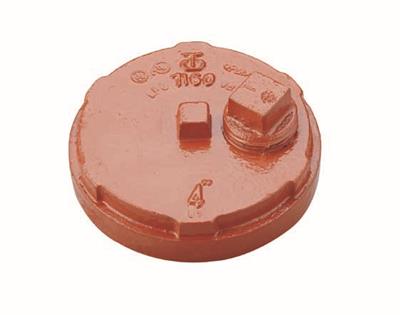

VSH Shurjoint end cap with plug (groove x female thread)

Product Image for VSH Shurjoint end cap with plug (groove x female thread)
Product Image for VSH Shurjoint end cap with plug (groove x female thread)

group: 7160P

Shurjoint grooved-end fittings are made of ductile iron per ASTM A536 Gr. 65-45-12. E-E dimensions are manufacturer’s standard.Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.
read more
read less

applications

no applications available

segments

no segments available

approvals

no approvals available

  • assortment
  • dimensions
  • specifications
  • downloads
  • ETIM

code

size

dimensions

weight

packaging

gtin

code

1160P2005001

size

2"xFNPT1/2" orange

dimensions

60x60x24 mm

weight

0.3 kg

packaging

-

gtin

-

code

1160P2005002

size

60.3xRc1/2 red

dimensions

60x60x24 mm

weight

0.3 kg

packaging

-

gtin

-

code

1160P2010001

size

2"xFNPT1" orange

dimensions

60x60x24 mm

weight

0.3 kg

packaging

-

gtin

-

code

1160P2505001

size

2 1/2"xFNPT1/2" orange

dimensions

73x73x24 mm

weight

0.4 kg

packaging

-

gtin

-

code

1160P2505002

size

73xRc1/2 red

dimensions

73x73x24 mm

weight

0.4 kg

packaging

-

gtin

-

code

1160P2510001

size

2 1/2"xFNPT1" orange

dimensions

73x73x24 mm

weight

0.4 kg

packaging

-

gtin

-

code

1160P2905002

size

76.1xRc1/2 red

dimensions

76x76x24 mm

weight

0.4 kg

packaging

-

gtin

-

code

1160P3005001

size

3"xFNPT1/2" orange

dimensions

89x89x25 mm

weight

0.7 kg

packaging

-

gtin

-

code

1160P3005002

size

88.9xRc1/2 red

dimensions

89x89x25 mm

weight

0.7 kg

packaging

-

gtin

-

code

1160P3007005

size

88.9xFNPT3/4 orange

dimensions

89x89x25 mm

weight

0.7 kg

packaging

-

gtin

-

code

1160P3010001

size

3"xFNPT1" orange

dimensions

89x89x25 mm

weight

0.7 kg

packaging

-

gtin

-

code

1160P4505001

size

4"xFNPT1/2" orange

dimensions

114x114x25 mm

weight

1 kg

packaging

-

gtin

-

code

1160P4505002

size

114.3xRc1/2 red

dimensions

114x114x25 mm

weight

1 kg

packaging

-

gtin

-

code

1160P4510001

size

4"xFNPT1" orange

dimensions

114x114x25 mm

weight

1.07 kg

packaging

-

gtin

-

code

1160P4510002

size

114.3xRc1 red

dimensions

114x114x25 mm

weight

1.07 kg

packaging

-

gtin

-

code

1160P5510001

size

5"xFNPT1" orange

dimensions

114x114x25 mm

weight

1.7 kg

packaging

-

gtin

-

code

1160P6205002

size

165.1xRc1/2 red

dimensions

165x165x25 mm

weight

2.7 kg

packaging

-

gtin

-

code

1160P6210002

size

165.1xRc1 red

dimensions

165x165x25 mm

weight

2.7 kg

packaging

-

gtin

-

code

1160P6510001

size

6"xFNPT1" orange

dimensions

168x168x25 mm

weight

2.7 kg

packaging

-

gtin

-

code

1160P6510002

size

168.3xRc1 red

dimensions

168x168x25 mm

weight

2.7 kg

packaging

-

gtin

-

code

1160P8510001

size

8"xFNPT1" orange

dimensions

219x219x30 mm

weight

4.6 kg

packaging

-

gtin

-

code

1160P8515001

size

8"xFNPT1 1/2" orange

dimensions

219x219x30 mm

weight

4.77 kg

packaging

-

gtin

-

code

1160P8515002

size

219.1xRc1 1/2 red

dimensions

219x219x30 mm

weight

4.77 kg

packaging

-

gtin

-

code

1160PA110001

size

273xFNPT1 orange

dimensions

273x273x32 mm

weight

7.21 kg

packaging

-

gtin

-

code

1160PA110003

size

273xFNPT1 galvanized

dimensions

273x273x32 mm

weight

7.21 kg

packaging

-

gtin

-

code

1160PA115001

size

10"xFNPT1 1/2" orange

dimensions

273x273x32 mm

weight

7.12 kg

packaging

-

gtin

-

code

1160PA310001

size

323.9xFNPT1 orange

dimensions

324x324x32 mm

weight

10.34 kg

packaging

-

gtin

-

code

1160PA315001

size

12"xFNPT1 1/2" orange

dimensions

324x324x32 mm

weight

10.17 kg

packaging

-

gtin

-

code

size

d1

DN1

d2

DN2

l2

code

1160P2005001

size

2"xFNPT1/2" orange

d1

60.3

DN1

2"

d2

21.3

DN2

1/2"

l2

25

code

1160P2005002

size

60.3xRc1/2 red

d1

60.3

DN1

2"

d2

21.3

DN2

1/2"

l2

25

code

1160P2010001

size

2"xFNPT1" orange

d1

60.3

DN1

2"

d2

33.4

DN2

1"

l2

25

code

1160P2505001

size

2 1/2"xFNPT1/2" orange

d1

73.0

DN1

-

d2

21.3

DN2

1/2"

l2

25

code

1160P2505002

size

73xRc1/2 red

d1

73.0

DN1

-

d2

21.3

DN2

1/2"

l2

25

code

1160P2510001

size

2 1/2"xFNPT1" orange

d1

73.0

DN1

-

d2

33.4

DN2

1"

l2

25

code

1160P2905002

size

76.1xRc1/2 red

d1

76.1

DN1

2-1/2"

d2

21.3

DN2

1/2"

l2

25

code

1160P3005001

size

3"xFNPT1/2" orange

d1

88.9

DN1

3"

d2

21.3

DN2

1/2"

l2

25

code

1160P3005002

size

88.9xRc1/2 red

d1

88.9

DN1

3"

d2

21.3

DN2

1/2"

l2

25

code

1160P3007005

size

88.9xFNPT3/4 orange

d1

88.9

DN1

3"

d2

26.7

DN2

3/4"

l2

25

code

1160P3010001

size

3"xFNPT1" orange

d1

88.9

DN1

3"

d2

33.4

DN2

1"

l2

25

code

1160P4505001

size

4"xFNPT1/2" orange

d1

114.3

DN1

4"

d2

21.3

DN2

1/2"

l2

25

code

1160P4505002

size

114.3xRc1/2 red

d1

114.3

DN1

4"

d2

21.3

DN2

1/2"

l2

25

code

1160P4510001

size

4"xFNPT1" orange

d1

114.3

DN1

4"

d2

33.4

DN2

1"

l2

25

code

1160P4510002

size

114.3xRc1 red

d1

114.3

DN1

4"

d2

33.4

DN2

1"

l2

25

code

1160P5510001

size

5"xFNPT1" orange

d1

114.3

DN1

4"

d2

33.4

DN2

1"

l2

25

code

1160P6205002

size

165.1xRc1/2 red

d1

165.1

DN1

6"

d2

21.3

DN2

1/2"

l2

25

code

1160P6210002

size

165.1xRc1 red

d1

165.1

DN1

6"

d2

33.4

DN2

1"

l2

25

code

1160P6510001

size

6"xFNPT1" orange

d1

168.3

DN1

6"

d2

33.4

DN2

1"

l2

25

code

1160P6510002

size

168.3xRc1 red

d1

168.3

DN1

6"

d2

33.4

DN2

1"

l2

25

code

1160P8510001

size

8"xFNPT1" orange

d1

219.1

DN1

8"

d2

33.4

DN2

1"

l2

30

code

1160P8515001

size

8"xFNPT1 1/2" orange

d1

219.1

DN1

8"

d2

48.3

DN2

1-1/2"

l2

30

code

1160P8515002

size

219.1xRc1 1/2 red

d1

219.1

DN1

8"

d2

48.3

DN2

1-1/2"

l2

30

code

1160PA110001

size

273xFNPT1 orange

d1

273.0

DN1

-

d2

33.4

DN2

1"

l2

32

code

1160PA110003

size

273xFNPT1 galvanized

d1

273.0

DN1

-

d2

33.4

DN2

1"

l2

32

code

1160PA115001

size

10"xFNPT1 1/2" orange

d1

273.0

DN1

-

d2

48.3

DN2

1-1/2"

l2

32

code

1160PA310001

size

323.9xFNPT1 orange

d1

323.9

DN1

-

d2

33.4

DN2

1"

l2

32

code

1160PA315001

size

12"xFNPT1 1/2" orange

d1

323.9

DN1

-

d2

48.3

DN2

1-1/2"

l2

32

technical drawing for product

product info

item

VSH Shurjoint end cap with plug (groove x female thread)

item number with GTIN

7160P

manufacturer

Shurjoint

weight

10.17 kg

dimensions

324x324x32 mm

characteristics

color

orange, red, silver

materials

cast iron (ASTM A536 65-45-12)

finishing

varnished, hot dip galvanized

shape

straight, reducer, Excentric

connection type

groove (fitting)

general

product group

fittingen (demountable)

ETIM class

EC003024 Fitting with 2 connections

intrastat code

73071910

country of origin

Taiwan

brand

VSH

series

Shurjoint

type

7160P

image for 7160P

image | jpg

7160P

save to my IPS

datasheet | pdf

Datasheet

save to my IPS

installation- & maintenance document | pdf

VSH Shurjoint Installation Handbook

save to my IPS

link to sheet | pdf

MSDS_Shurjoint_Orange_paint

save to my IPS

label

value

label

etim-class

value

EC003024 Fitting with 2 connections

label

Material connection 1

value

Cast iron

label

Material quality connection 1

value

ASTM A536 Grade 65-45-12

label

Material connection 2

value

Cast iron

label

Material quality connection 2

value

ASTM A536 Grade 65-45-12

label

Shape

value

Straight

label

Model

value

1-part

label

Bend angle

value

label

Reducing

value

Yes

label

Eccentric

value

Yes

label

System specific

value

No

label

Connection 1

value

Groove

label

With buffer stud

value

No

label

High tensile strength

value

Yes

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
