group: 7114

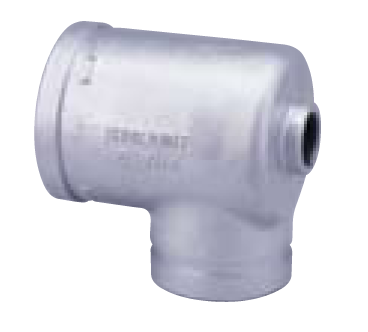

The Model 7114 Hydrant Elbow is designed for use on fire protection systems. The small end of the elbow is 2½" BSP threaded and also grooved to 3" pipe size. The boss can be factory tapped to 1" BSP on request.
no applications available
no solutions available
no approvals available
| code | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 171144530003 | 114.3x88.9 / Rc2 1/2 w/ FNPT1 tapgalvanized | 2.7 kg | 152x114x146 mm |

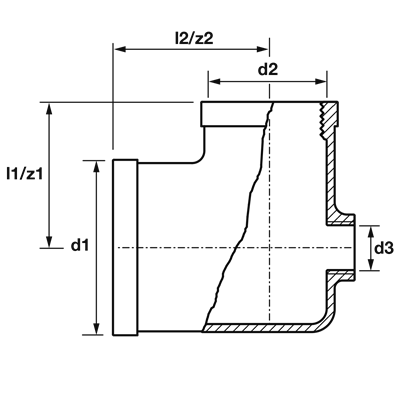

| art. No | size | d1 | DN1 | l1 | d2 | DN2 | l2 | d3 | DN3 | angle |
|---|---|---|---|---|---|---|---|---|---|---|
| 171144530003 | 114.3x88.9 / Rc2 1/2 w/ FNPT1 tapgalvanized | 114.3 | DN100 | 102 | 88.9 | DN80 | 95 | 33.4 | DN25 | 90 |
| color | silver |
|---|---|
| materials | cast iron (ASTM A536 65-45-12) |
| finishing | galvanised |
| manufacturer | Shurjoint |
| shape | Elbow (90º) |
| connection type | groove (fitting), FPT - female thread conical (NPT) |
| product group | fittings (demountable) |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| type | 7114 |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Cast iron |
| Surface protection connection 1 | Galvanic/electrolytic zinc plated |
| Material connection 2 | Cast iron |
| Surface protection connection 2 | Galvanic/electrolytic zinc plated |
| Shape | Bend |
| Model | 1-part |
| Bend angle | 90° |
| Reducing | No |
| Eccentric | No |
| System specific | No |
| Nominal diameter connection 1 | DN 100 |
| Outer pipe diameter connection 1 | 114.3mm |
| Outer pipe diameter connection 1 (imperial) | 4.5" |
| Connection 1 | Groove |
| Nominal diameter connection 2 | DN 80 |
| Outer pipe diameter connection 2 | 88.9mm |
| Outer pipe diameter connection 2 (imperial) | 3.5" |
| Connection 2 | Groove |
| Main colour fitting | Grey |
| With buffer stud | No |
| Length | 152.15mm |
| Length of connection 1 | 102mm |
| Length of connection 1 (imperial) | 4.02" |
| Length of connection 2 | 95mm |
| Length of connection 2 (imperial) | 3.74" |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
| Gastec QA - AR 214 (H2) | No |
